Technical parameters & characteristic :
1) Working environment:
- The environment temperature:-5℃~/40℃
- The rated voltage：100V~~250V
- Rated current：10A、13A、16A、20A
2) Characteristic:
|
1 |
Model |
HTD-28 |
6 |
HS Code |
8536690000 |
|
2 |
Brand Name |
Safewire or OEM brand |
7 |
Market standard |
Customized |
|
3 |
Type |
floor socket |
8 |
Place of origin |
Zhejiang , Wenzhou, China |
|
4 |
Color |
Golden, silver |
9 |
Frequency |
50Hz~60Hz |
|
5 |
Grounding |
Standard grounding |
10 |
Current Type |
AC |
3) Technical parameters :

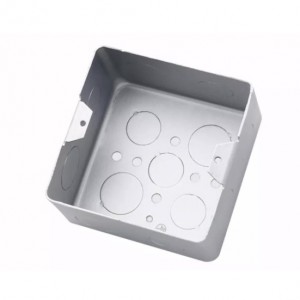

| Serial No. | Parameter | Description |
| 1 | Panel Material | Brass alloy/Alu alloy |
| 2 | Surface finish | Wire drawing/Polishing/Spray painting |
| 3 | Panel Dimension(mm) | 154*146 |
| 4 | Cutout(mm) | 123x123 |
| 5 | Capacity of modules | 4 ways modules |
| 6 | Bracket material | Zinc Alloy & Alu Alloy |
| 7 | Sink box Thickness | 1.2mm |
| 8 | Sink box Material | Steel+Zinc plated |
| 9 | Available modules | 45*45/45*22.5(mm) |
| 10 | Damping device (DP) | Normal Pop-up & Soft Pop-up available |
| 11 | N.W(kg) | 1.50 (Brass alloy);1.20(Alu alloy) |
| 12 | G.W(kg) | 18.6 (Brass alloy);14.6(Alu alloy) |
| 13 | Carton size(cm) | 49x32x22 |
Features:
- More outlet capacity: double power socket or one power socket + RJ45 computer +RJ11 telephone/2.1A USB charger.
- Reliable press button:＞5000 times.
- 3 Durable receptacle: Elastic phosphor copper ,high conductivity, pulling and plugging > 15000 times.

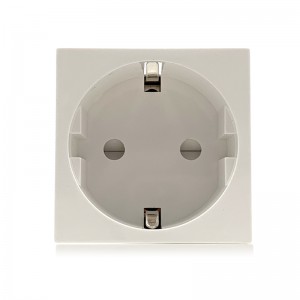

Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
Installation Guide
- Cut out size ：123*123mm.Install the bottom box with panel into the specified location.
- Screw mounting frame and panel(for desktop only).
- Fix the panel and bottom box with screws(This item is for ground installation only).
- ADjust the tightness of all wiring lines (no influence on opening).
Attentions:
1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.
2.The sealing ring is closely attached to the smooth surface to prevent water leakage.
3.Prevent from alkaline corrosion and humidity.
4.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
5.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
Safety Warning：
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete floor.
1.Office and education
2.Industry and Engineering
3.Presentation and retail;
4.Orientation and safety;
5.Transit areas and parking;
6.Hotels, hospitality and wellness;
7.Health, sport and leisure;
8.Art and culture;
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
