Side Mounting Socket

Side Mounting Socket Featured Image

Short Description:

Port: Wenjiang

Send email to us Download Product datasheet

Technical Parameters

Features

Outline drawing

LVD test report

Outline drawing

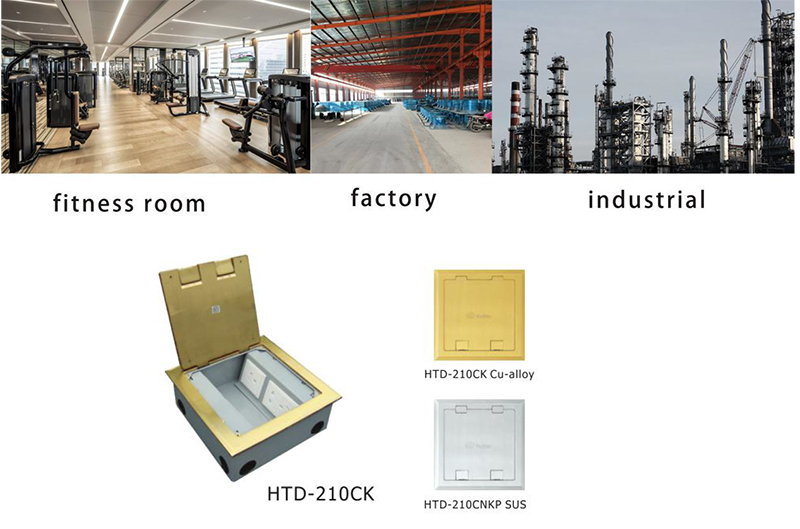

Application

Product Tags

Quick Details:

Serial No.	Parameter	Description
1	Safewire item	HTD-210CK
2	Surface finish	Wire drawing/Polishing/Spray painting
3	Panel Dimension(mm)	210*210
4	Cutout(mm)	198x198
5	Capacity of modules	10 ways modules
6	Mounting type	Declining installation
7	Sink box Material	Steel+Zinc plated
8	Base box dimension(mm)	19019075
9	Available modules	4545/4522.5(mm)

Application:

1.Feature of Safewire floorbox:

1.Customzation design & production: ODM & OEM as per samples or drawing by each of us.

2.Supply with SKD parts or finished products, save cost: save cost, save money for you!

3.Flush-mounting & Recess-mounting in Access floor & Recess floor

2.Advantage of Safewire floorbox :

1.Patent Retractable cable entry design:

2.More affordable MOQ less than 100 units:

3.More internation socket , multimedia and Data accessories :

3.Specification of Safewire floorbox :

A) .Product dimension:

B) Available installation modules/socket/accessories:

Previous: Golden Color Golden Color/Electrical Outlet / Power Receptacle/Service Electrical Outlet

Next: Medium Base Sockets Pop up Outlet box wall reticulation

1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .

2.More plug top clearance:side-mounting installation of frame/ modules.

3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .

4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.

Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
