HTD-2602

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Features

    Installation Guide

    Application

    Product Tags

    Technical parameters & characteristic :

    1) Working environment:

    1. The environment temperature:-5~/40
    2. The rated voltage100V~~250V
    3. Rated current10A13A16A20A

     Characteristic:

    1

    Model

    HTD-2602

    6

    HS Code

    8536690000

    2

    Brand Name

    Safewire or OEM brand

    7

    Market standard

    Customized

    3

    Type

    floor socket

    8

    Place of origin

    Zhejiang ,  Wenzhou, China

    4

    Color

    Golden, silver

    9

    Frequency

    50Hz~60Hz

    5

    Grounding

    Standard grounding

    10

    Current Type

    AC

    Technical parameters :

    Serial No. Parameter Description
    1 Panel Material Brass alloy/Alu alloy
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 270*147*8.7
    4 Cutout(mm) 253*128
    5 Capacity of modules 8 ways modules
    6 Bracket material Zinc Alloy & Alu Alloy
    7 Sink box Thickness 1.2mm
    8 Sink box Material Steel+Zinc plated
    9 Available modules

    45*45mm or 45*22.5mm

    10 Damping device (DP) Normal Pop-up & Soft Pop-up available

  • Previous:
  • Next:

  • Features

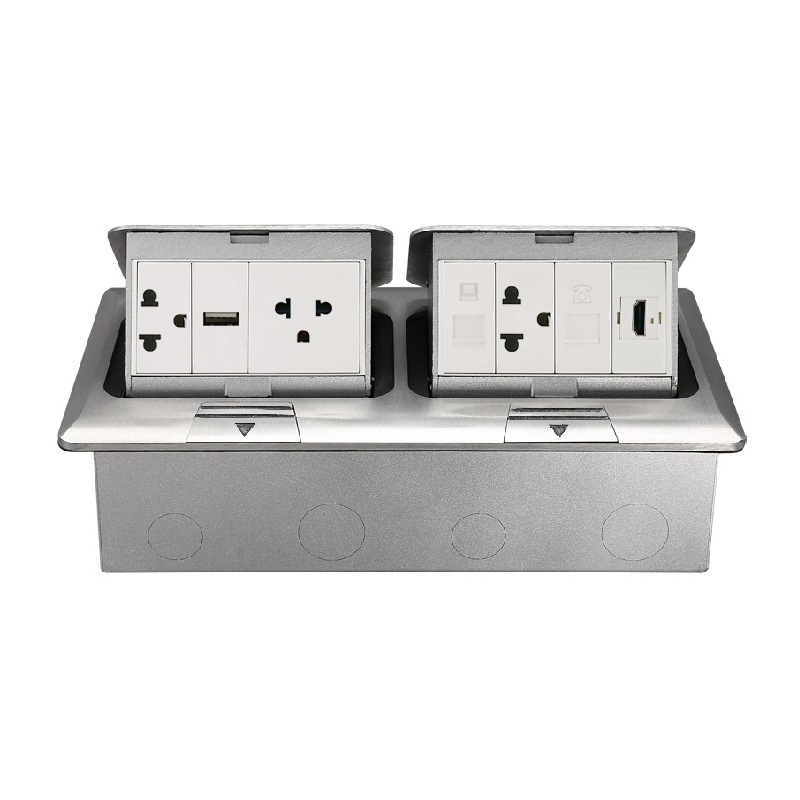

    1. Duplex receptacle with power socket and network.
    2. With 2*Patent damping device, more soft speed.
    3. Silver and brass clor surface finish are optional.

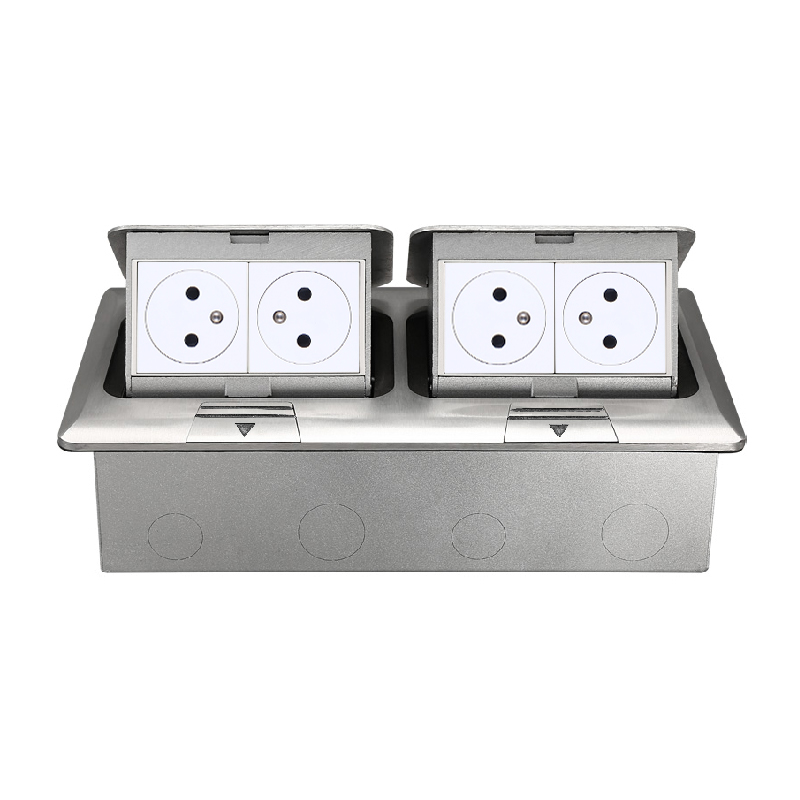

    Available for 45*45mm type international sockets or modules types:

    138cb01bff0a044b2f6b6039d3011e9

    Installation GuideThe exact products should be subject to confirmation by seller

    Hold the lid down with your hand,Pull the push button as the direction, Panel popup.

     1.Remove panel from the bottom box along with the electrical modules.

    2.Fix the flooring with spare screws on bottom box and place it in embedded hole.

    3.The flooring surface shall be at least level with the ground or 20mm below the ground.

    4.Remove lid surface ,Insert the 10–12mm lead head into the terminal of floor box.

    5.Fix the panel to the bottom box with screws.

    Attentions:

    1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.

    2.The sealing ring is closely attached to the smooth surface to prevent water leakage.

    3.Prevent from alkaline corrosion and humidity.

    4.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.

    5.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).

    Safety Warning

    1.This is a class I product and must be earthed

    2.This product must be installed/wired by a qualified electrician

    3.For indoor use only.

    4.For concrete floor.
