| Serial No. | Parameter | Description |
| 1 | Product module | F5 |
| 2 | Panel Material | PC 94-V0 |
| 3 | Inside material | Tin phosphorous bronze |
| 4 | Surface finish | Glossy |
| 5 | Input voltage | 250v/AC 50~60Hz |
| 6 | Rated current | 10A |
| 7 | Color | customization |

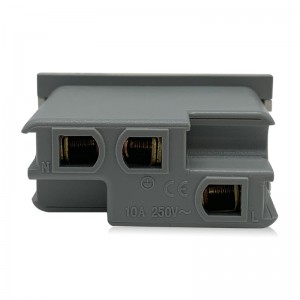

| 8 | Number of terminals | 2 screw terminals |

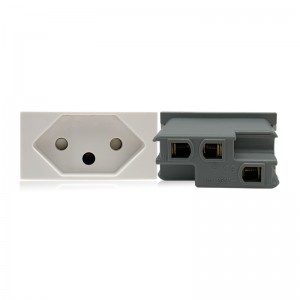

| 9 | Outlet | Switzerland SEV sockets |
| 10 | IK degree of protection | IK04 |
| 11 | IP degree of protection | IP21 |
| 12 | Dimension of product | 22.5*45mm |
Environmental requirements
| Serial No. | Parameter | Description |
| 1 | Operating temperature | -10℃~+40℃;Operating |
| 2 | humidity | 20%~90% RH |
| 3 | Storage temperature | -20℃~+85℃;storage |
| 4 | humidity | 10%~95% RH |
| 5 | Resistance to pressure | ≥3Kv/AC 1min |
| 6 | Isolation resistance | 500v DC/100MΩ |
Application:
1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.
2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules：
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
2.More color with affordable MOQ.
3.CE Certificated and supply with support,frame and coverplate accessories etc.
3.Specification of Safewire IP44 pop up 45×45mm modules:
Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket
A)catagories of Safewire’s 45×45mm modules :
B)Safewire’s 45×45mm modules in cable management.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances:
1.tooless installation.
2.Single，double，triple，multi-socket using the connection block.
3.With optional safety key .
4.With red，green，white finish for UPS，health sector or specific power supply.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances.
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
