Screwless Single Double Triple 45X45mm French Module Angle Schuko Socket/Electrical Outlet with Connector

Short Description:


  • Port: Wenjiang
  • Technical Parameters


    Outline drawing

    Installation Process

    Product Tags

    USB Characteristic:

    Serial No. Parameter Description
    1 Panel Material PC 94-V0
    2 Inside material Tin phosphorous bronze
    3 Surface finish Glossy
    4 Input voltage 100~240v/AC 50~60Hz
    5 Color White /Black/Red
    6 Number of terminals 2 screw terminals
    7 Outlet French socket
    8 IK degree of protection IK04
    9 IP degree of protection IP21
    10 Dimension of product 45*45mm
    11 With safety shutter XJY-QB-45A
    12 Without safety shutter XJY-QB-45

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10℃~+40℃;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure ≥3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ


  • Previous:
  • Next:

  • 1.tooless installation.

    2.Single,double,triple,multi-socket using the connection block.

    3.With optional safety key.

    4.With red,green,white finish for UPS,health sector or specific power supply.

     Safewire Datasheet 45 type  Safety shutter multi-sockets XJY-QB-45-1-2-3 M191227-4




    Safewire Datasheet 45 type  Safety shutter multi-sockets XJY-QB-45-1-2-3 M191227-7

    Safewire Datasheet 45 type  Safety shutter multi-sockets XJY-QB-45-1-2-3 M191227-8

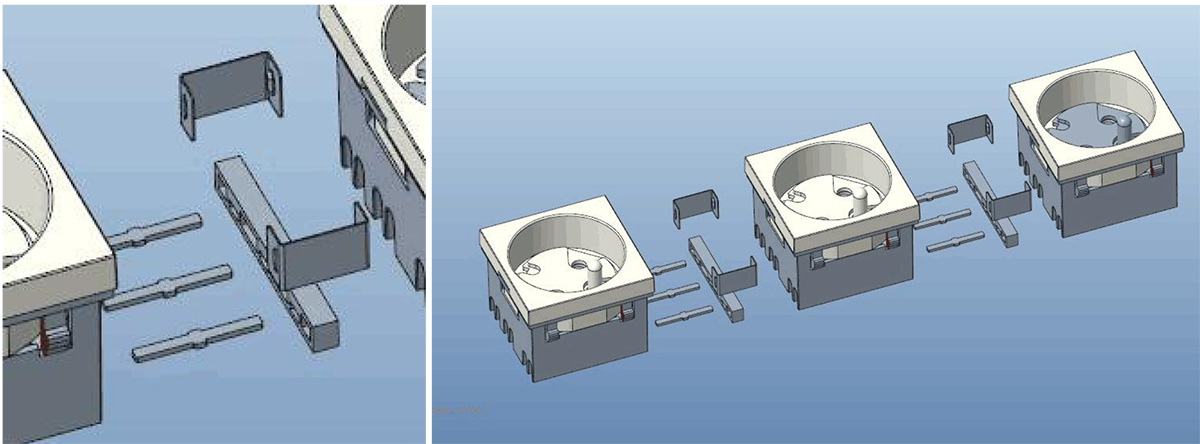

    1.Insert the connection block in the contacts of the socket.

    2.Assembly of multi-sockets using the connection block press until the connection blocks is completely inserted in the contacts.

    3.Repeat the process with the next socket and then with the others.

    Safety Warning:

    1.For indoor use only.

    2.This product must be installed/wired by a qualified electrician.


    1.Protect children from touch skirt of USB port.

    2.Ensure current and voltage as rating current/voltage .Do not overload

    3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
