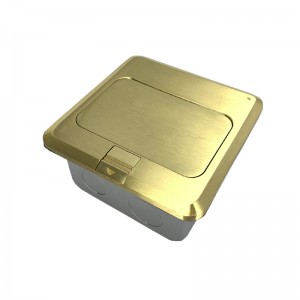

HTD-1

Short Description:


  • Port: Wenjiang
  • Technical Parameters

    Features

    Outline drawing

    LVD test report

    Application

    Video

    Product Tags

    Serial No.

    Parameter

    Description

    1 Panel Material Brass alloy/Alu alloy
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 120*120
    4 Cutout(mm) 103×103
    5 Capacity of modules 3 ways modules

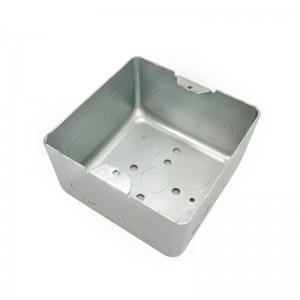

    6 Sink box Thickness: 1.2mm

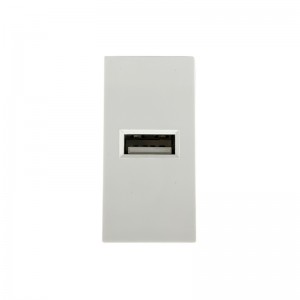

    7 Available modules: 45*45/45*22.5(mm)
    8 Damping device (DP): Normal Pop-up & Soft Pop-up available

  • Previous:
  • Next:

    1. Fast-wiring: more terminal block for 1~2.5m²rigid wire or 0.5~6m²prepared flexible wire.
    2. Easy-Installation: Patented technology of clip flush mounting frame of modules replacement. Save labor cost.
    3. Reliable push button: 5000 times.

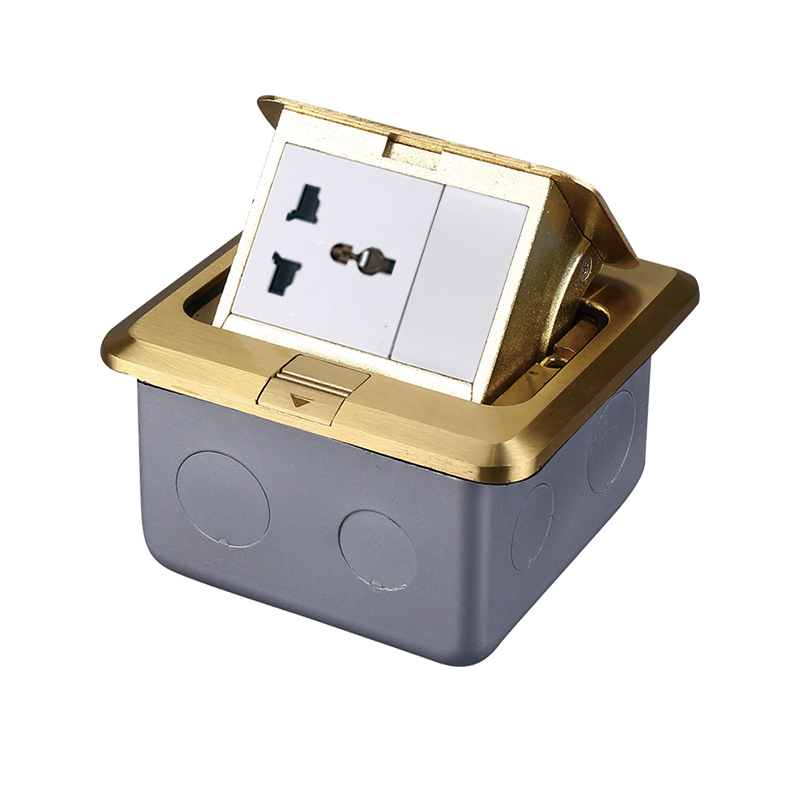

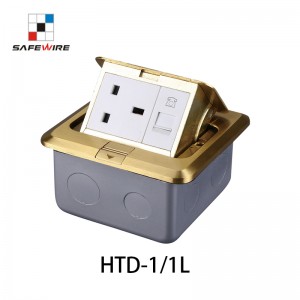

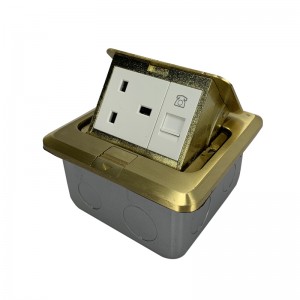

    Available for F type 45*45mm type or D type22.5*45mm international sockets or modules types:


    HTD-1勾线图

    证书

    应用场景
