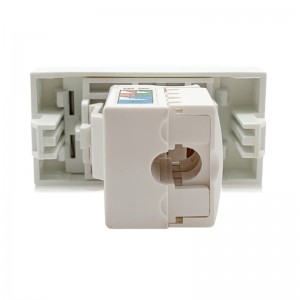

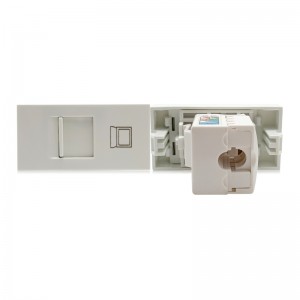

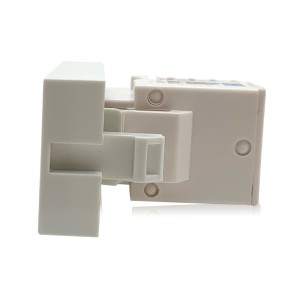

Description | computer socket |
Series | F Series |
Item No. | F21B |
outlet | Cat6 RJ45 sockets |
Size | 45*22.5mm |
Material | Panel: ABSInside part: Copper Touch point : Silver alloy touch point |
Color | White |
Rared Vol Tage | 220V-250V |
Rated Current | 10A |
Application:
1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.
2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules:
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
2.More color with affordable MOQ.
3.CE Certificated and supply with support,frame and coverplate accessories etc.
3.Specification of Safewire IP44 pop up 45×45mm modules:
Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket
A)catagories of Safewire’s 45×45mm modules :
B)Safewire’s 45×45mm modules in cable management.
RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances:
RJ-45 TOOL-LESS modular plug is 8-position 8-conductor (8P8C) and designed for computer networking. The unique toolless design does not require the use of a crimping tool. 568A and 568B color wiring diagram is integrated on the lid for easy installation. The modular plugs are manufactured from high-impact clear poly-carbonate to withstand everyday wear and tear. You can except error-free data transfers.
1. CAT 5e/6 rated connector provide excellent performance for data networks requiring maximum speed and bandwidth
2. PCB technology provides maximum performance and superior signal quality
3. Gold plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection * Using high quality poly-arbonate flame retardant materials, which reached the level of UL94V-0 * Includes an integrated TIA-568A/B color wiring diagram
4. Backwards compatible to all lower rated category components
5.Compatible with all installer wall-plates, surface mount boxes, and blank patch panels
6. Applicable wire gauge: 22 to 26AWG
7. IDC (Insulation Displacement Connector) No need to strip the wire before connecting
1, DC resistance: ≤300mΩ
2, contact resistance ≤20mΩ
3, compressive strength: 1000V(AC750V)1min no breakdown and flying arc
4, insulation resistance≥1000mΩ
6, IDC terminal: phosphor bronze, 22-26AWG conductor
7, the plug and the socket is inserted with more than 1000 times
1. Strip off cable jacket to expose approximately 3/4″ of wires.
2. Insert 2 pairs wires into the holes located on the top cover.
3. Close the top cover to snap firmly on the plug.
4. Take out the top cover and put another 2 pairs wire into the hole.
5.Close the top cover to snap firmly on the plug.
RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances.
