| Product module | F61 |
| Module | RCA RJ45 Jack |
| Impedance | 50Ω,75Ω |
| Resistance | Resistance |
| Insulation Resistance | ≥5000MΩ |
| Durability | 1000 times |
| Materials | brass+ABS |
| Attenuation | 0.5dB type |
| Storage | -30°C to +70°C |
| Wire Type | Unshielded Cat-5 or above twisted pair wire |
| DC Loop Resistance | 52 ohms per 1,000 ft |
| Center Contact | ≤ 1.5 ohm |
| Frequency range | 0~2GHz |
| External resistance | ≤0.2mΩ |
| Medium pressure | 1500V |
| Center Pin | Gold-plated pure Copper |
| Frequency response | DC to 8 MHz |
| Environmental | -10°C to +70°C |
| Humidity | 0 to 95% |
| Category Type | 5or better |
| Withstand Voltage | 1500V rms |
| Outer Contact | ≤ 1 ohm |
| Certificate | RoHS, ISO9001,ISO14001,OHSAS18001 |
Application:
1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.
2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules：
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
2.More color with affordable MOQ.
3.CE Certificated and supply with support,frame and coverplate accessories etc.
3.Specification of Safewire IP44 pop up 45×45mm modules:
Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket
A)catagories of Safewire’s 45×45mm modules :
B)Safewire’s 45×45mm modules in cable management.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances:

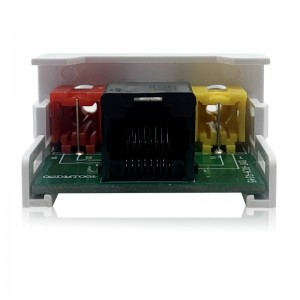

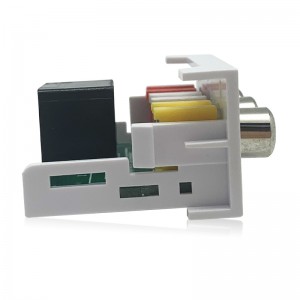

1.RCA RJ45 Jack For Home Theater AV Setup: Used for home theater AV setup media project, fits in standard wall box or mounting bracket. RJ45 to RCA.
2.Work with CAT5, CAT5e or CAT7 cables, or used with a “keystone” wallplate, patch panels, or surface mount boxes

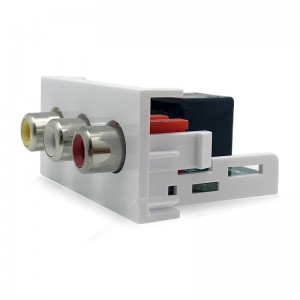

3.3 x RCA Composite (Red White & Yellow): Composite video, Left Audio and Right Audio.
They are mainly used mobile phone, CD machine, wireless phone, digital notebook computer, digital camera, TV, home appliance, audio-visual, film and television and so on.
RoHS Certificate of Compliance：Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of substances.
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
