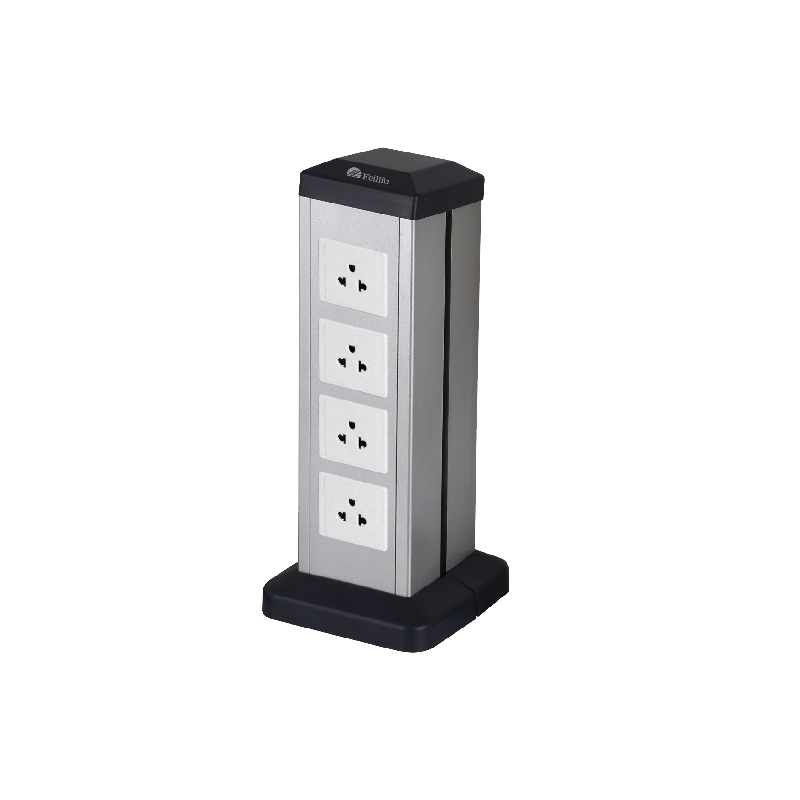

Technical parameters & characteristic :
1) Working environment:
- The environment temperature:-5℃~/40℃
- The rated voltage：100V~~250V
- Rated current：10A、13A、16A、20A
2) Technical parameters :
| Serial No. | Parameter | Description |
|
1 |
Power supply side |
Two side |
|
2 |
Shape column |
square |
|
3 |
Panel Material |
Aluminum alloy |
|
4 |
Surface finish |
Painted/Brushed Oxygenated |
|
5 |
Height of product(mm) |
350 for FZ-532A |
|
6 |
Height of product(mm) |
660 for FZ-532B |
|
7 |

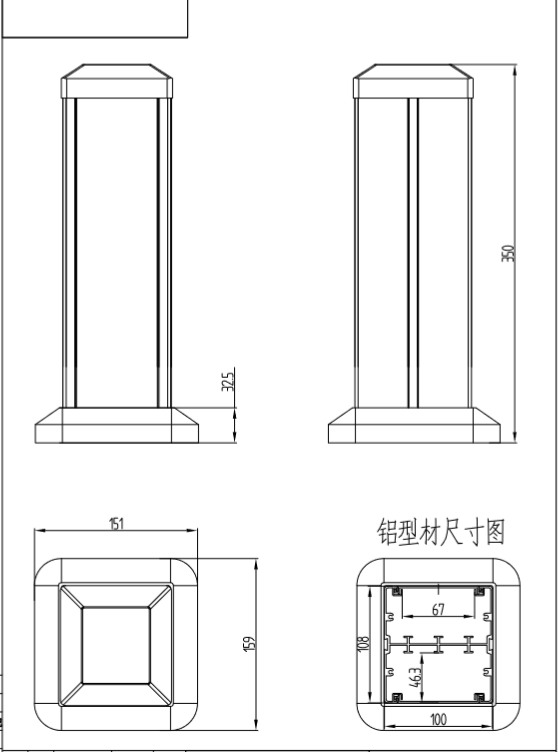

dimension (mm) |
151*159 |
|
8 |
Capacity of modules |
45*45/45*22.5(mm) modules |
|
9 |
Configuration |
Power outlet+Data outlet or USB charging+HDMI+VGA+Audio socket : Customized as required |
|
10 |
N.W.（350mm） |
1.2KG |
|
11 |
N.W.（660mm） |
2.2KG |
Application:
1.Office and education
2.Industry and Engineering
3.Presentation and retail;
4.Orientation and safety;
5.Transit areas and parking;
6.Hotels, hospitality and wellness;
7.Health, sport and leisure;
8.Art and culture;
Features
1. Configuration as per your request.
2. Cuostomization height as per your request.
3. Aluminum profile,double power supply,easy install.
4.International 45*45mm modules or 86 type single switch socket or 146 twins switch socket.
5. Installation mobility: The columns are secured by pressure on the floor. They do not have to be bolted to the floor and it is therefore very easy to reconfigure the distribution of workplaces.

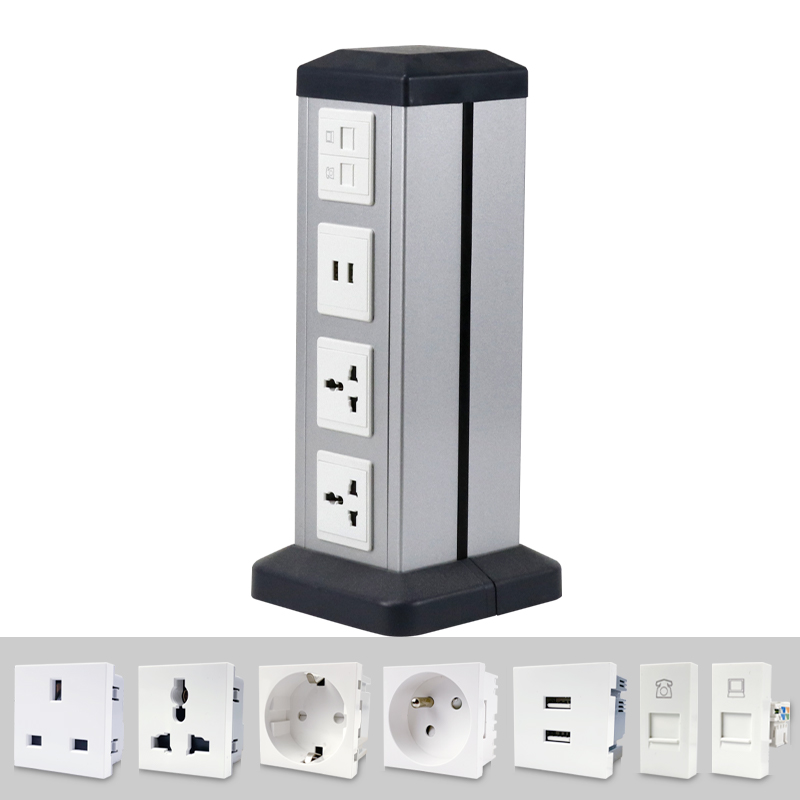

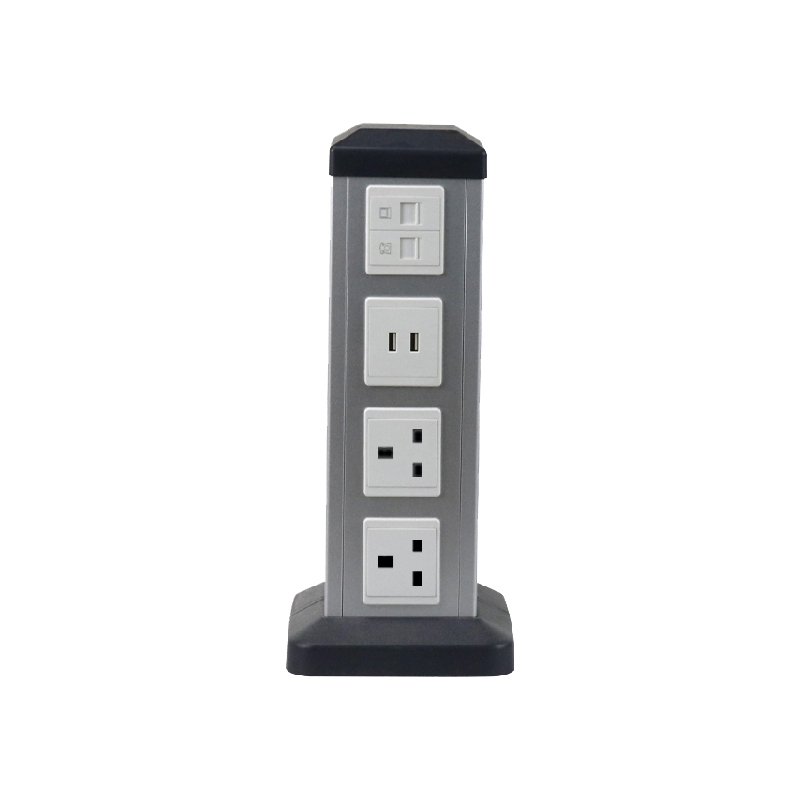

Available for 45*45mm type international sockets or modules types:
Installation Process
- Connect and fix the base frame and the housing.
- Connect the base shell and buckle with the base frame.
- Install electrical modules into frame.
- Install the top cover on top.
Attentions:
1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed
2)This product must be installed/wired by a qualified electrician
3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off
4)For indoor use only
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
