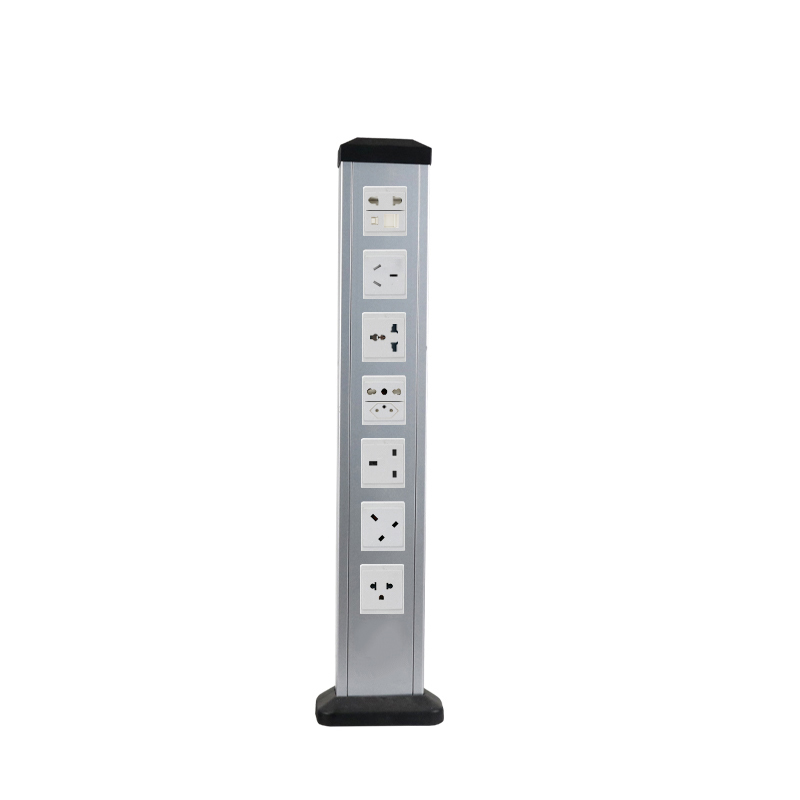

Painted Surface Electrical Socket Column / Electric Plug Socket / Power Socket

Technical parameters & characteristic :

1) Working environment:

1. The environment temperature:-5℃~/40℃
2. The rated voltage：100V~~250V
3. Rated current：10A、13A、16A、20A

Technical parameters :

Application:

1.Office and education

2.Industry and Engineering

3.Presentation and retail;

4.Orientation and safety;

5.Transit areas and parking;

6.Hotels, hospitality and wellness;

7.Health, sport and leisure;

8.Art and culture;

Features:

1. Configuration as per your request.

2. Cuostomization height as per your request.

3. Oval shap Aluminum profile, single power supply,easy install.

4.International 45*45mm modules or 86 type single switch socket or 146 twins switch socket.

5. Installation mobility: The columns are secured by pressure on the floor. They do not have to be bolted to the floor and it is therefore very easy to reconfigure the distribution of workplaces.

Available for 45*45mm type international sockets or modules types:

Installation Process

1. Connect and fix the base frame and the housing.
2. Connect the base shell and buckle with the base frame.
3. Install electrical modules into frame.
4. Install the top cover on top.

Attentions:

1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.

Safety Warning:

1)This is a class I product and must be earthed

2)This product must be installed/wired by a qualified electrician

3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off

4)For indoor use only
