| Serial No. | Parameter | Description |
|
1 |
Power supply side |
Two side |
|
2 |
Shape column |
square |
|
3 |
Panel Material | stainless steel 201 spray paint |
|
4 |
Surface finish |
Painted/Brushed Oxygenated |
|
5 |
Degree of protection |
IP66 |
|
6 |
Rated Voltage |
110V-250V |
|
7 |
Rated Current |
16A |
|
8 |
Capacity of modules |
4 sockets + circuit breaker |
|
9 |
Color |
white |

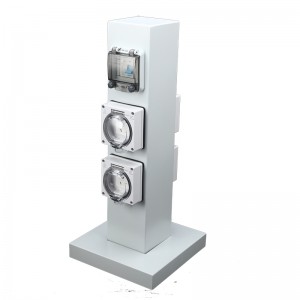

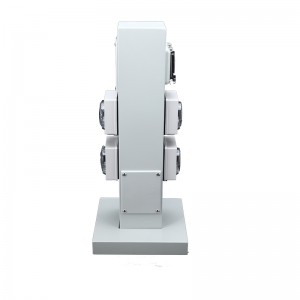

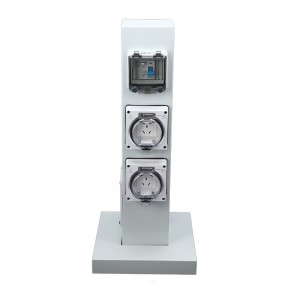

1.Power distributor with four IP66 protect sockets in stainless steel 304 spray paint
, for indoor and outdoor use.
2.The housing is made of stainless steel 304 spray paint
and is protected by IP66 splash water. It is protected against splash water and therefore ideally suited for outdoor use.
3.Ideal for the lawn, in the bed or other floors suitable for secure attachment of typical garden tools, such as lawn mowers, lawn sprinklers or garden lights.
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
