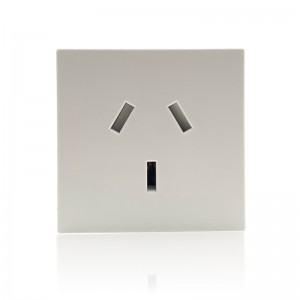

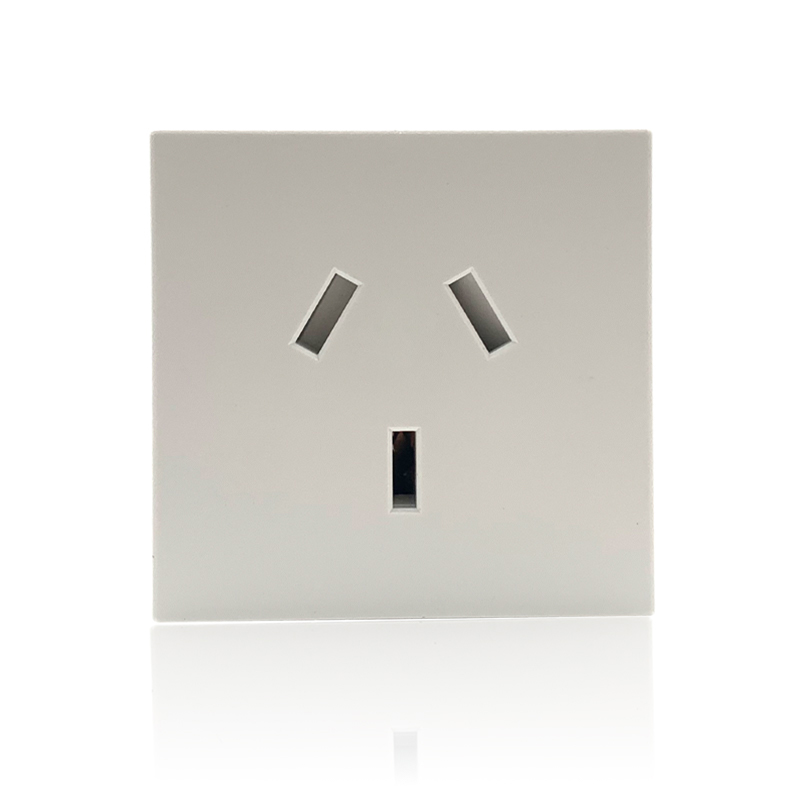

45*45mm PC Module Australia Socket Outlet / Australia Electrical Outlet

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Feature

    Application

    Product Tags

    Serial No. Parameter Description
    1 Product type Australia  socket
    2 Panel Material PC 94-V0
    3 Inside material Tin phosphorous bronze
    4 Surface finish Glossy
    5 Input voltage 250v/AC 50~60Hz
    6 Rated current 10A
    7 3 pin Withdrawal force 54N
    8 2 pin Withdrawal force 2N-18N
    9 Durability ≥5000
    10 Color customization
    11 Number of terminals 2 screw terminals
    12 Outlet Australia socket
    13 IK degree of protection IK04
    14 IP degree of protection IP21
    15 Dimension of product 45*45mm
    16 Certification CE

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10℃~+40℃;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure ≥3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ



    Application:

    1.Feature of Safewire IP44 pop up 45×45mm  modules :

    1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.

    2.Easy-Installation:snap-indesign.

    3.Easy wiring,tooless installation,save cost!

    2.Advantage of Safewire IP44 pop up 45×45mm  modules:

    1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.

    2.More color with affordable MOQ.

    3.CE Certificated and supply with support,frame and coverplate accessories etc.

    3.Specification of Safewire IP44 pop up 45×45mm  modules:

    Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket

    A)catagories of Safewires 45×45mm modules :

    B)Safewires 45×45mm modules in cable management.

    RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of  substances:




  • Previous:
  • Next:

  • F3A 官网文案 A200424 OK-3

     1.tooless installation

    2.Single,double,triple,multi-socket using the connection block

    3.With optional safety key

    4.With red,green,white finish for UPS,health sector or specific power supply.

    RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of  substances.

    F3A 官网文案 A200424 OK-2
