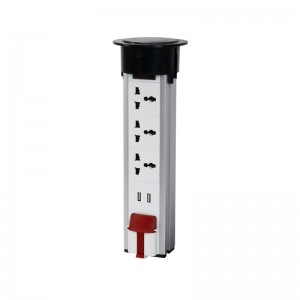

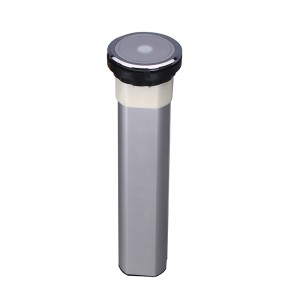

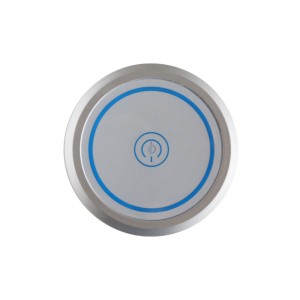

Safewire FZ-527E Vertical socket kitchen socket counter table socket

Application:

1.Feature of Safewire Cylindrical socket:

1.IP44 Level protector shutter sock

2.45 degree socket, more easy plug into unites.

3.Optional motorised pop up with bluetooth/USB and wireless charge etc.

2.Advantage of Safewire Cylindrical socket :

1.Modular design for configuration of power supply and communication of 45×45mm modules.

2.More optional ɸ 80mm,ɸ100,ɸ124mm for grommet hole in furniture.

3.Anodised EV1 Aluminum Brushing wire drawing or black poweder-coated housing.

3.Specification of Safewire Cylindrical socket:

Vertical socket/pop up socket power management/cable wells-modular/table console/table socket/kitchen socket vertical counter top socket/pneumatic socket/pneumatic socket/pneumatic power socket/pneumatic pop up socket/pneumatic power outlet/cabinet socket

A)Product dimension:

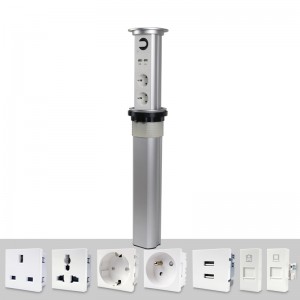

B)Available 45×45mm modules/socket/accessories:

C) Safewire Cylindrical socket application in different system:

Installation Process

Installation Process

1. Open a circular hole with a diameter of 100mm.
2. After removing the buckle，insert the product into the hole in the tabletop.adjust the direction and fix the product on the buckle at the bottom of the tabletop.
3. Connection cable and tighten the screw ring to use

4. Attentions:

   1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

   2. All dimension quoted are nominal only. Drawings , images and text are for illustrative purposes only and product details and dimension are subject to change without notice.

   Safety Warning:

   1. For the protection and safety of you and others,please read this manual before installation.If you have something you don't understand when you install it,please contact us in any time.
   2. Please noted that the sum of current (power) should not exceed the rated current (power) of the product.3*1.0 square power cable with a maximum power of 2000W,3*1.5 square power line maximum power 3000W
   3. Please install this product in a location that is out of reach of children to ensure personal safety.
   4. To avoid electric shock, fire, and electrical failure ,please don't install this product in a humid environment.
   5. To avoid electric shock and fire,please don't damage the power cord and power outlet.
   6. To avoid electric shock and the expiration of the warranty period,please don't disassemble this product.
   7. To avoid electric shock and fire caused by electrical leakage,connect a cable with a grounding.

1.Automatically on/off

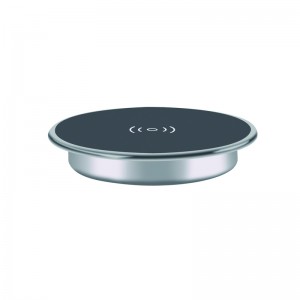

2.Optional wireless charger of QI,2.1A/4.2A fast USB charger and blue tooth speaker outlet etc

3. International 45mm Legrand’S modules/outlets

4.Aluminum alloy 6063 reliable light housing

5.optional 1.5 M International IEC plug and cora of 1.0 mm²square or 1.5mm² square.

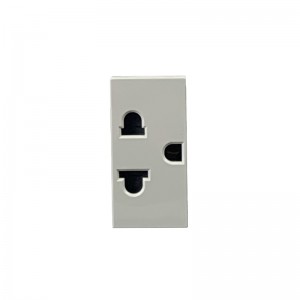

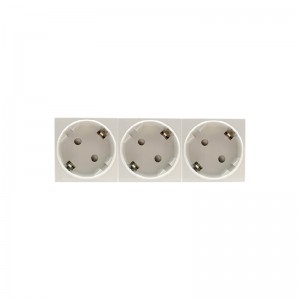

Available for F type 45*45mm type or D type22.5*45mm international sockets or modules types:
