| Serial No. | Parameter | Description |
|
1 |
Power supply side |
Two side |
|
2 |
Shape column |
square |
|
3 |
Panel Material |
Aluminum alloy |
|
4 |
Surface finish |
Painted/Brushed Oxygenated |
|
5 |
Color |
Silver/black/white |
|
6 |

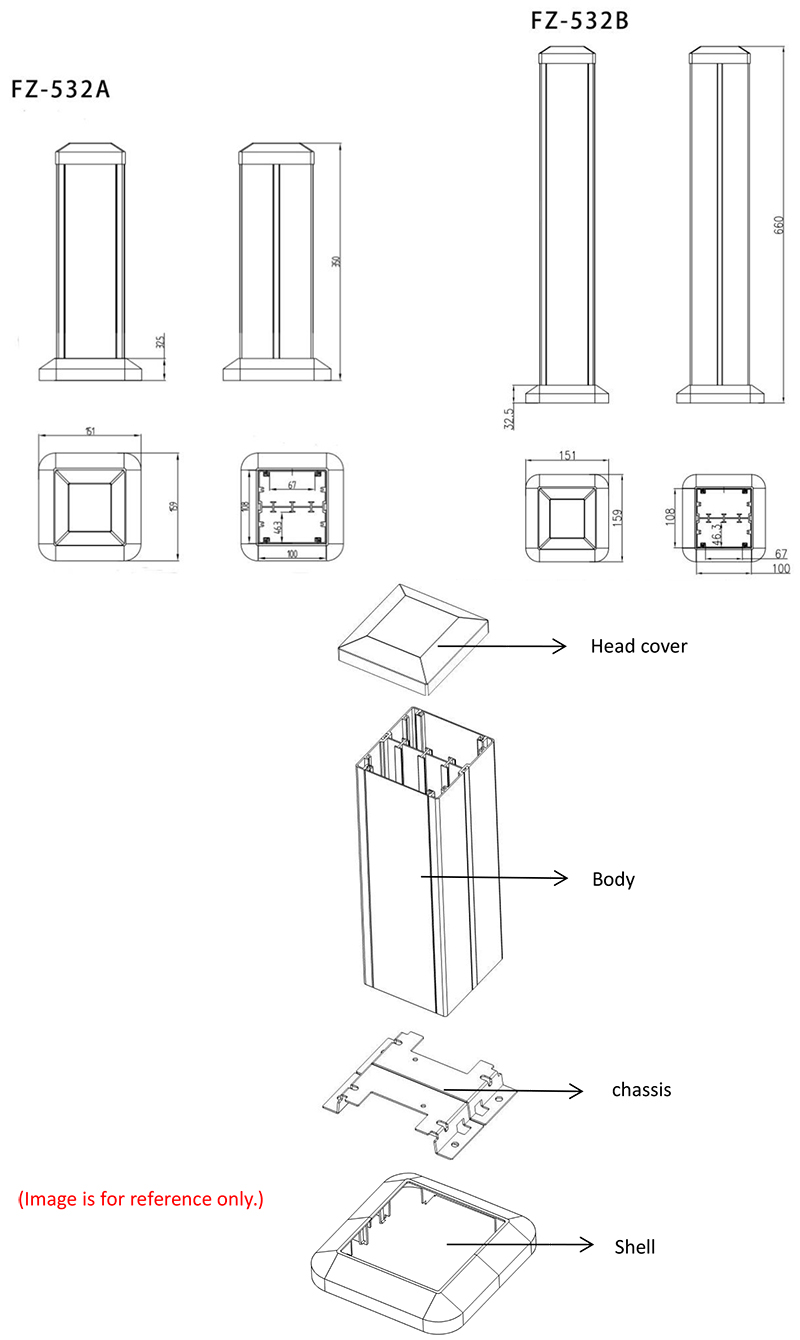

Height of product(mm) |
350 for FZ-532A |
|
7 |
Height of product(mm) |

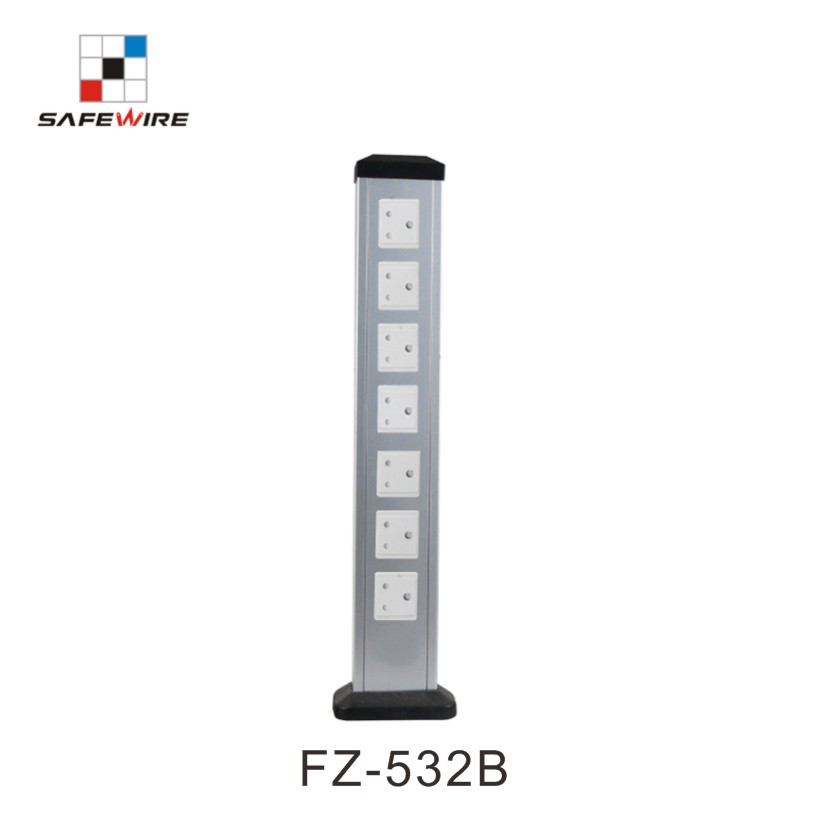

660 for FZ-532B |
|
8 |
dimension (mm) |
151*159 |
|
9 |
Capacity of modules |
45*45/45*22.5(mm) modules |
|
10 |
Configuration |
Power outlet+Data outlet or USB charging+HDMI+VGA+Audio socket : Customized as required |
1.Simplicity: The column is secured to the ceiling or floor by pressure , no need for screwing to the ground or the ceiling.
2.Installation mobility: The columns are secured by pressure on the floor. They do not have to be bolted to the floor and it is therefore very easy to reconfigure the distribution of workplaces.
3.Compact: The mini-columns are supplied all necessary materials for installation: foot for floor attachment, top and side covers and fastenings.
4.Customization solution: Flush-mount power supply or power supply through floor trunking are optional; two shape of oval or square is optional;different configuration and electrical sockets and plates is optional;
5. 2 side power supply with oval shape;
Available sockets or modules types:

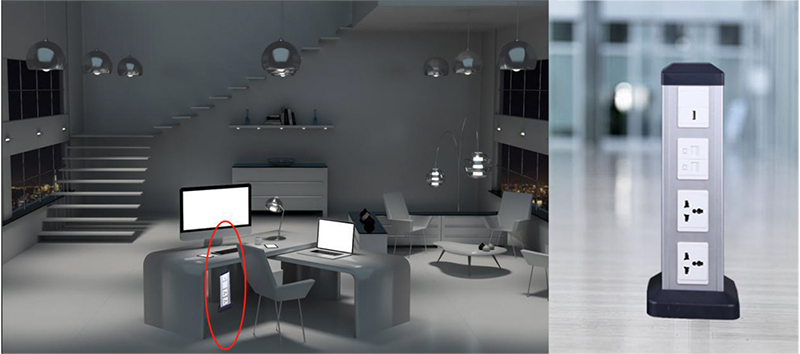

Application for Offices/Car parks/Industrial buildings/Warehouse/ workshops/airport
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
