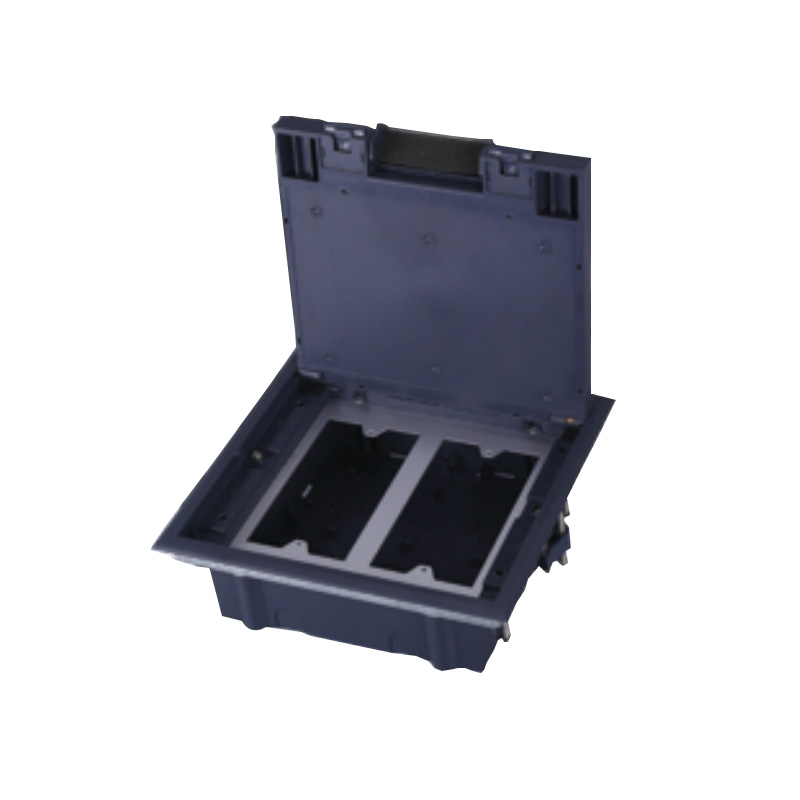

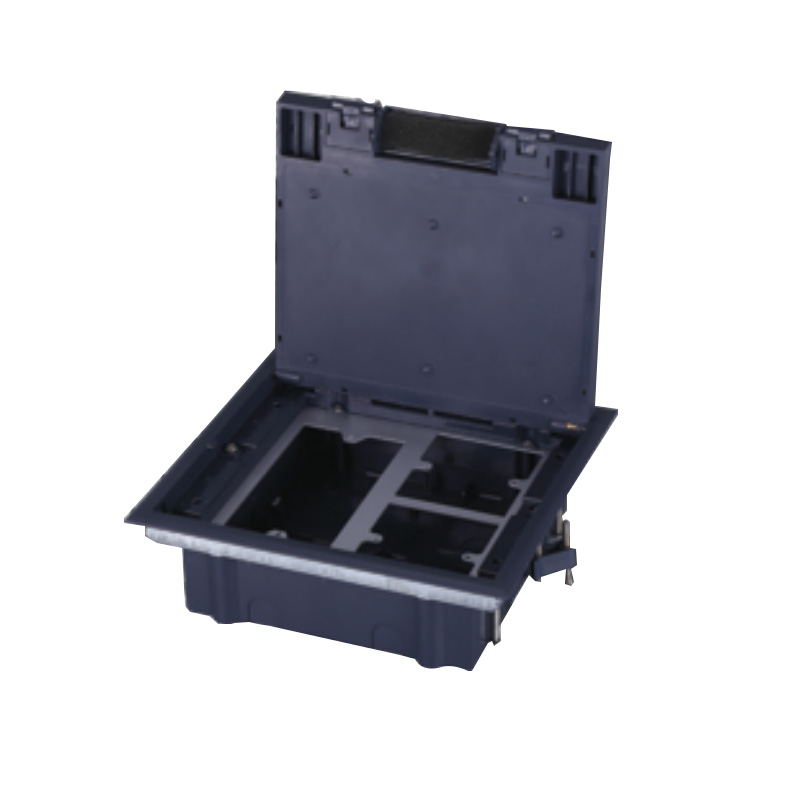

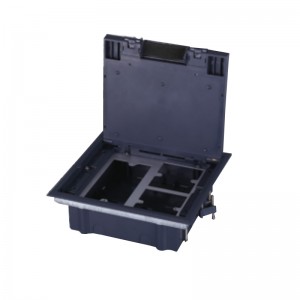

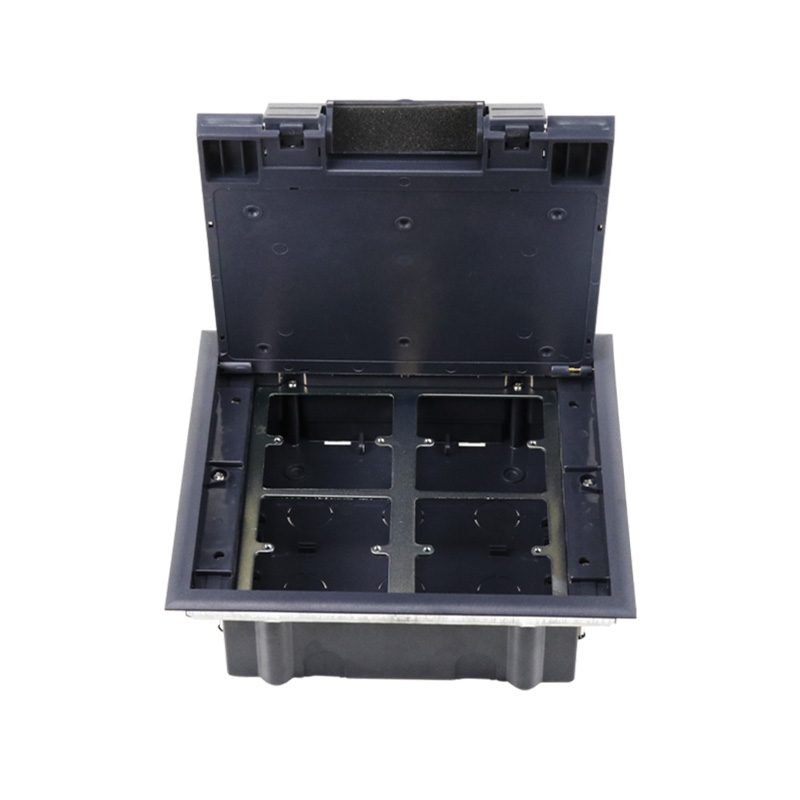

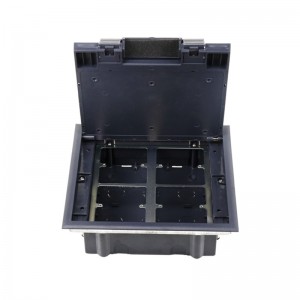

Quick Details:
| Serial No. | Parameter | Description |
|
1 |
Safewire item |
HTD-624AS/SS/SP-86 |
|
2 |
Material |
ABS, galvanised steel |
|
3 |
Overall Frame & Lid (mm) |
245*225 |
|
4 |
Compact floor cut-out(mm) |
(210-215)*(230-235)*(76-110) |
|
5 |
Thickness of concavity/Frame lid recess (mm) |
8 |
|
6 |
Installation depth(mm) |
76~110 |
|
7 |
Plug top clearance(mm) |
13~48 |
|
8 |
Available modules |
4 Ways 86*86MM modules |
|
9 |
Accessories plates |
90*80mm |
Application:

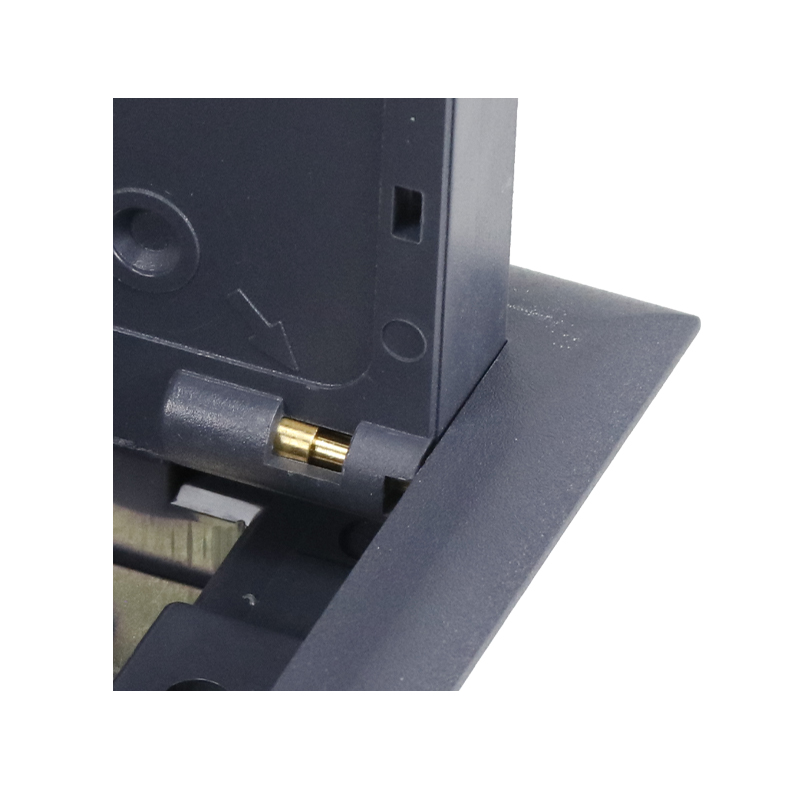

Feature of Safewire floorbox:
Advantage of Safewire floorbox :
Specification of Safewire floorbox :
Attentions:
1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.
2.The sealing ring is closely attached to the smooth surface to prevent water leakage.
3.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
4.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).
5.Please close cover when not used.
Safety Warning：
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete floor/access floor.base on different bottom box.

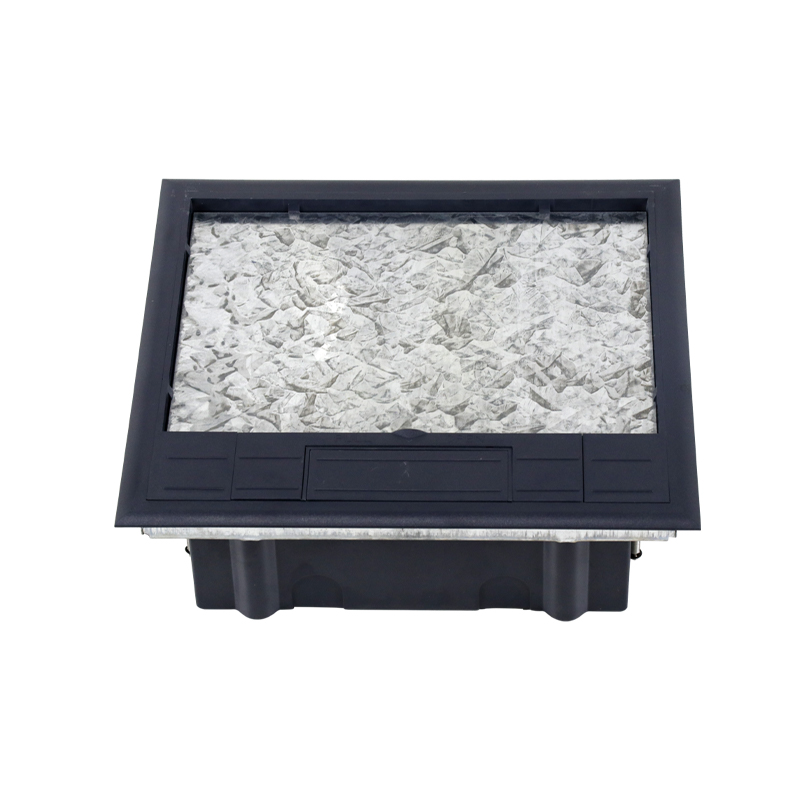

1、Our floor boxes are boxes for installation recessed in floor with possibilities of add decorative materials like carpet, parquet or other finishes, on the lid.The lid made of ABS material as per RoHS certification, resistant to high temperature and corrosion.
2、capacity：HTD-626AS can install 8 ways (45*45mm Legrand’s Mosaic modules)
3、Thicknes of concavity/Frame lid recess be 8mm;
4、The height of the bottom box reaches 95mm,There is enough space inside the bottom box to install the cable
5、The static pressure force over 1000 N.

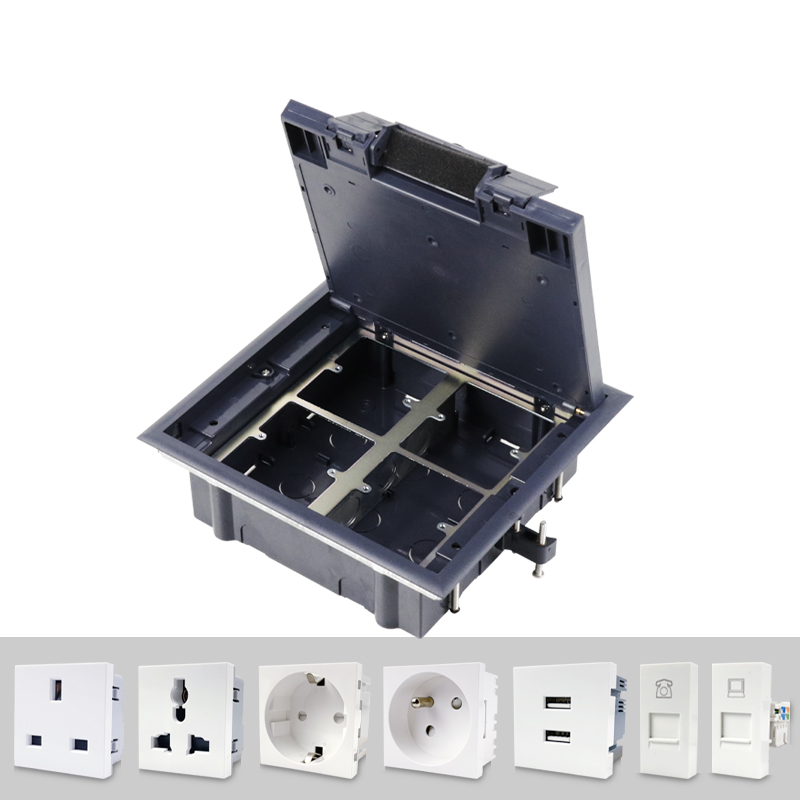

Available sockets or modules types:
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
