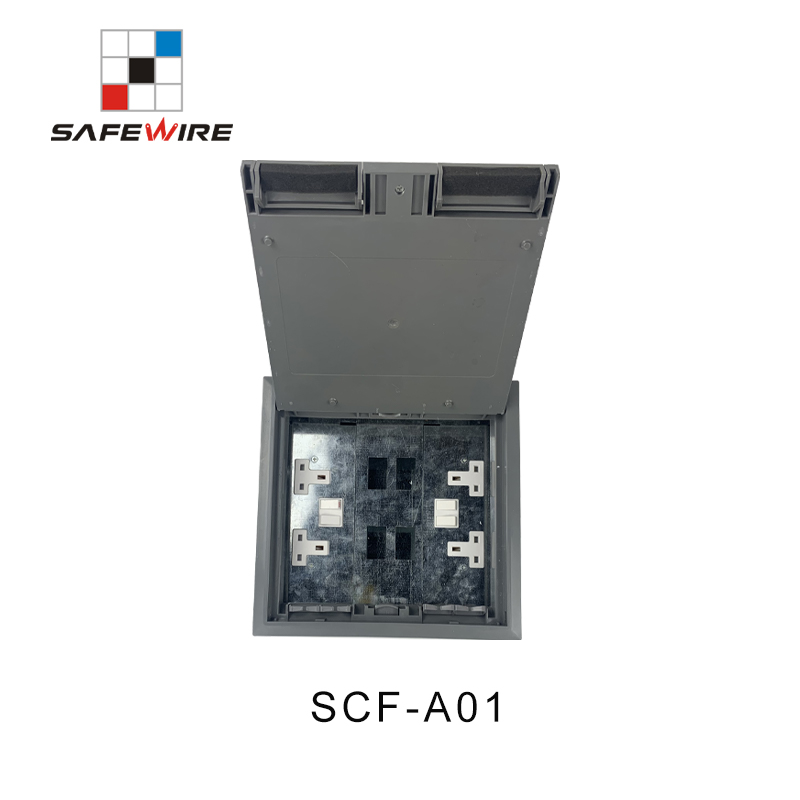

SCF-A01

Short Description:


  • Port: Wenjiang
  • Technical Parameters

    Features

    Outline drawing

    Application

    Product Tags

    No.

    Parameter

    Description

    1

    Floor Cut Out

            254x254mm

    2

    Floor Box Depth

     80mm

    3

    Plug Top Clearance

    30mm

    4

    Overall Frame & Lid

    270x270mm

    5

    Frame Lid Recess

    8–10mm




  • Previous:
  • Next:

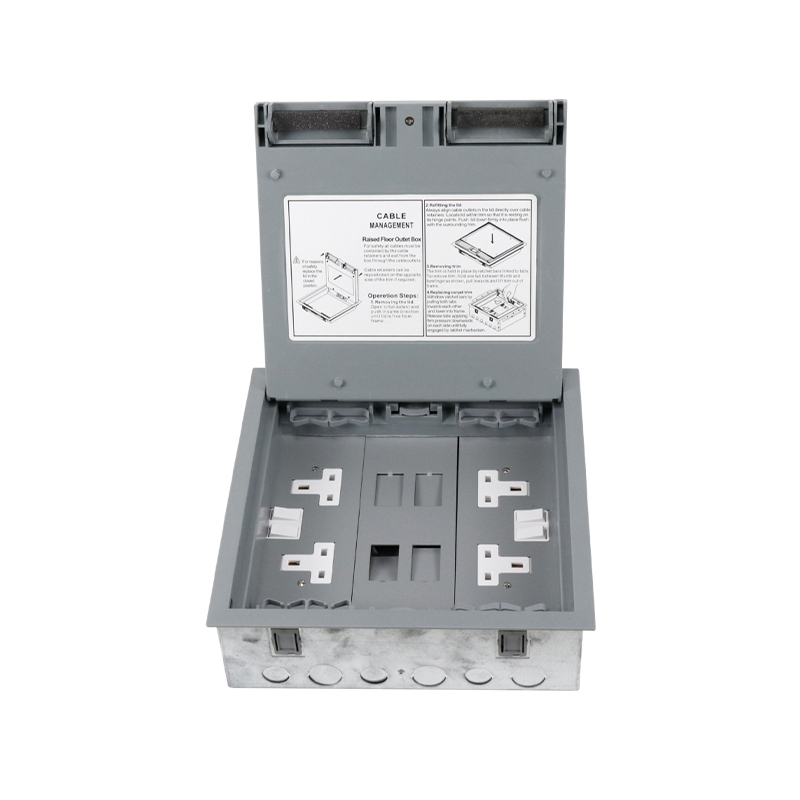

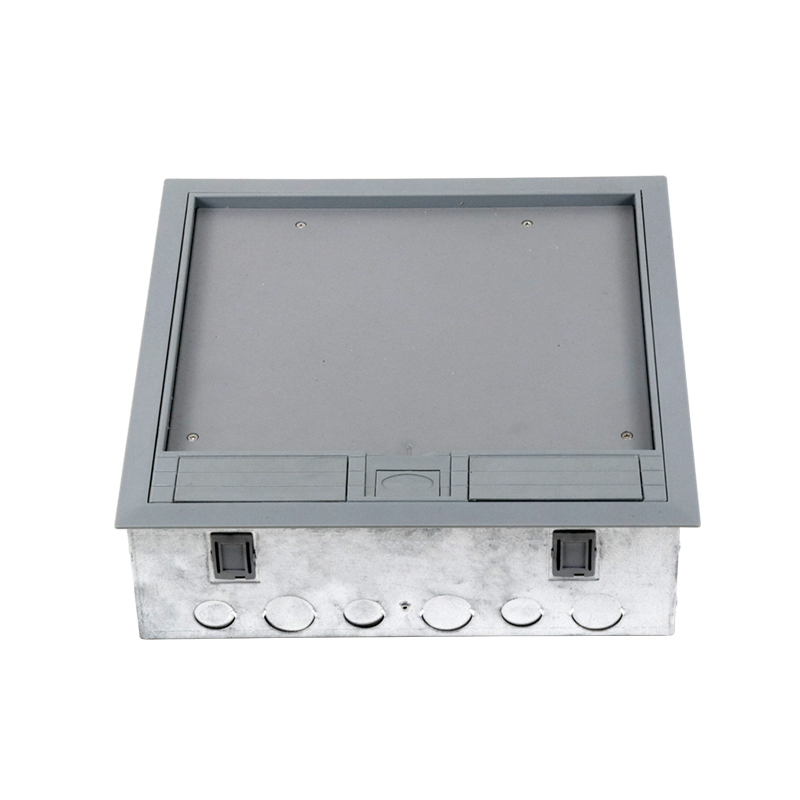

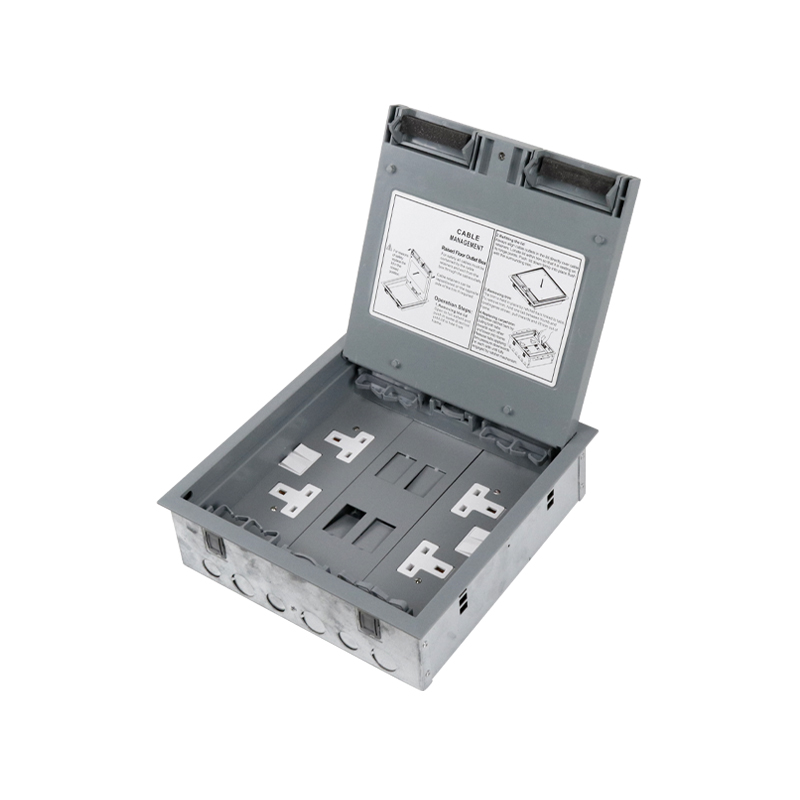

  • 1. Frame and lid:from ABS ,Static pressure>1000N.

    2. Bottom box:from galvanized steel

    3. More cavity deepth:over 8~10mm;

    4. Module Compartment :Clamp fifixing BS standard 86/146 twins switch

    socket or international 45*45mm receptacle and data.

    SCF-A01官网文案 A200423 ok-4

    SCF-A01官网文案 A200423 ok-3

    SCF-A01官网文案 A200423 ok-2
