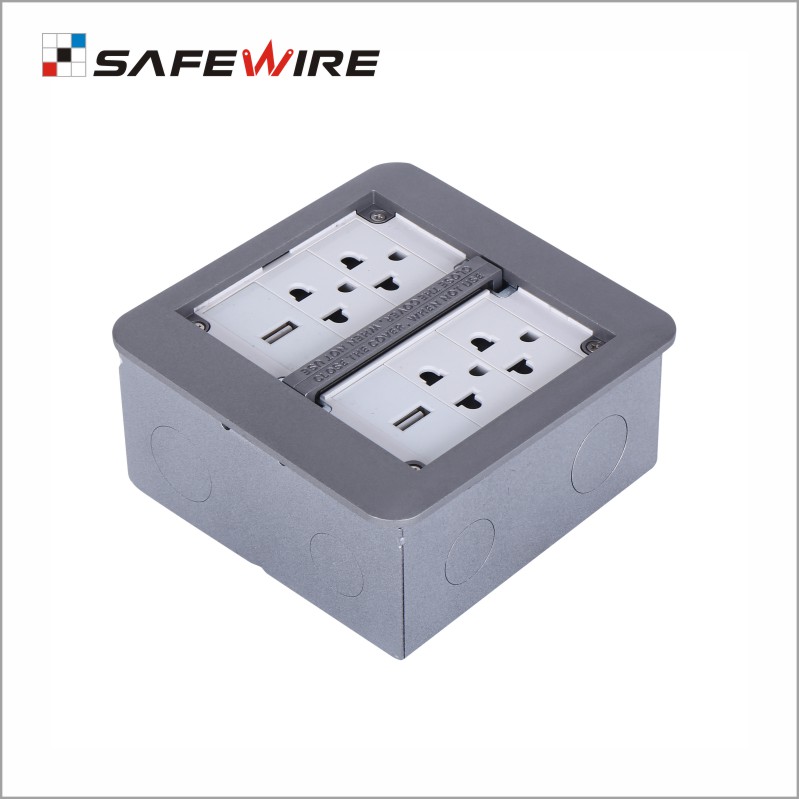

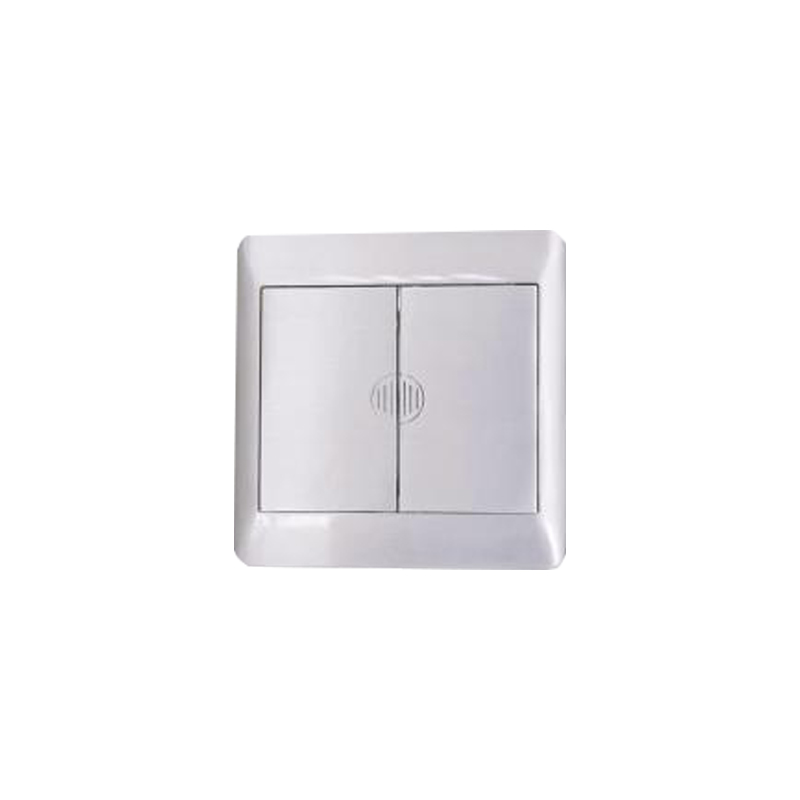

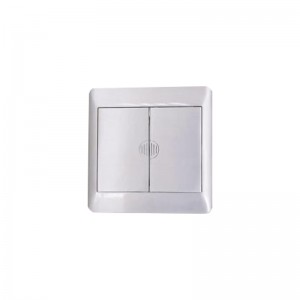

HTD-13

Short Description:


  • Port: Wenjiang
  • Technical Parameters

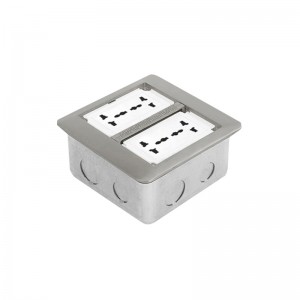

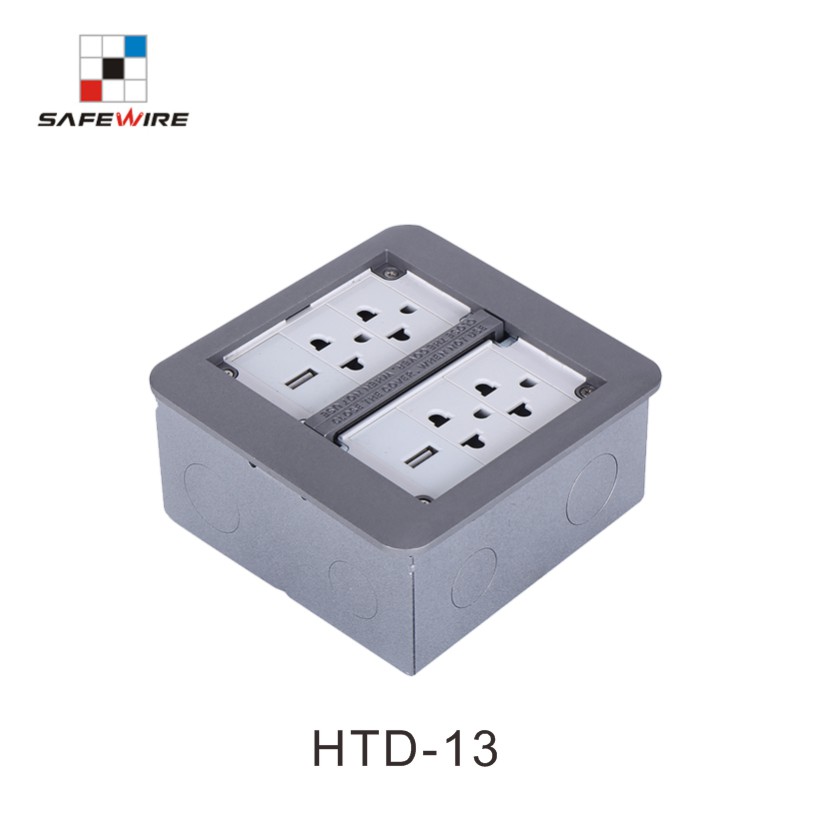

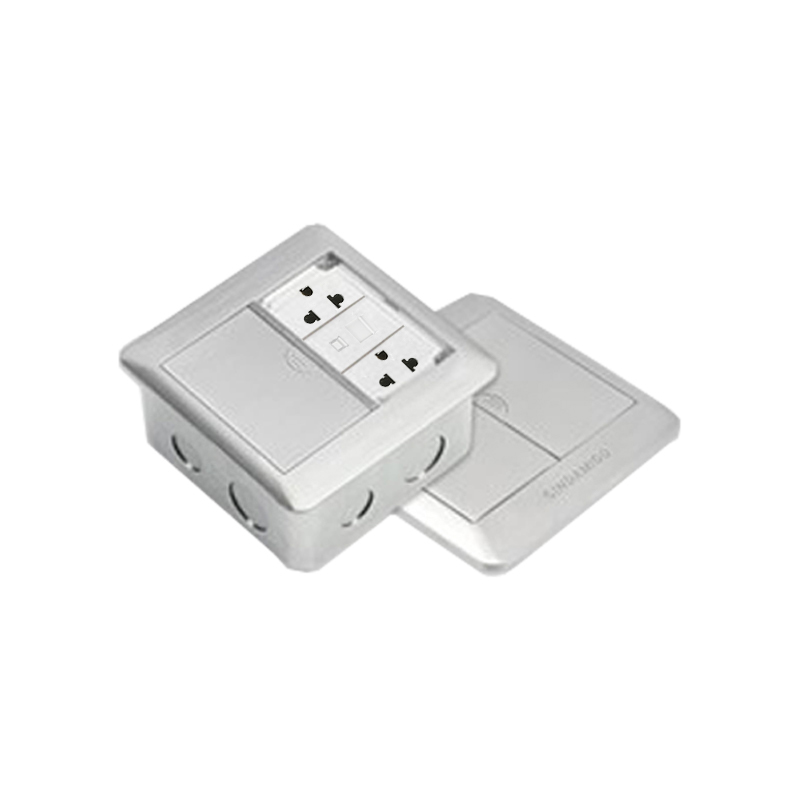

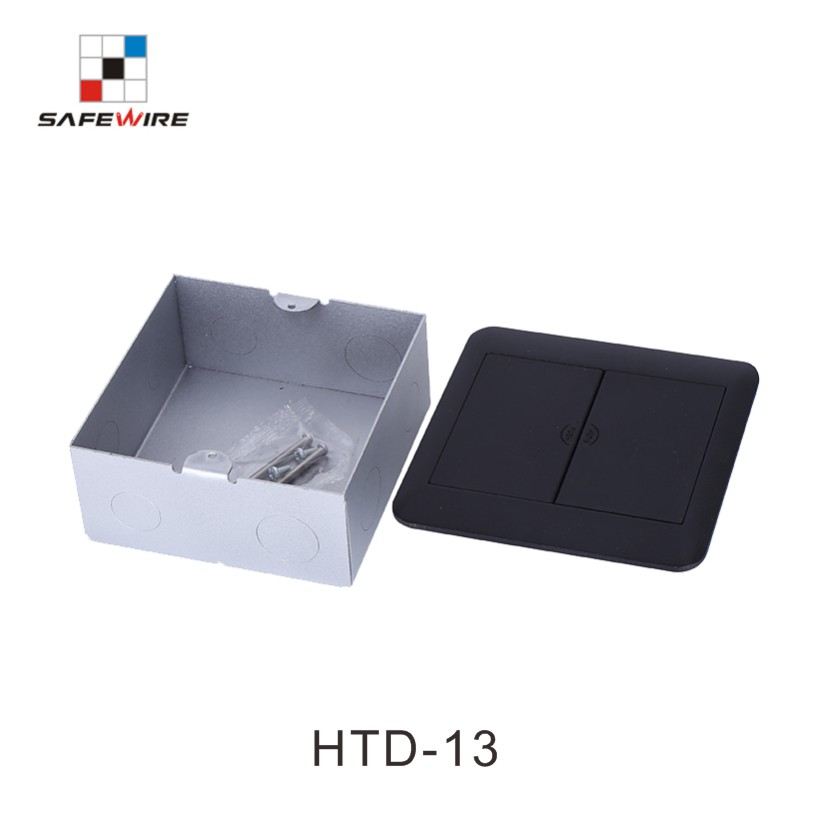

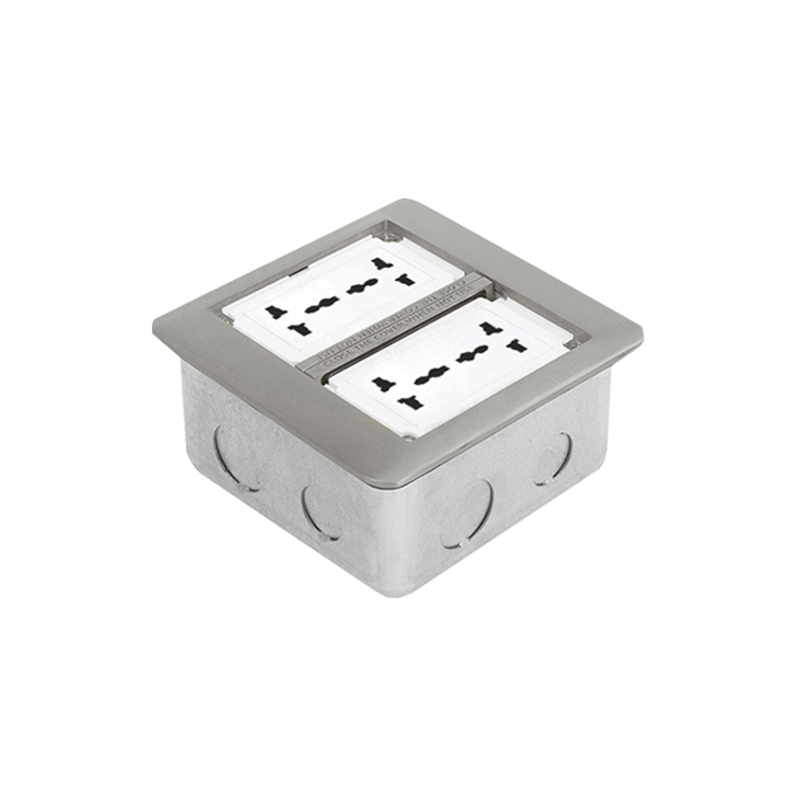

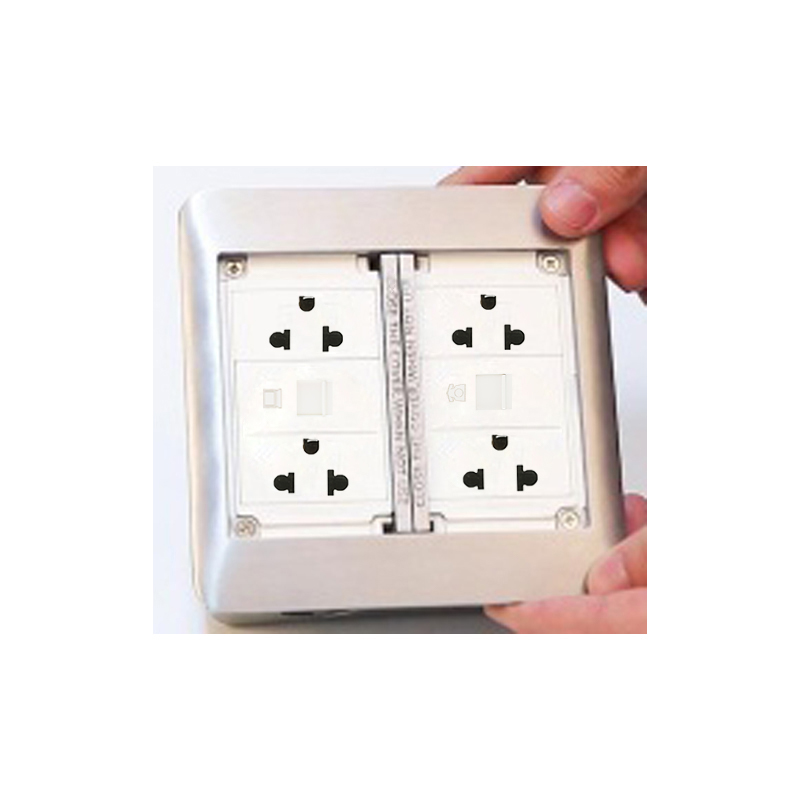

    Product Show:

    HTD-13 Outline drawing:

    Application:

    Product Tags

    Technical parameters & characteristic :

    1) Working environment:

    1. The environment temperature:-5~/40
    2. The rated voltage100V~~250V
    3. Rated current10A13A16A20A

    2) Technical parameters :



    Serial No. Parameter Description

    1

    Panel Material Brass alloy/Stainless steel
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 134*134
    4 Cutout(mm) 122x122
    5 Static pressure 1000N
    6 Horizontal mounting Horizontal installation
    7 Sink box Material Steel+Zinc plated
    8 Hinged lid thickness 4MM
    9 Base box dimension(mm) 122*122*71.5
    10 Available modules 45*45/45*22.5(mm) modules
    11 Colors silver/Golden
    12 Module Capacity 6
    13 Material Aluminum alloy/Brass alloy



    Features:

    1.Economic range with large capacity.
    2.The sleek & flat designed cover top with beveled edges allows the unit to mount flush with the surface.
    3.Features double easy to use flip lids which provides quick access to power and data outlets.
    4.Ideal for concrete floors and countertop applications.

    Installation instructions:

    1. Cut out 122*122(mm)Powering the slurry.
    2. Remove the pre-installed temporary lid,wiring and installing modules,Per-installthe cable pipe                   as per your request .
    3. Install cover lid and tighten with screws.4.
    4. Conceal the cut edge of carpet of flooring

    Attentions:

    1.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).

    2.This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation.This product is not suitable for use in wet areas.

    3.All dimensions quotes are nominal only.Drawing images and specification are only for illustrative purposes and dimensions are subject to final confirmation by us.

    Safety Warning

    1.This is a class I product and must be earthed

    2.This product must be installed/wired by a qualified electrician

    3.For indoor use only.
