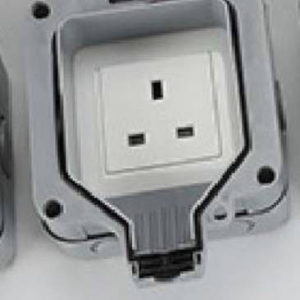

913SPF-G BS Standard 1 Gang IP66 Outdoor CE & UKCA certificate socket inside

Specification

Application:

1.Feature of Safewire Counter to IP66 Waterproof box :

1.Ip66 waterproof+dustproof+uv-proof.

2.International&popular modules:45×45mm modules or 86 type switch socket.

3.Empty box or 1/2/3/4 gang waterproof box with socket.It is up to you.

2.Advantage of Safewire IP66 Waterproof box：

1.With BS1363-2,IEC60669-1:2017 IP66 Certificate.

2.Ergonmic front cover/lid.Neck feature accomodates most plugs with bulky moduled strain relief.

3.Rohs Directive plastic quality materials.

3.Specification of Safewire IP66 Waterproof box:

IP66 waterproof box/IP55 waterproof box/waterproof box/floor box/flush-mounting box/switch socket/switch box/floor mounted socket/wall mounted box/wall mounted socket.

A)Available installation modules/socket/accessories:

Feature

1. Select the high-quality raw material and promise not to use recycled material .
2. Antiflaming ,Flame retardant material does not catch fire.
3.Resistant to corrosion ,resistance to a variety of chemical corrosion.
4. Shock resistance ,heavy impact resistance.
5.Oversize ,Anti – electric shock, anti – splash, isolation bin, waterproof grade IP66.
6.Seal ring: 1)High quality rubber material; 2)Good waterproof effect IP66
7.Brown visual waterproof diaphragm design: 1)Waterproof and dustproof IP66. 2)you can operate switch directly through diaphragm without opening lid.
8.Switch buckle design. 1)Humanized switch buckle desigh; 2)Plug can be directly connected from the switch bayonet,and the lid is sealed.

Product size

Application

Waterproof switch can be used in parks, car washes, kitchens, bathrooms, outdoor construction sites and other places where there is no long-term too damp. When used, it can be equipped with belt connector module series accessories and basic series accessories;The fastening screw installed in front of the frame can install enough cable wiring space on the base to make the installation powder compact and reliable, easy to maintain and ensure the protection class of IP66.

The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.

Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
