F2

Short Description:


  • Port: Wenjiang
  • Technical Parameters

    Feature

    Outline drawing

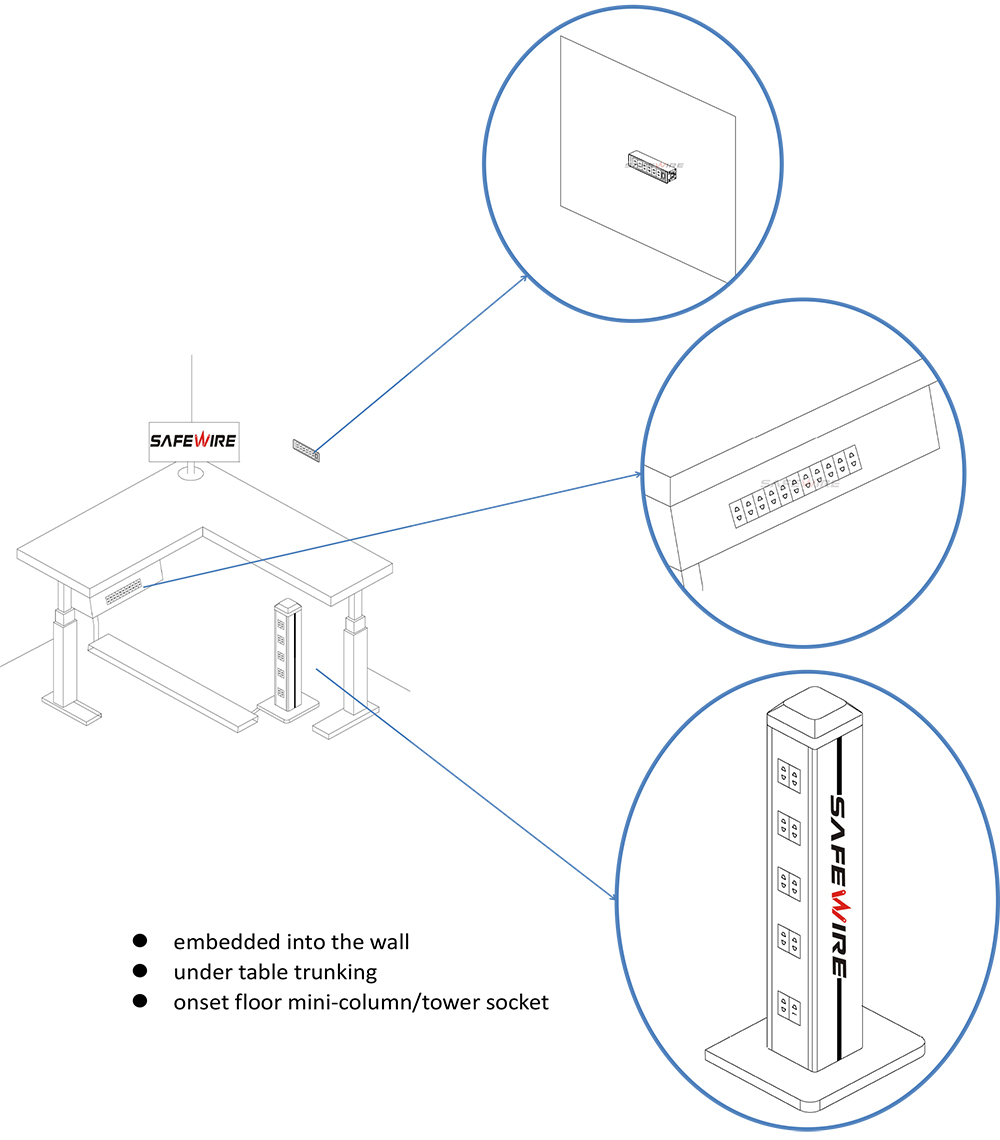

    Application

    Product Tags

    Serial No. Parameter Description
    1 Panel Material PC 94-V0
    2 Inside material Tin phosphorous bronze
    3 Surface finish Glossy
    4 Input voltage 250v/AC 50~60Hz
    5 Rated current 10A
    7 2 pin Withdrawal force 2N-18N
    8 Durability ≥5000
    9 Color customization
    10 Number of terminals 2 screw terminals
    11 Outlet Brazil NBR sockets
    12 IK degree of protection IK04
    13 IP degree of protection IP21
    14 Dimension of product 22.5*45mm

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10℃~+40℃;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure ≥3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ

  • Previous:
  • Next:

  • Safewire Datasheet 2 pin socket F2 H200603-4



    1.tooless installation

    2.Single,double,triple,multi-socket using the connection block

    3.With optional safety key

    3.With red,green,white finish for UPS,health sector or specific power supply.

    Safety Warning:

    1.For indoor use only.

    2.This product must be installed/wired by a qualified electrician.

    .Attentions:

    1.Protect children from touch skirt of socket.

    2.Ensure current and voltage as rating current/voltage .Do not overload

    3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

    Safewire Datasheet 2 pin socket F2 H200603-5

    Safewire Datasheet 2 pin socket F2 H200603-3
