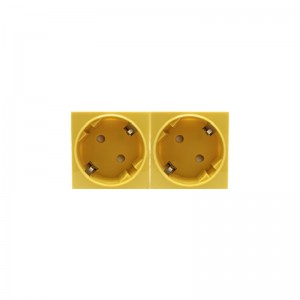

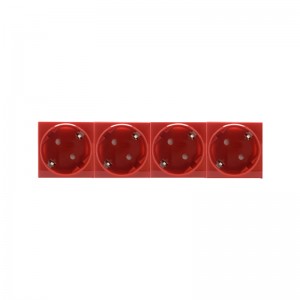

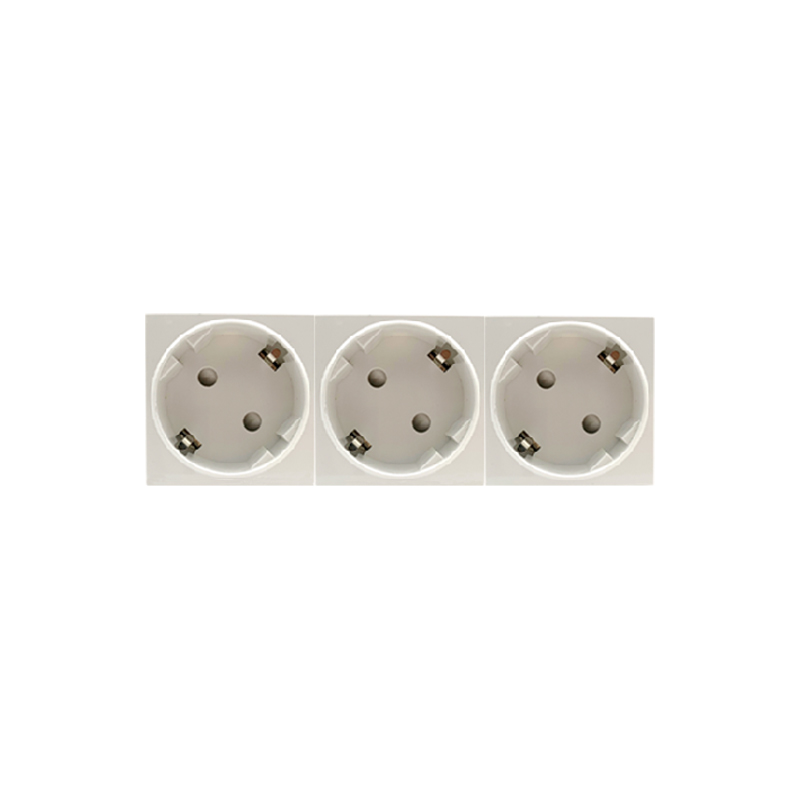

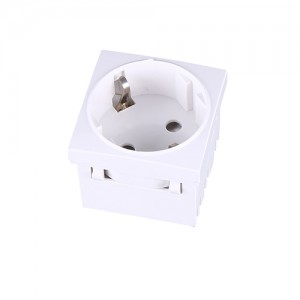

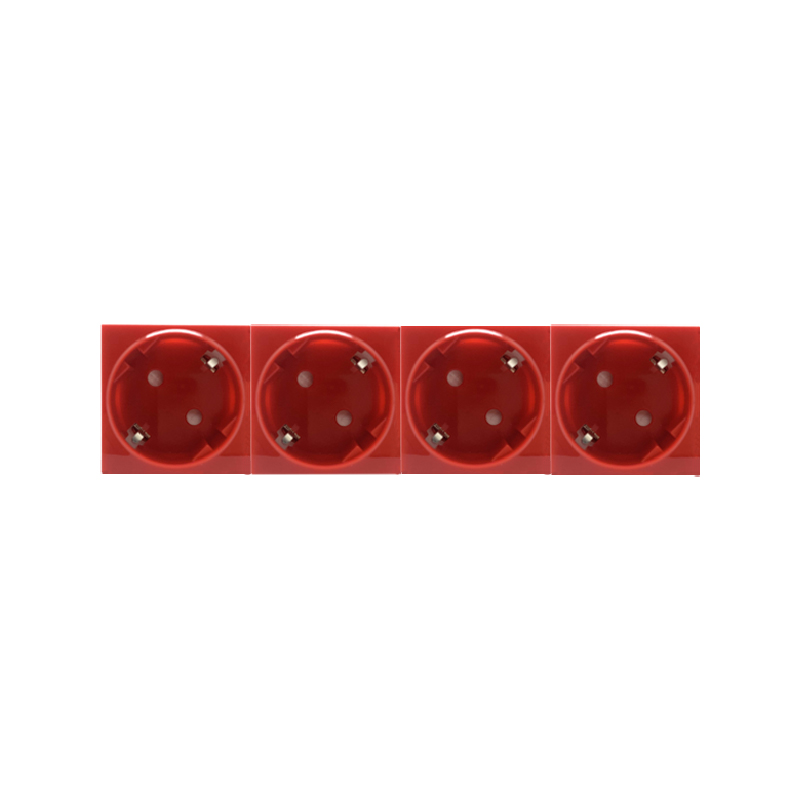

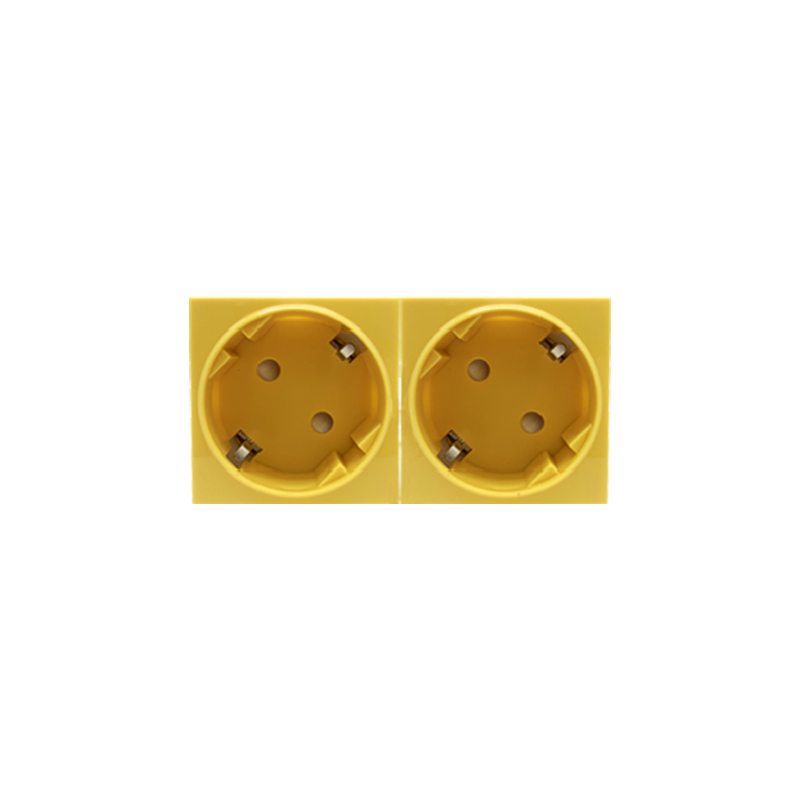

45*45mm 16A EU Germany Socket Schuko Adaptor European Module

Short Description:


  • Port: Wenjiang
  • Technical Parameters

    Product show

    FEATURE

    Outline drawing

    Application

    Product Tags

    Serial No. Parameter Description
    1 Product module F15B
    2 Panel Material PC 94-V0
    3 Inside material Tin phosphorous bronze
    4 Surface finish Glossy
    5 Input voltage 250v/AC 50~60Hz
    6 Rated current 16A
    7 3 pin Withdrawal force 54N
    8 2 pin Withdrawal force 2N-18N
    9 Durability ≥5000
    10 Color customization
    11 Number of terminals 2 screw terminals
    12 Outlet EU socket
    13 IK degree of protection IK04
    14 IP degree of protection IP21
    15 Dimension of product 45*45mm

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10℃~+40℃;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure ≥3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ

    Application:

    1.Feature of Safewire IP44 pop up 45×45mm  modules :

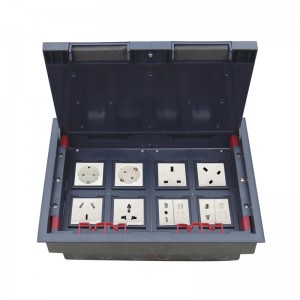

    1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.

    2.Easy-Installation:snap-indesign.

    3.Easy wiring,tooless installation,save cost!

    2.Advantage of Safewire IP44 pop up 45×45mm  modules:

    1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
