Safewire FZ-521WF-S

Short Description:


  • Port: Wenjiang
  • Product Detail

    Product Tags

    Characteristic:

    1

    Model

    FZ-521WF-S

    6

    HS Code

    8536690000

    2

    Brand Name

    Safewire or OEM brand

    7

    Market standard

    Customized

    3

    Type

    Desktop socket

    8

    Place of origin

    Zhejiang , Wenzhou, China

    4

    Color

    Silver/black

    9

    Frequency

    50Hz~60Hz

    5

    Grounding

    Standard grounding

    10

    Current Type

    AC

    Technical parameters :

    Serial No. Parameter Description
    1 Panel Material

    Aluminum alloy

    2 Surface finish

    Electroplated/Painted/Power sprayed

    3 Color

    Silver/black/white

    4 Panel Dimension(mm)

    340×130

    5 Cutout(mm)

    328×116

    6 Height of product(mm)

    75

    7 Bottom box size(mm)

    325*114

    8 Bottom box material

    Plastic

    9 Capacity of modules /Interface size

    9 ways 45*45mm modules

    10 Configuration

    Wireless charger+Power outlet+Data outlet or USB charging : Customized as required

    11 Cable length

    1.5m, 2m,2m or required length

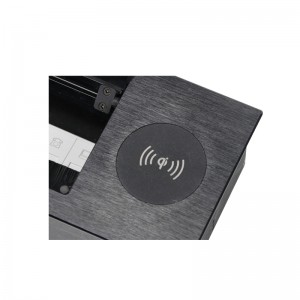

    Wireless charger parameters :

    Serial No. Parameter Description
    1 Recognition function

    QC2.0/QC3.0/DC source

    2 Compatible Standard

    WPC-Qi V1 2.4

    3 Rating

    110K HZ~205HZ, 5VDC,+_5%

    4 Output

    1A/1.1A 5VDC/9VDC;+-5%

    5 Distance of transmitter and receiver

    2mm~6mm

    Application:

    Application

    CE certificate by LVD test report

    certificate

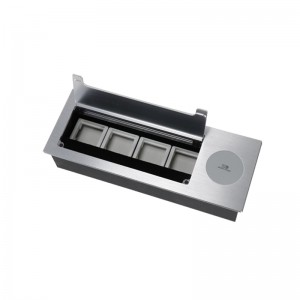

    Product show:

    product show

    Features:

    1) This hidden structure provides the user with a compact, clean and convenient connectivity solution;

    2) Made from die-casting aluminum alloy and painted ;

    3) Wireless charging function as per QI standard;

    4) With brush to protect cables from scratch;

    5) Bigger capacity international 45*45mm modules

    6) More plug top clearance 45/90 degree angle when plug into receptacle



    Wireless charger module Features

    1) Short circuit protection;

    2) Overcurrent protection;

    3) Over temperature protection;

    4) Prarasitic metal object Dect.

    5) Disnormal object Dect.

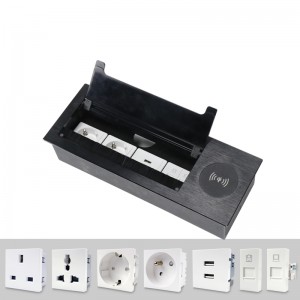

    Available sockets or modules types:



    123

    FZ-521 Outline drawing:

    FZ-521 Outline drawing2



    Installation Guide

    Installation Guide



    1. Before installation, please opening pore on the table-board which is asked to install according to related product specification.(unit:mm)

    2.Load the function key panel into a base box.

    3.Secure the panel and bottom box

    4.Secure the surrounding bottom box with eight screws

    5.Place the product in a pre-opened table top



    Attentions:

    1.Use only in normal temperature.Do not expose to conditions that harm to the product’s safety,such as humidity,dusty and corrosives.

    2.Properly connecting and installing according to the rated voltage ,frequency,rated current and function identification of the product

    3. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.



    Safety Warning:

    1)This is a class I product and must be earthed

    2)This product must be installed/wired by a qualified electrician

    3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off

    4)For indoor use only



    Package: 20Pcs inner box into a master carton.Poly bag with box packing.

    Package
