HTD-250K

Short Description:


  • Port: Wenjiang
  • Technical Parameters

    Features

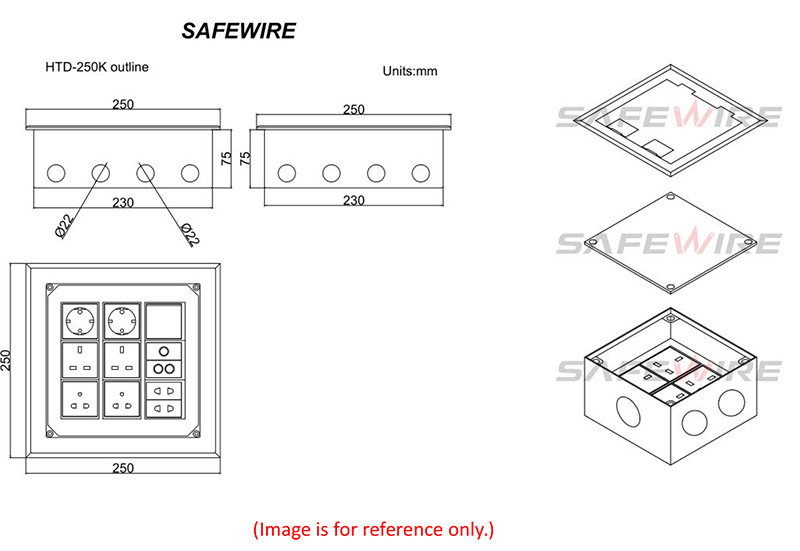

    Outline drawing

    Application

    Product Tags

    Serial No. Parameter Description
    1 Panel Material Brass alloy/Stainless steel
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 250*250
    4 Cutout(mm) 230×230
    5 Capacity of modules 18 ways modules
    6 Mounting type Horizontal installation
    7 Bracket material Zinc Alloy & Alu Alloy
    8 Sink box Material Steel+Zinc plated
    9 Base box dimension(mm) 230*230*75
    10

    Available modules

    45*45/22.5*45(mm)






  • Previous:
  • Next:

  • 1.Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor

    2.Lid degree against floor:90/180 degree.HTD-250NK(P) : Top cover keeps parallel with floor (180°) when opening.

    3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .

    4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.

    5.HTD-250AK(P) : with cavity depth 20mm.

    HTD-120K官网文案A200423 OK H-1



    Available for F type 45*45mm type or D type23*26mm international sockets or modules types:




    HTD-250K官网文案 A200423 OK H-3
