| Serial No. | Parameter | Description |
|
1 |
Panel Material | Brass alloy/Stainless-steel |
| 2 | Surface finish | Wire drawing/Polishing/Spray painting |

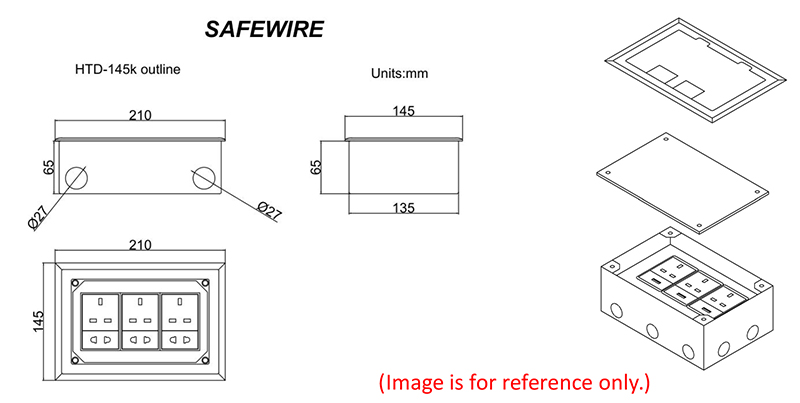

| 3 | Panel Dimension(mm) | 210*145 |
| 4 | Cutout(mm) | 200×135 |
| 5 | Capacity of modules | 9 ways modules |
| 6 | Mounting type | Horizontal installation |
| 7 | Bracket material | Zinc Alloy & Alu Alloy |
| 8 | Base box dimension(mm) | 200*135*75 |
| 9 | Available modules | 45*45/22.5*45(mm) |

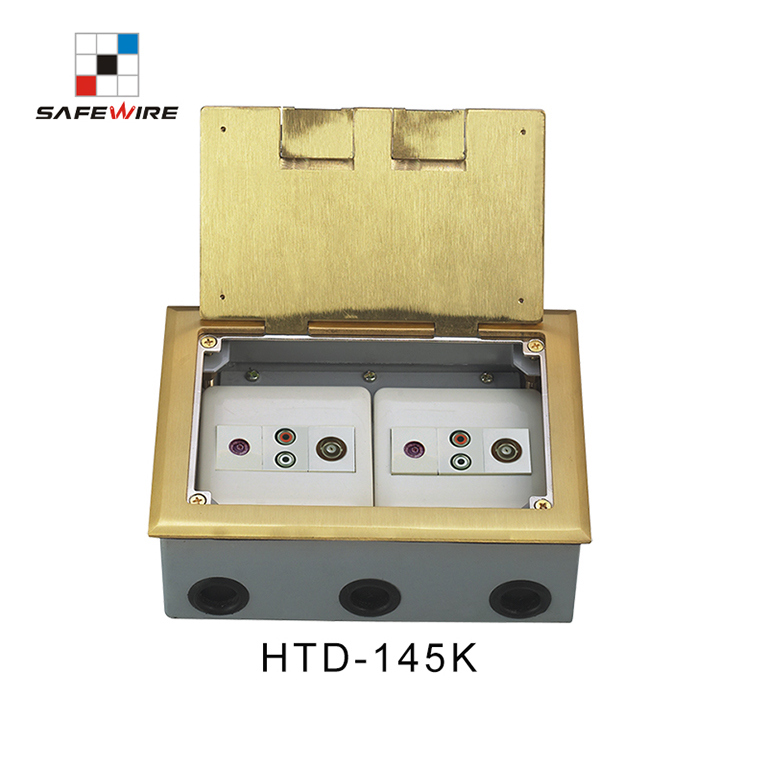

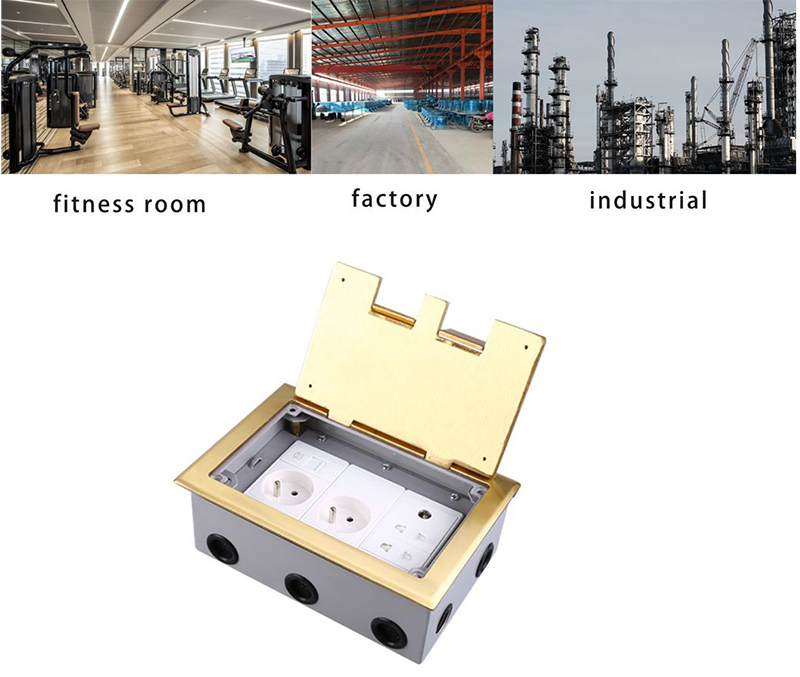

1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .
2.Modules Inside installation:horizontally/side-mounting.
3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .
4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.
Available for F type 45*45mm type or D type23*26mm international sockets or modules types:
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
