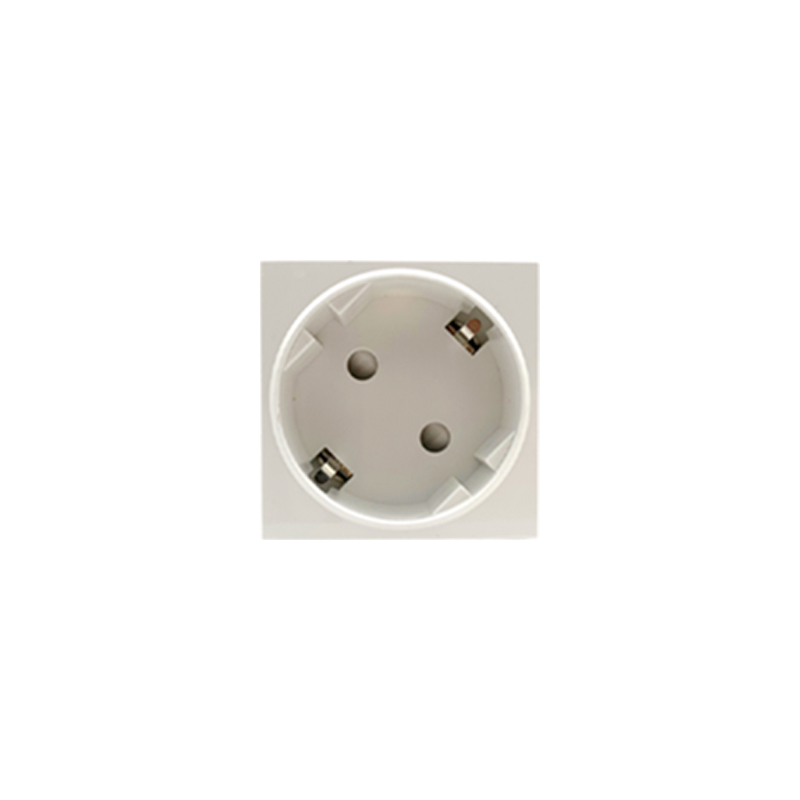

Safewire F16B-2 45*45mm 16A EU Germany Socket Schuko Adaptor European Module

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    F15B Outline drawing:

    Product Tags

    Characteristic:

    Serial No. Parameter Description
    1 Panel Material PC 94-V0
    2 Inside material Tin phosphorous bronze
    3 Surface finish Glossy
    4 Input voltage 250v/AC 50~60Hz
    5 Rated current 16A
    6 3 pin Withdrawal force 54N
    7 2 pin Withdrawal force 2N-18N
    8 Durability 5000
    9 Color customization
    10 Number of terminals 2 screw terminals
    11 Outlet European sockets
    12 IK degree of protection IK04
    13 IP degree of protection IP21
    14 Dimension of product 45*45mm



    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10~+40;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20~+85;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure 3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ

    Application:

    1.Feature of Safewire IP44 pop up 45×45mm  modules :

    1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.

    2.Easy-Installation:snap-indesign.

    3.Easy wiring,tooless installation,save cost!

    2.Advantage of Safewire IP44 pop up 45×45mm  modules:

    1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.

    2.More color with affordable MOQ.

    3.CE Certificated and supply with support,frame and coverplate accessories etc.

    3.Specification of Safewire IP44 pop up 45×45mm  modules:

    Modules/electrical outlet/connector/socket/sockets/power outlet/socket outlet/data/outlet service data/multimedia data/modular wire electrical socket/USB socket

    A)catagories of Safewires 45×45mm modules :

    B)Safewires 45×45mm modules in cable management.

    RoHS Certificate of Compliance:Conforms with the Directive 2002/95/EC (ROHS) regarding to limitation of dangerous substances,in particular to clause 4 which forbids the use of  substances:
