Characteristic:
| Serial No. | Parameter | Description |
| 1 | Panel Material | PC 94-V0 |
| 2 | Inside material | Tin phosphorous bronze |
| 3 | Surface finish | Glossy |
| 4 | Input voltage | 240v/AC 50~60Hz |
| 5 | Rated current | 15A |
| 6 | 3 pin Withdrawal force | 54N |
| 7 | 2 pin Withdrawal force | 2N-18N |
| 8 | Durability | ≥5000 |
| 9 | Color | customization |
| 10 | Number of terminals | 2 screw terminals |
| 11 | Outlet | Australia socket |
| 12 | IK degree of protection | IK04 |
| 13 | IP degree of protection | IP21 |
| 14 | Dimension of product | 45*45mm |
Environmental requirements
| Serial No. | Parameter | Description |
| 1 | Operating temperature | -10℃~+40℃;Operating |
| 2 | humidity | 20%~90% RH |
| 3 | Storage temperature | -20℃~+85℃;storage |
| 4 | humidity | 10%~95% RH |
| 5 | Resistance to pressure | ≥3Kv/AC 1min |
| 6 | Isolation resistance | 500v DC/100MΩ |
Application:

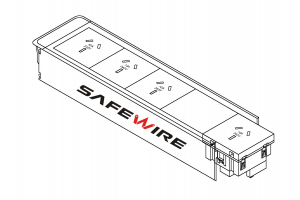

1.Feature of Safewire IP44 pop up 45×45mm modules :
1.Applicable for wiring of Distribution box ,wall switch,floorbox and electrical socket etc.
2.Easy-Installation:“snap-in“design.
3.Easy wiring,tooless installation,save cost!
2.Advantage of Safewire IP44 pop up 45×45mm modules：
1.Full range power socket + Switch+Data+USB charger+Multimedia modules etc.
