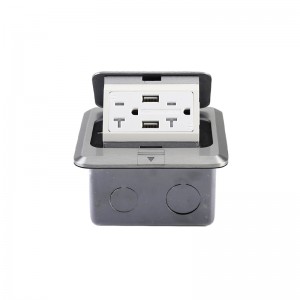

Technical parameters & characteristic :
1) Working environment:
- The environment temperature:-5℃~/40℃
- The rated voltage：100V~~250V
- Rated current：10A、13A、16A、20A
2) Characteristic:
|
1 |
Model |

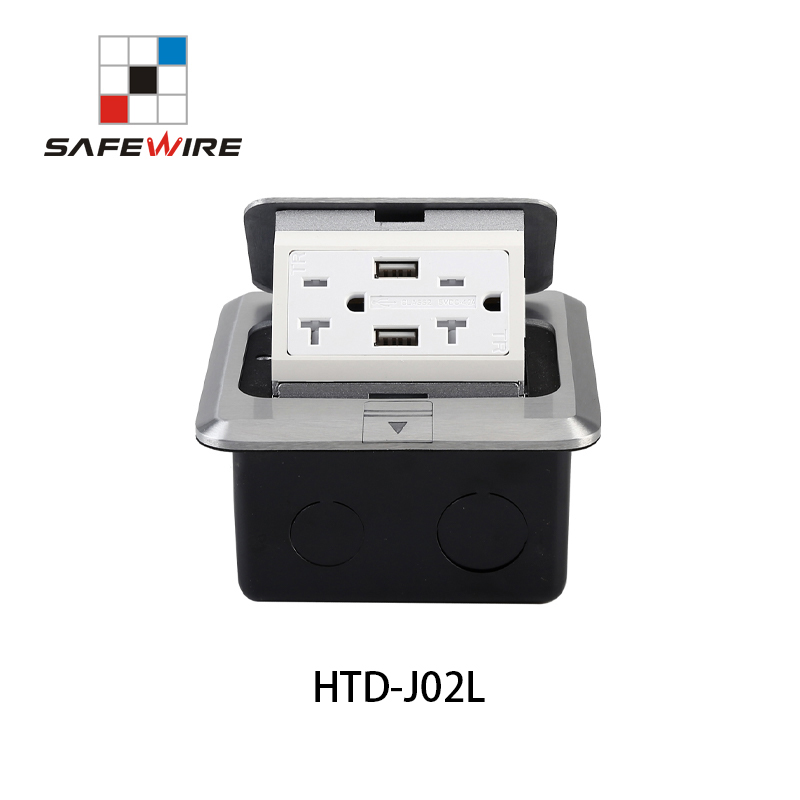

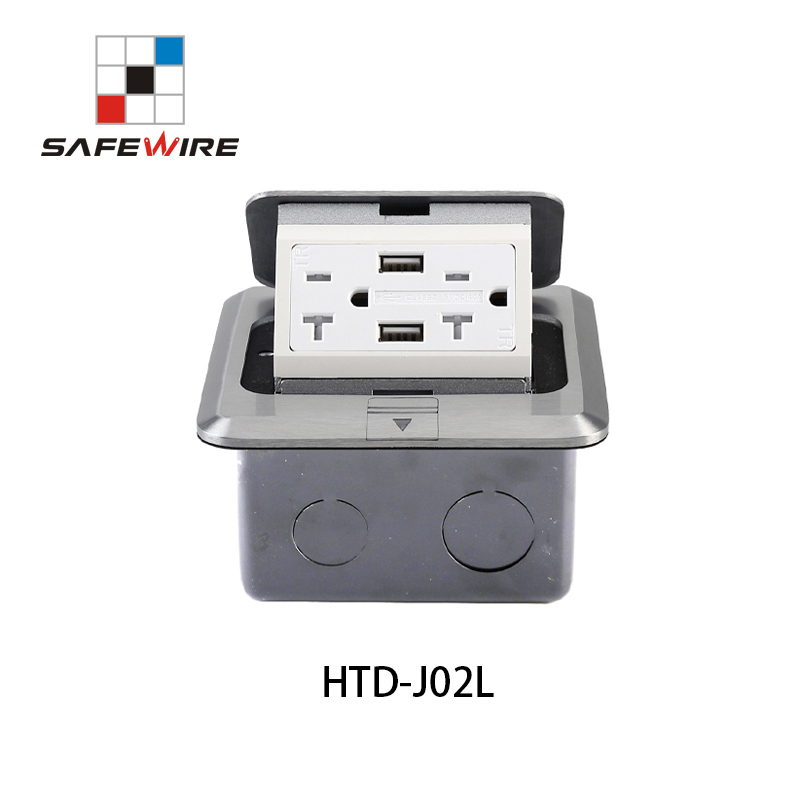

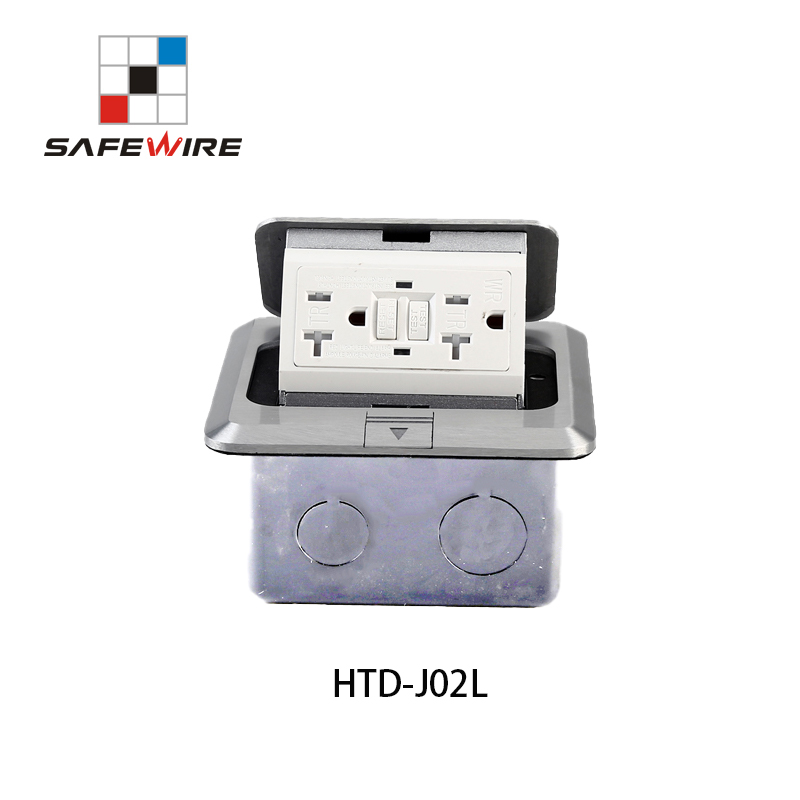

HTD-J02L |
6 |
HS Code |
8536690000 |
|
2 |
Brand Name |
Safewire or OEM brand |
7 |
Market standard |
Customized |
|
3 |
Type |
floor socket |
8 |
Place of origin |
Zhejiang , Wenzhou, China |
|
4 |
Color |
Golden, silver |
9 |
Frequency |
50Hz~60Hz |
|
5 |
Grounding |
Standard grounding |
10 |
Current Type |
AC |
3) Technical parameters :
|
Serial No. |
Parameter |
Description |
| 1 | Panel Material | Brass alloy/Alu alloy |
| 2 | Surface finish | Wire drawing/Polishing/Spray painting |
| 3 | Panel Dimension(mm) | 120*120 |
| 4 | Cutout(mm) | 105×105 |

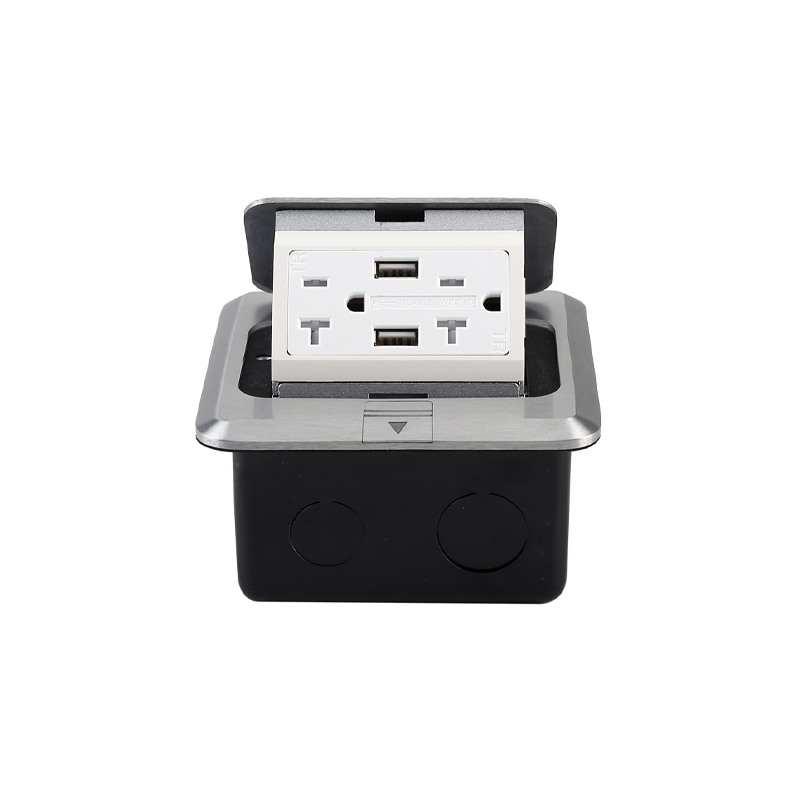

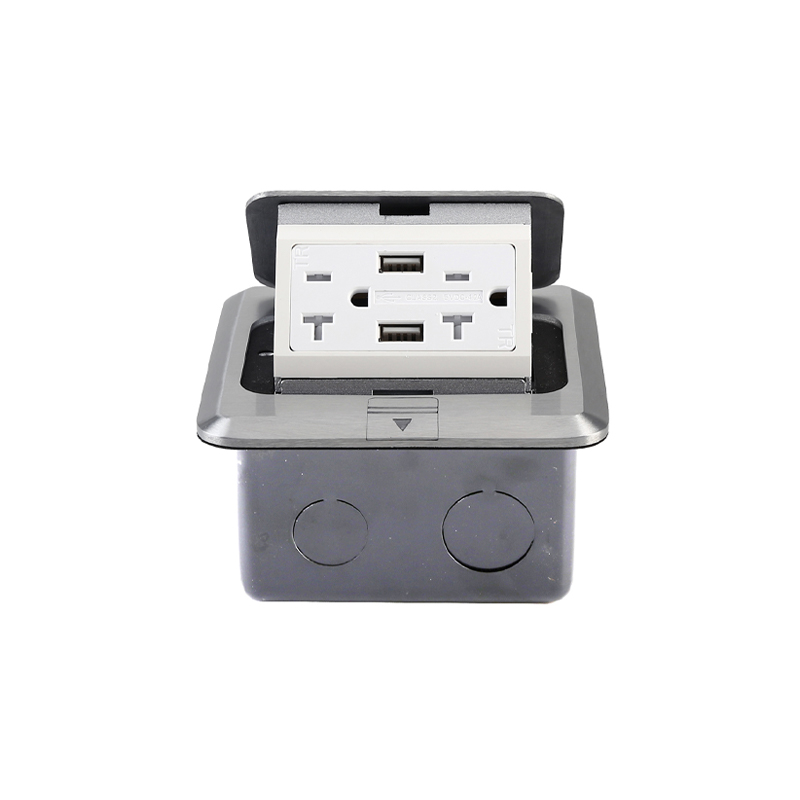

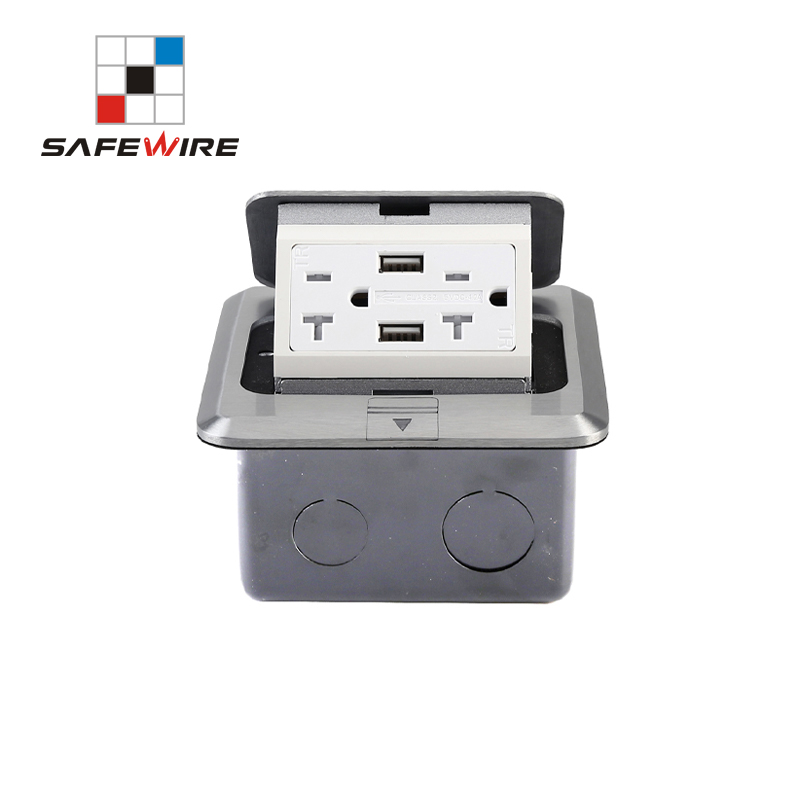

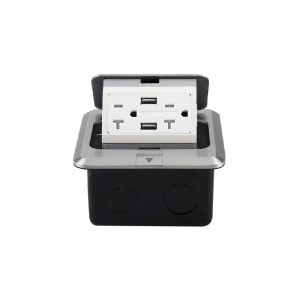

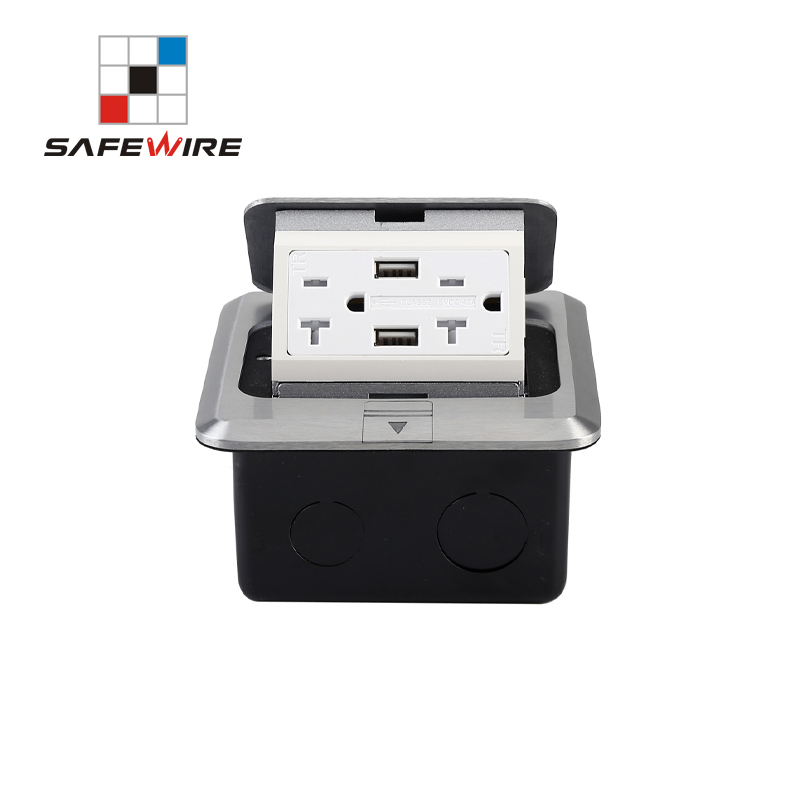

| 5 | Capacity of modules | GFCI module with USB port |
| 6 | Bracket material | Zinc Alloy & Alu Alloy |
| 7 | Sink box Material | Steel+Zinc plated |
| 8 | Sink box Thickness: | 1.2mm |
| 9 | Available modules: | 45*45/45*22.5(mm) |
| 10 | Damping device (DP): | Normal Pop-up & Soft Pop-up available |
| 11 | N.W(kg) | 0.89(Brass alloy);0.72(Alu alloy) |
| 12 | G.W(kg) | 18.6 (Brass alloy);15.2(Alu alloy) |
| 13 | Carton size(cm) | 44x28x27.3 |
Features:
- Fast-wiring: more terminal block for 1~2.5m²rigid wire or 0.5~6m²prepared flexible wire.
- Easy-Installation: Patented technology of clip flush mounting frame of modules replacement. Save labor cost.
- Reliable push button: ＞5000 times.
- Brass / Aluminum floor box with GFCI / with USB port.
Installation Guide
- Cut out size ：120*120mm.Install the bottom box with panel into the specified location.
- Screw mounting frame and panel(for desktop only).
- Fix the panel and bottom box with screws(This item is for ground installation only).
- ADjust the tightness of all wiring lines (no influence on opening).
Attentions:
1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.
2.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
3.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.
4. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.
5.Make sure that the sealing under plate will be jointed tightly with the earth’s surface,avoiding seepage
Safety Warning：
1.This is a class I product and must be earthed
2.This product must be installed/wired by a qualified electrician
3.For indoor use only.
4.For concrete floor.
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
