| Serial No. | Parameter | Description |
| 1 | Panel Material |
Aluminum alloy+PC |
| 2 | Panel Dimension (mm) |
324*109*104 |
| 3 | Cut out (mm) |
298*104 |
| 4 | Capacity of modules /Interface size |
9 ways 45*45mm modules |
| 5 | Cable length |
1 M cord international; This configurations and length of wire is customization |
| 6 | Configuration |
Power outlet+Data outlet or USB charging : Customized as required |
| 7 | Time of engine motor |
MAX.1000h |
Environmental requirements
| Serial No. | Parameter | Description |
| 1 | Operating temperature | -10℃~+40℃;Operating |
| 2 | humidity | 20%~90% RH |
| 3 | Storage temperature | -20℃~+85℃;storage |
| 4 | humidity | 10%~95% RH |
| 5 | Resistance to pressure | ≥3Kv/AC 1min |
| 6 | Isolation resistance | 500v DC/100MΩ |
Application:
1.Feature of Safewire Recessed socket :
1.Modular design for Configuration of power supply and communication,45*45mm modular,86 type switch and Internation Brand data etc.
2.Recessed in the top of desk/table , simply press down to open it with Spring clip.
3.Be closed while device have been plugged in and without crushing the cables.
2.Advantage of Safewire Recessed socket :
1.Configuration and dimension can be customization.
2.Anodised Ev1 Aluminum/Brushing wire drawing flap , optional black poweder-coated housing.
3.Adjustable built-in frame fitting for more optional plug clearance.
3.Specification of Safewire Recessed socket:
Mount table socket/hidden socket/power dock/flush mounting socket/horizontal desk socket/multi-media box/desk top outlet/table modular/power module/recessed socket/recessed desk socket /recessed table socket/recessed table outlet/surface mount data/furinture outlet

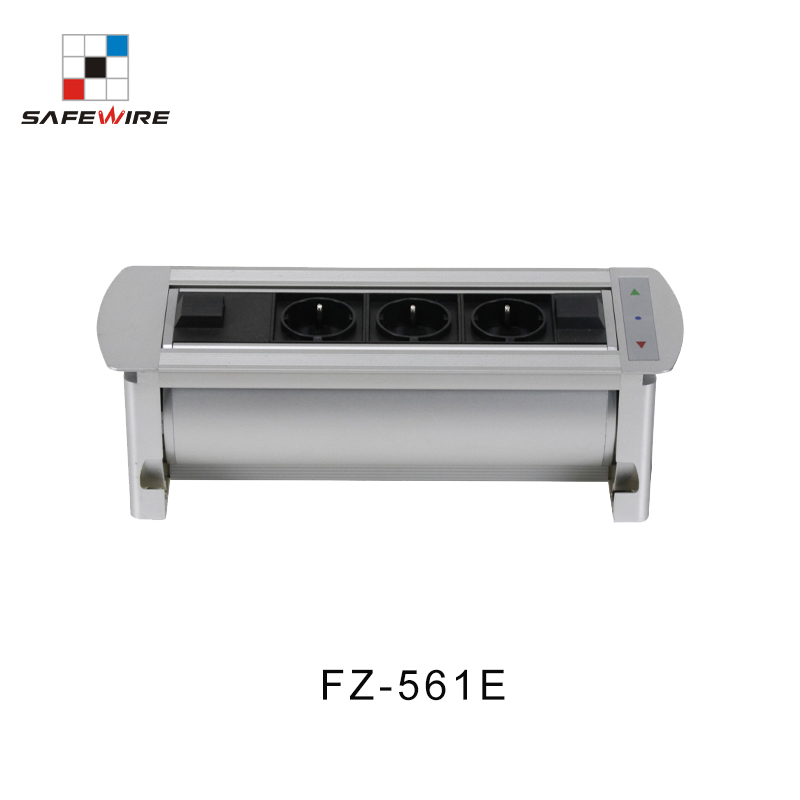

A)Product dimension:
B)45*45mm modules&socket:
1.Round shape plate flush mounting with offical table.
2.protection rotation with photo electric dector.
3.Available for F type 45*45mm type or D type22.5*45mm international sockets or modules types:as VGA，HDMI,Ø3.5Audio，USB and AV access etc.
4.Length and cord，plug is customzation.
5. The indicator in panel light when power up.
Available sockets or modules types:
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
