| Serial No. | Parameter | Description |
|
1 |
Material |
Aluminum 6063, PC zinc alloy |
|
2 |
Panel Material |
Stainless/Brass |
|
3 |
Surface finish |
Painted/Oxygenated |
|
4 |
Panel Dimension(mm) |
φ124 |
|
5 |
Cutout(mm) |
φ100 |
|
6 |
Dimension of product(mm) |
380 |
|
7 |
Capacity of modules /Interface size |
8 ways 45*45mm modules |
|
8 |
Configuration |
Power outlet+Data outlet or USB charging : Customized as required |
|
9 |
Cable length |
1.5m, 2m,3m or required length |
|
10 |
Available modules |
45*45mm Type series |
Application:

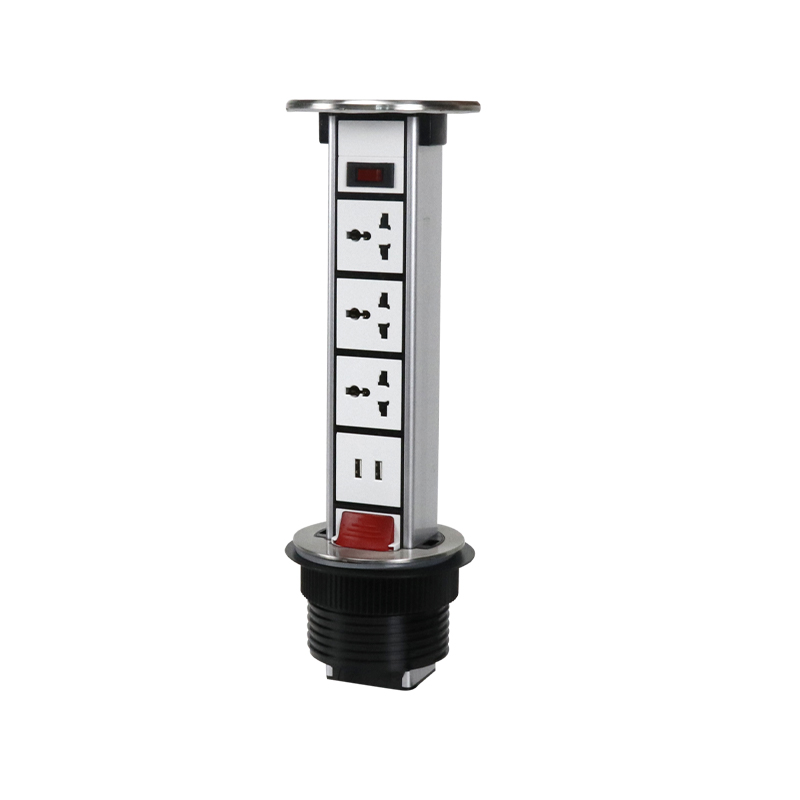

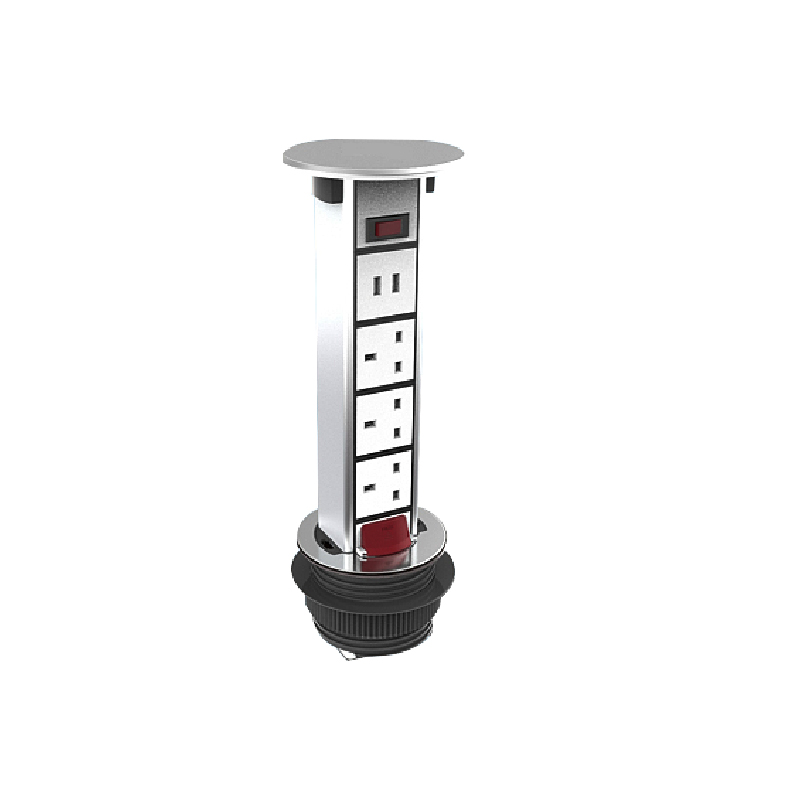

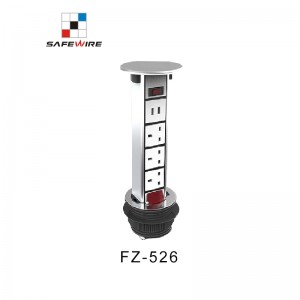

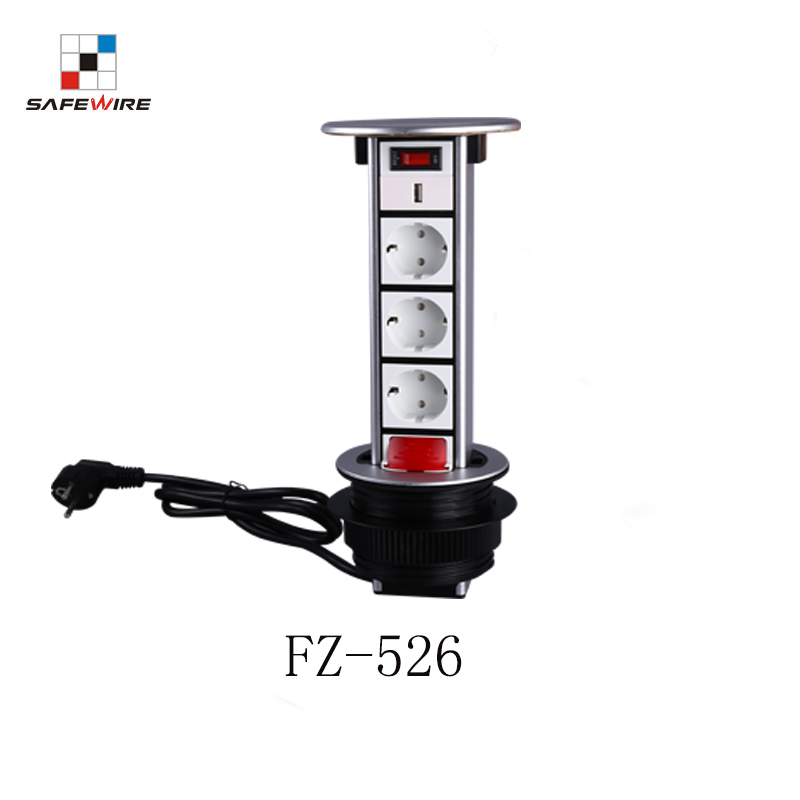

1.Feature of Safewire Cylindrical socket:
1.IP44 Level protector shutter sock
2.45 degree socket, more easy plug into unites.
3.Optional motorised pop up with bluetooth/USB and wireless charge etc.
2.Advantage of Safewire Cylindrical socket :
1.Modular design for configuration of power supply and communication of 45×45mm modules.
2.More optional ɸ 80mm,ɸ100,ɸ124mm for grommet hole in furniture.
3.Anodised EV1 Aluminum Brushing wire drawing or black poweder-coated housing.
3.Specification of Safewire Cylindrical socket:
Vertical socket/pop up socket power management/cable wells-modular/table console/table socket/kitchen socket vertical counter top socket/pneumatic socket/pneumatic socket/pneumatic power socket/pneumatic pop up socket/pneumatic power outlet/cabinet socket
A)Product dimension:

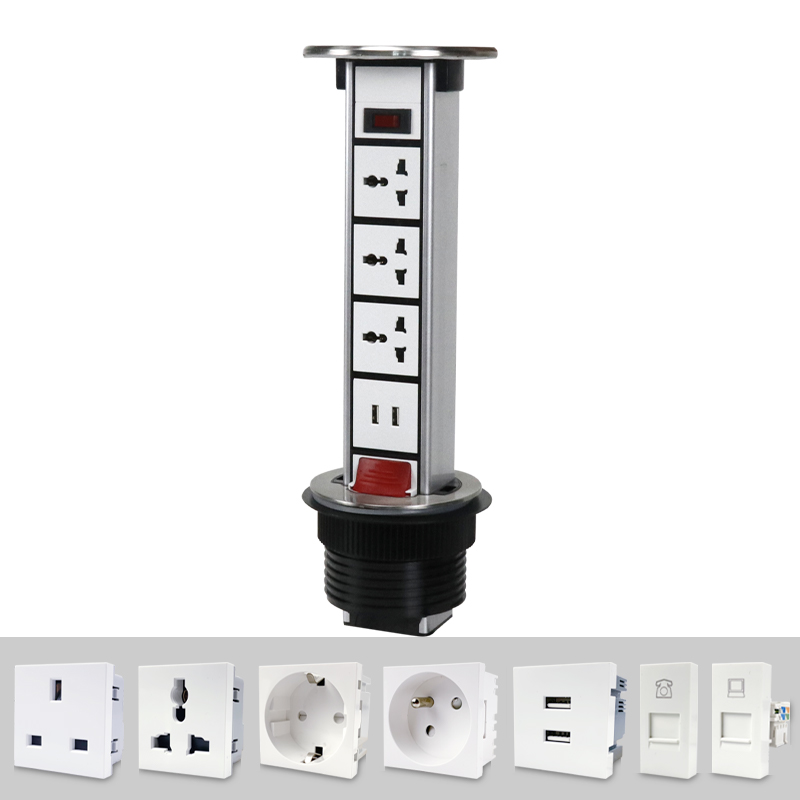

B)Available 45×45mm modules/socket/accessories:
C) Safewire Cylindrical socket application in different system:
Installation Process
- Cut out φ100mm.
- Rotate the mounting ring thread first and remove it.
- Put the product into the opened hole.
- Rotate and tighten the mounting ring thread and secure the product to the table.
Attentions:
1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
2. All dimension quoted are nominal only. Drawings , images and text are for illustrative purposes only and product details and dimension are subject to change without notice.
Safety Warning:
1)This is a class I product and must be earthed.
2)This product must be installed/wired by a qualified electrician.
3)before installation/maintenance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off.
4)For indoor use only.
vailable for 45*45mm type international sockets or modules types:
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
