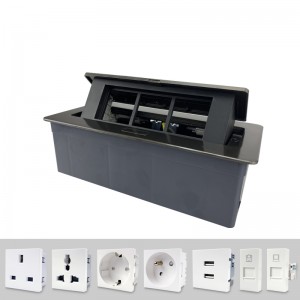

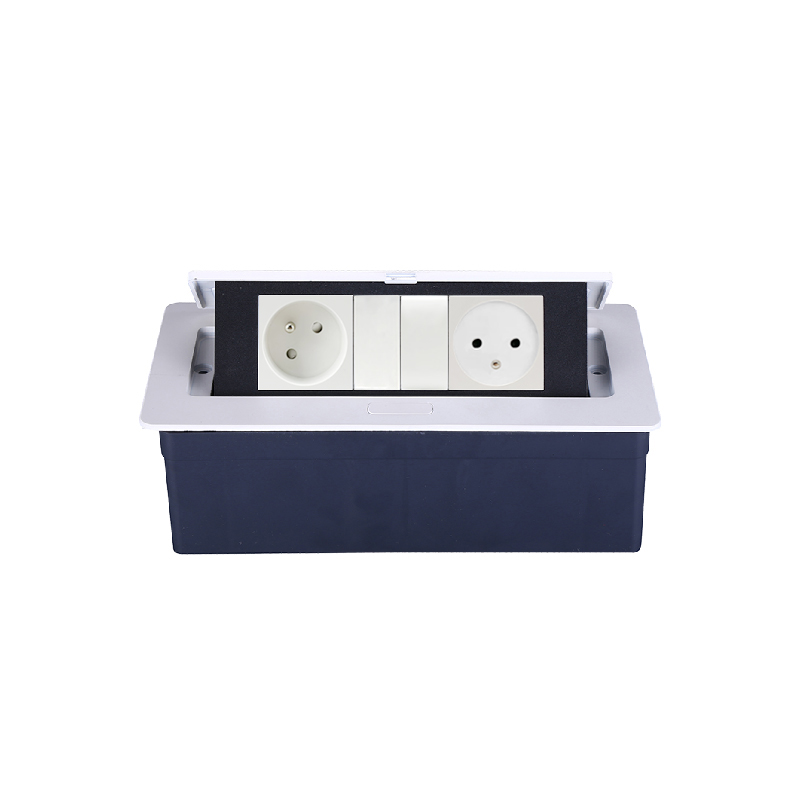

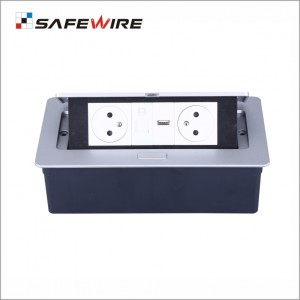

Desktop socket 45*45mm modules

Short Description:



Serial No. Parameter Description

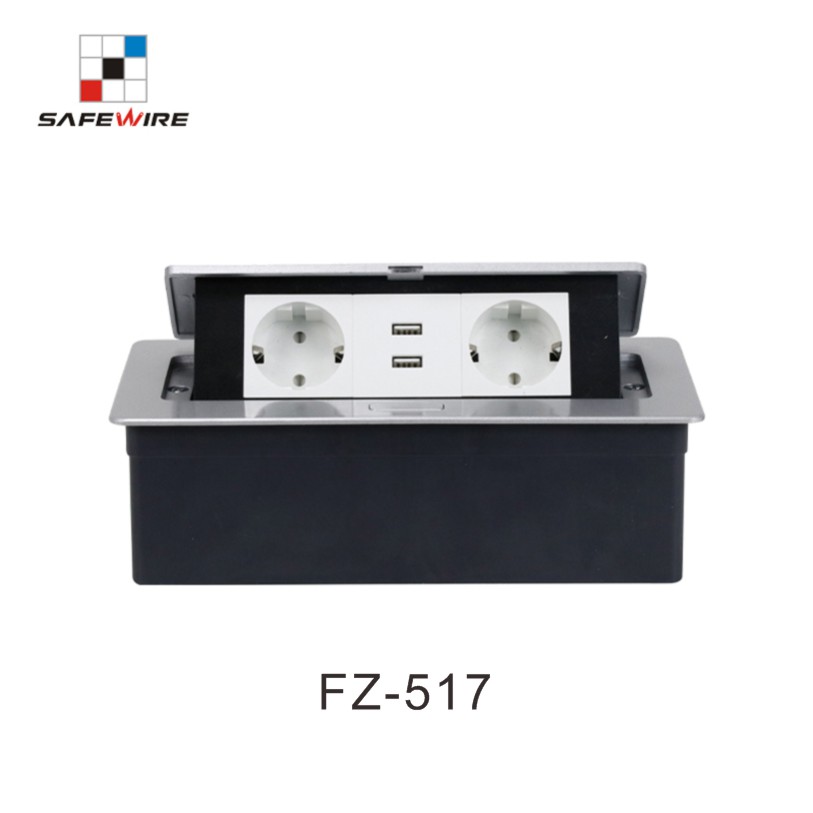

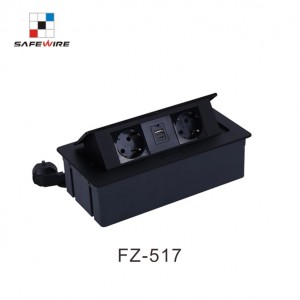

1 Safewire item

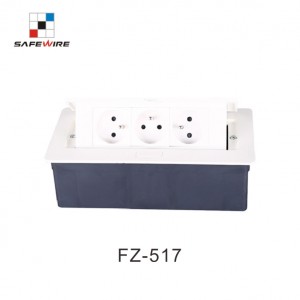

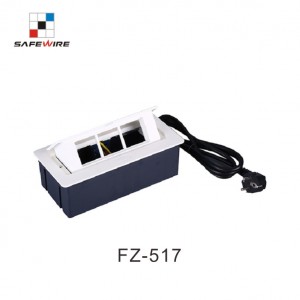

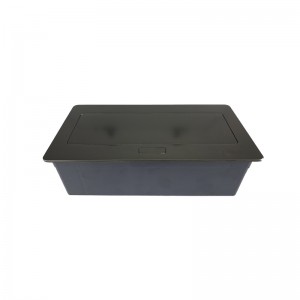

FZ-517

2 Surface finish

white

3 Panel Dimension(mm)

240×120

4 Cutout(mm)

231×112

5 Height of product(mm)

70

6 Bottom box size(mm)

229*110*70

7 Bottom box material

Plastic

8 Capacity of modules /Interface size

6 ways 45*45mm modules

9 Configuration

Power outlet+Data outlet or USB charging : Customized as required

10 Cable length

1.5m, 2m,or required length



_4









_3





_1


  • Port: Wenjiang
  • Pop up with damping device: silver, white ,black color
  • 45mm socket: 45mm RJ45
  • Technical Parameters

    Features

    Outline drawing

    test report

    Application

    Product Tags

    Serial No. Parameter Description
    1 Panel Material

    Aluminum alloy

    2 Surface finish

    Electroplated/Painted/Power sprayed

    3 Color

    Silver/black/white/Dark green/Graphite black

    4 Panel Dimension(mm)

    240×120

    5 Cutout(mm)

    231×112

    6 Height of product(mm)

    70

    7 Bottom box size(mm)

    229*110*70

    8 Bottom box material

    Plastic

    9 Capacity of modules /Interface size

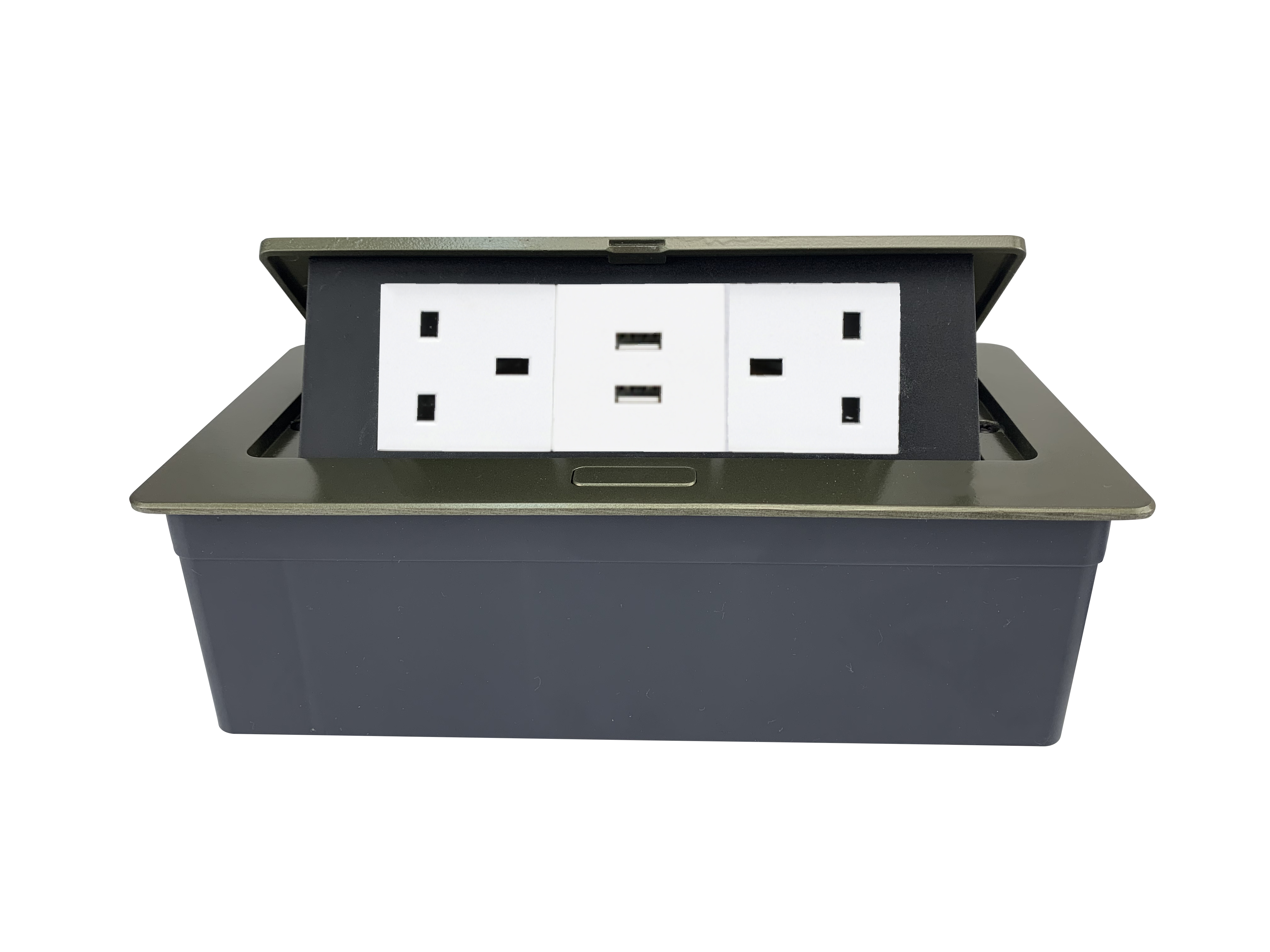

    3 BS socket

    10 Configuration

    Power outlet+Data outlet or USB charging : Customized as required

    11 Cable length

    1.5m, 2m,2m or required length



    Application:



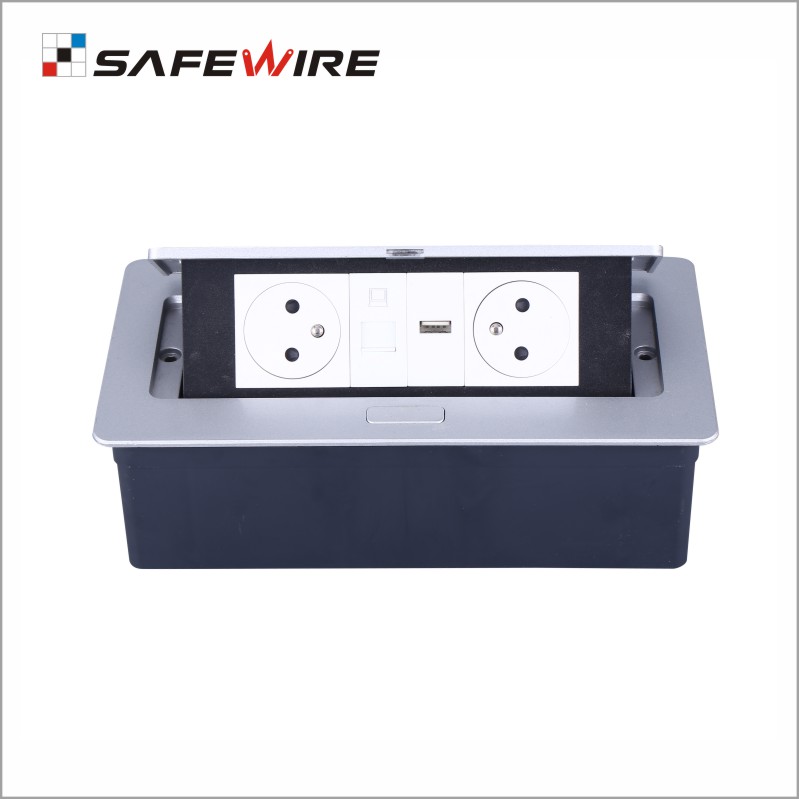

    1.Feature of Safewire pop up desksocket :

    1. 6 ways ,4 ways,45*45mm power Socket & Data

    2.Black/White/Silver/Gold/Graphite/Nicket chrane etc.

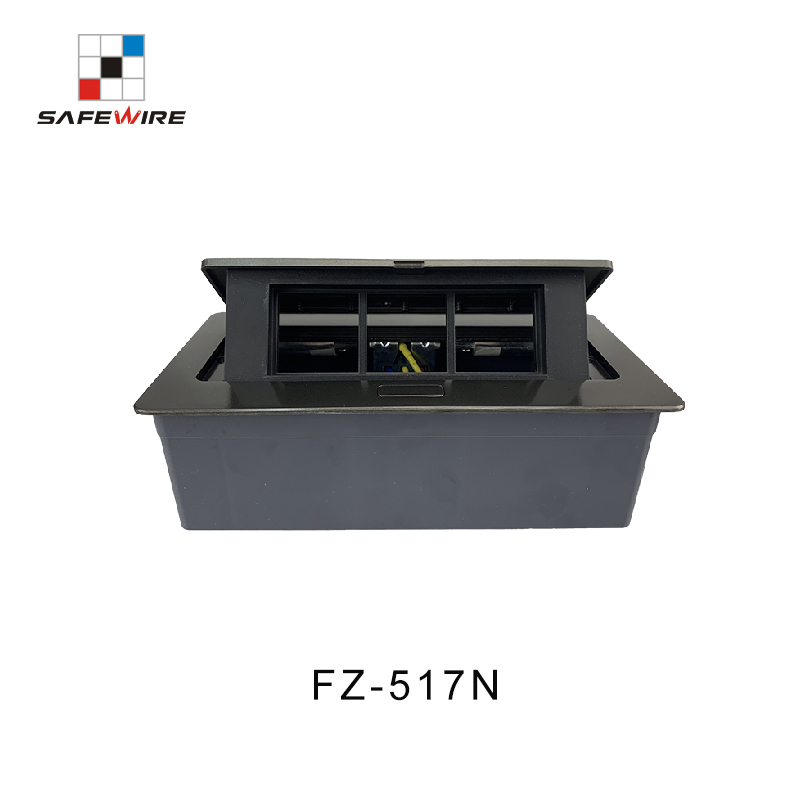

    3.2 bridge empty enclosure or complete socket with plug cable.

    2.Advantage of Safewire pop up desksocket :

    Table socket / power socket/service outlet office socket/furniture socket table power outlet/pop up socket/hotel socket/table recess console/power dock table mounts socket

    1.IP44,Aluminum alloy plate + UL94 PC fire retardant box , More higher insulation,more safety.

    2.45mm snap-in socket+ 2 bridge support + screw fixing box,Easy Installation& replacement save labor cost.

    3.45 degree/180 degree plug with socket + IP44 pop up 45mm socket with shutter,more best plug.

    3.Specification of Safewire pop up desksocket:

    A)Product dimension:

    B)45*45mm modules&socket:

    Installation Process



    1. Cut out as specification sheet.
    2. put the bottom box into cut-out hole,punch the self-tapping screw and fix the bottom box.
    3. Remove plastic frame fixing socket modules.Assembly the socket or data Jack into the plastic frame and press frame ensure them combine tightly.
    4. Keep socket modules connected by inner wire (it should be copper core 1.5mm29~20 wire and length should be suitable).Then earthing and ensure inner wire tightly with modules.For fast connector terminal block,Just insert wire into block.
    5. Phone line ,TV receiving line sound box wire(it should thin wire)Just the wire length and tighten stop screw comathen.
    6. Put the panel on the bottom box and it with the hole.

    Attentions:

    1.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.

    2. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.



    Safety Warning:

    1)This is a class I product and must be earthed

    2)This product must be installed/wired by a qualified electrician

    3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off

    4)For indoor use only


  • Previous:
  • Next:

  • 1.The panel is by aluminum alloy of integrate die casting structure,more reliable surface finish protect from scratch.

    2.Easy InstallationOnly need screw the bottom box through hole of panel. Fast wiring HTJ-002 terminal block tight by 3 screw,0.5~6mm2soft/hard wire.

    3.Replace modules no need to change complete desktop socket,save labor lost.

    4.Fire retardant PC plastic bottom box.

    vailable for 45*45mm type international sockets or modules types:
