Safewire FT-10W Furniture Embedded 10W Table Wireless Charger Fast Charging Waterproof for Mobile Phone

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Product show

    Product Tags

    1) Product detail

    1 Product Name Accessed Wireless Charger
    2 Item No. FT-10w
    3 Materials Aluminum alloy +PC lens
    4 Rate of work 5W  7.5W  10W
    5 Input 5V/2A    9V/1.67A
    6 Output 5V/1A    9V/1.1A
    7 Charging Distance 2-20mm
    8 Voltage 110-240V
    9 Color Silver
    10 Certification CE,FCC,RoHS
    11 Product size dia. 96mm
    12 Product hight 14.5mm
    13 Hole size dia.95mm
    14 Wire length 1.2m / 1.8m / 2m
    15 Charge efficiency >70%
    16 Product weight 200g



    Application:

    1.Feature of Safewire Wireless charge:

    1.Charging distance over : 10-20mm,more complete wood,glass,porcelain,rock surface while charging.

    2.More 10 optional Grommet , flush-mounting,undertable,and column etc. design

    3.ABS/PC V-0 fire proof material with CE,FCC,RED,ROHS,Certificate

    2.Advantage of Safewire Wireless charge :

    Wireless charger/PD USB charger/QC 3.0 USB charger/recess wireless charger/recess socket/wireless socket /table socket/charging socket/mounting charging

    1.PD18W,QC3.0,5W/7.5W/10W/15W QI I-coilfast wireless charger

    ”"

    2.Teeth around and lock mechanism,more stable & Convenient Installation

    ”"

    3.Supply with Input USB Cable and accessories

    3.Specification of Safewire Wireless charge :

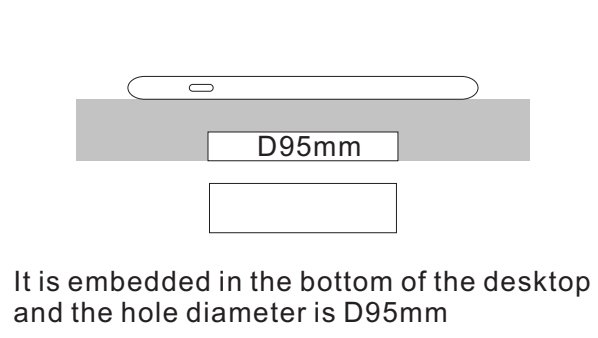

    A)Product dimension:

    ”"

    B) Overcurrect protection,over voltage protection Temperature control,smart clip,safety protection for you device.

    ”"

    C) Safewire Wireless charger Application in furniture table.

    ”"

    ”"

    Attentions:

    1.Dispose of trash in bottom box and prevent dirt and debris from entering inside.

    2.The sealing ring is closely attached to the smooth surface to prevent water leakage.

    3.When installing, pay attention to the opening direction,the length of the conductor to the bottom box shall not exceed 10cm,Set aside at least 200mm of cable.

    4.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).

    5.Please close cover when not used.



    Safety Warning

    1.This is a class I product and must be earthed

    2.This product must be installed/wired by a qualified electrician

    3.For indoor use only.

    4.For concrete floor/access floor.base on different bottom box.


  • Previous:
  • Next:

  • Product show

    图片1图片2图片3

    Installation procedure

    图片4 图片5 图片6 图片7



    Application:
