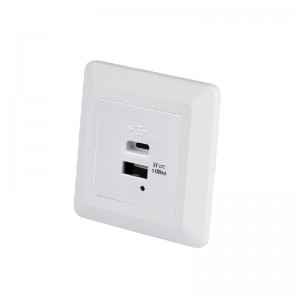

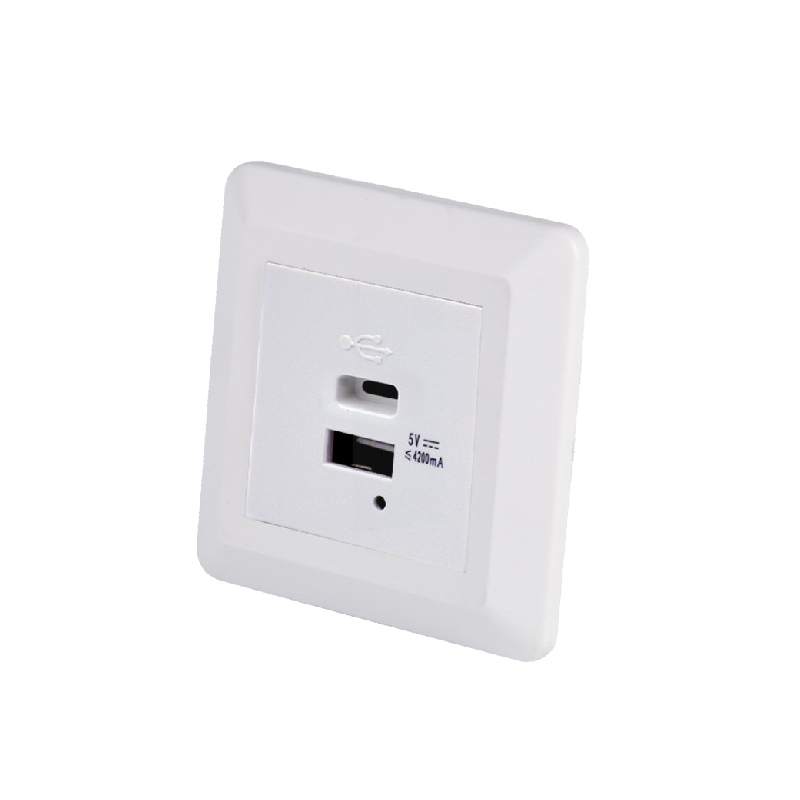

86*86mm Desktop USB Socket /Socket Outlet Box /USB Modules

Short Description:


  • Port: Wenjiang
  • Technical Parameters


    Outline drawing


    Installation Process

    Product Tags

    USB Characteristic:

    Serial No. Parameter Description
    1 Panel Material PC 94-V0
    2 Inside material Tin phosphorous bronze
    3 USB DC output 4.2A/5V
    4 Output voltage tolerance ±5%
    5 Output power Max.10.5W
    6 Efficiency 78%
    7 No-load power consumption Max 0.2W
    8 Input voltage 100~240v/AC 50~60Hz
    9 Color White RAL9003 Black
    10 Size 86*86mm
    11 Type Type A/Type C

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10~+40;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure 3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ






  • Previous:
  • Next:

  • 1

    1).Dual charge USB charging port: can be supplied for both 2 sets of equipment at high speed. Power supples stable and can be use of vaious types of global apple, Android and other devices.

    2). AC wall socket module.

    3).MAX 5V dual 4.1A USB output power, really output be certificated by CE,IEC60950 FOR LVD and IEC55024,IEC61000 for EMC;

    4). All materials be RoHS directive tested.



    1 .Remove the iron partition from under the panel

    2 .Just point the hole of iron plate and bridge/frame slot them together.

    3 .Screw and tighten them.

    4 .Clamp the plate into the iron plate.


    Safety Warning:

    1.This is a class I product and must be earthed.

    2.For indoor use only.

    3.This product must be installed/wired by a qualified electrician.



    1.Protect children from touch skirt of USB port.

    2.Ensure current and voltage as rating current/voltage .DO not overload.

    3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
