Short Description:

  • Port: Wenjiang
  • Technical Parameters


    Outline drawing

    Outline drawing

    Product Tags

    Serial No. Parameter Description
    1 Panel Material Plastic
    2 Surface finish Sandblasting
    3 Panel Dimension(mm) Ø115
    4 Base box Ga-Steel box body 125x125x75
    5 Capacity of modules /Interface size 3 ways modules
    6 IP Rating IP Rated 40 Closed and IP30 open
    7 Available modules 45*45mm Type series

  • Previous:
  • Next:

  • 1.Deepth adjustable:from 81mm adjustable up to 101mm;

    2.Fit 3 modules(22.5*45mm) as power socket, USB charger, data,switch;

    3.The degree between modules and  base box be rotate over 20 degree;

    Available sockets or modules types:

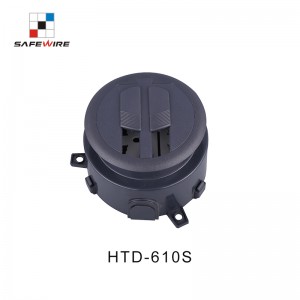

    HTD-610S官网文案A200425 ok-3
