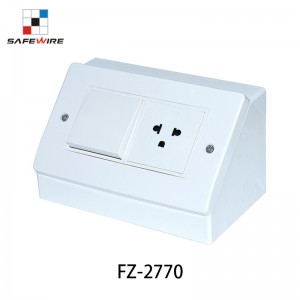

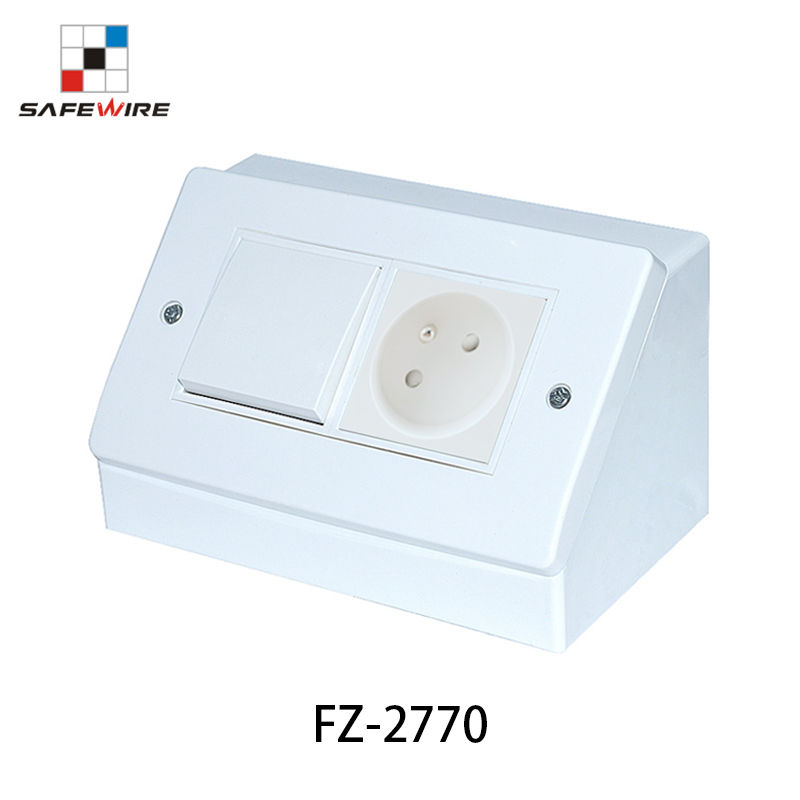

Safewire FA-2770 Desktop Extension data Socket with speaker Power Board

Quick Details:

Application:

1.Feature of Safewire Mounting table socket:

1.Modular design for Configuration of power supply and communication,45*45mm modular,86 type switch and Internation Brand data etc.

2.Fixed or Free-standing Installation.

3.Mounting wih bracket,without damage.

2.Advantage of Safewire Mounting table socket :

1.Configuration and dimension can be customization.

2.Anodised EV1 Aluminum Brushing wire drawing or black poweder-coated housing

3.Supply with bracket,plug,GST connect and accessories.

3.Specification of Safewire Mounting table socket :

Clamped table socket/mounted table socket/table modular/over desk power modular/power socket/pillar socket/pillar power/clamp-on desk socket/clamp-on power strip/clamped power strip/power dock/Alceminum house socket/Alceminum socket

A)Product dimension:

B)Safewire Clamped table socket application in furniture table.

C)Safewire optional of economical package  :

Attentions:

1.Use only in normal temperature.Do not expose to conditions that harm to the product’s safety,such as humidity,dusty and corrosives.

2.Properly connecting and installing according to the rated voltage ,frequency,rated current and function identification of the product

3. All dimension quoted are nominal only. Drawings , images and text are for illustrative purposes only and product details and dimension are subject to change without notice.

Safety Warning:

1)This is a class I product and must be earthed.

2)This product must be installed/wired by a qualified electrician.

3)before installation/maintenance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off.

4)For indoor use only.

1.Easy Access with 45 degree:The socket design is vertical, and the socket is tilted at 45 degrees, which is helpful for customers to get power in the desktop.
2.ABS Plastic:Made of high temperature resistant, not easy to scratch ABS material.This socket is dirt resistant.
3.4 ways 45*45mm modules design:4 way module socket that match Legrand Masic module socket.

FA-2770 Outline drawing

The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.

Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
