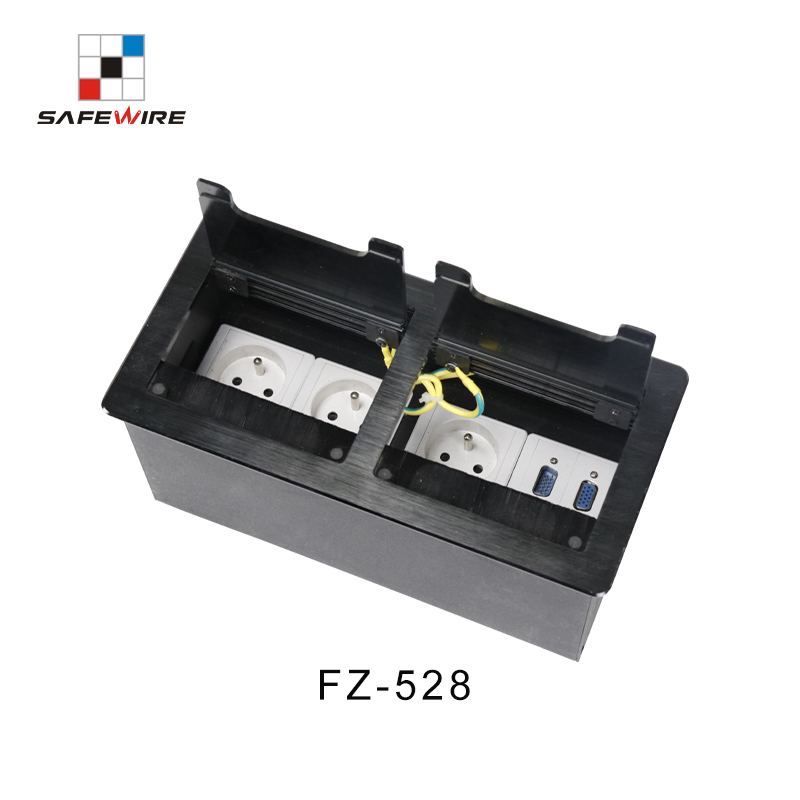

Surface Spray Paint Output Electrical Outlet/ Flipperbox /Flush Mounting Socket

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Features

    Outline drawing

    Application

    Product Tags

    Serial No. Parameter Description
    1 Panel Material

    Aluminum alloy

    2 Surface finish

    Electroplated/Painted/Power sprayed

    3 Panel Dimension(mm)

    265*130

    4 Cutout(mm)

    254*116

    5 Height of product(mm)

    120

    6 Bottom box size(mm)

    252*114

    7 Bottom box material

    ABS Plastic

    8 Capacity of modules /Interface size

    8 ways 45*45mm modules

    9 Configuration

    Power outlet+Data outlet or USB charging : Customized as required

    10 Cable length

    1.5m, 2m,2m or required length



    Application:

    1.Feature of Safewire Recessed socket :

    1.Modular design for Configuration of power supply and communication,45*45mm modular,86 type switch and Internation Brand data etc.

    2.Recessed in the top of desk/table , simply press down to open it with Spring clip.

    3.Be closed while device have been plugged in and without crushing the cables.

    2.Advantage of Safewire Recessed socket :

    1.Configuration and dimension can be customization.

    2.Anodised Ev1 Aluminum/Brushing wire drawing flap , optional black poweder-coated housing.

    3.Adjustable built-in frame fitting for more optional plug clearance.

    3.Specification of Safewire Recessed socket:

    Mount table socket/hidden socket/power dock/flush mounting socket/horizontal desk socket/multi-media box/desk top outlet/table modular/power module/recessed socket/recessed desk socket /recessed table socket/recessed table outlet/surface mount data/furinture outlet

    A)Product dimension:

    B)45*45mm modules&socket:


  • Previous:
  • Next:

  • 1.This hidden structure provides the user with a compact, clean and convenient connectivity solution;

    2.Made from die-casting aluminum alloy and painted ;

    3.Manually open with slower flip up from single side;

    4.With brush to protect cables from scratch;

    5.Bigger capacity:8 ways International 45*45mm modules.

    Available sockets or modules types:
