HTD-250-AV

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Features

    Outline drawing

    Installation

    Application

    Product Tags

    1) Working environment:

    1. The environment temperature:-5~/40
    2. The rated voltage100V~~250V
    3. Rated current10A13A16A20A

    2) Characteristic:

    1

    Model

    HTD-250-AV

    6

    HS Code

    8536690000

    2

    Brand Name

    Safewire or OEM brand

    7

    Market standard

    Customized

    3

    Type

    AV Floorbox

    8

    Place of origin

    Zhejiang ,  Wenzhou, China

    4

    Color

    Golden, silver, etc

    9

    Frequency

    50Hz~60Hz

    5

    Grounding

    Standard grounding

    10

    Current Type

    AC

    3) Technical parameters :

    Serial No. Parameter Description
    1 Panel Material Brass alloy/Stainless steel
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 250*250
    4 Cutout(mm) 233×233
    5 Capacity of modules 18 ways modules
    6 Mounting type Horizontal installation
    7 Bracket material Zinc Alloy & Alu Alloy
    8 Sink box Material Steel+Zinc plated
    9 Base box dimension(mm) 230*230*75
    10

    Available modules

    45*45/22.5*45(mm) or 23*36mm




  • Previous:
  • Next:

  • Features:

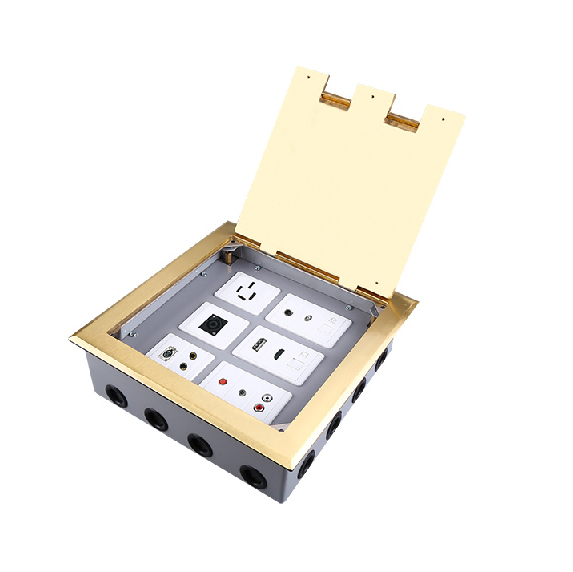

    1.Application: Stainless Open cover-plate,20 ways 128 type AV Multi-Media AV floor boxes with panel of 210*210 mm;

    2.Mounting type:Horizontal installation.

    3.Total 80mm height and with top plug clearance is over 48mm .

    4.Optional Cavity: with cavity depth 20mm.



    Available for F type 45*45mm type or D type23*26mm international sockets or modules types:



    HTD-250K/250AK Outline drawing:

    Installation instructions:

    1.Cut out 233*233(mm),Powering the slurry.
    2.Remove the pre-installed temporary lid,wiring and installing modules.
    3.Per-installthe cable pipe as per your request .
    4.Install cover lid and tighten with screws.
    5.Conceal the cut edge of carpet of flooring.

    Attentions:

    1.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).

    2.This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation.This product is not suitable for use in wet areas.

    3.All dimensions quotes are nominal only.Drawing images and specification are only for illustrative purposes and dimensions are subject to final confirmation by us.

    Safety Warning

    1.This is a class I product and must be earthed

    2.This product must be installed/wired by a qualified electrician

    3.For indoor use only.

    4.For concrete access floor.

    Application:
