Short Description:
| Serial No. | Parameter | Description |
|
1 |
Power supply side |
One/Two side |
|
2 |
Shape column |
square |
|
3 |
Panel Material |
Aluminum alloy |
|
4 |
Surface finish |
Painted/Brushed Oxygenated |
|
5 |
Height of product(mm) |
615（customizable） |
|
7 |
dimension (mm) |
62*126mm |
|
8 |
Capacity of modules |
45*45/45*22.5(mm) modules |
|
9 |
Configuration |

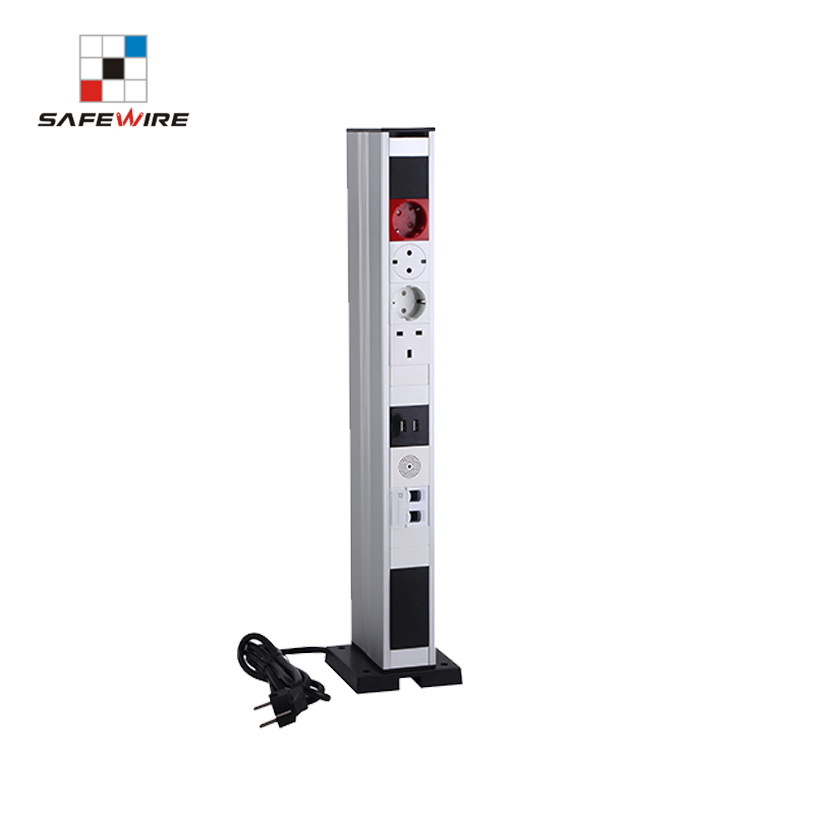

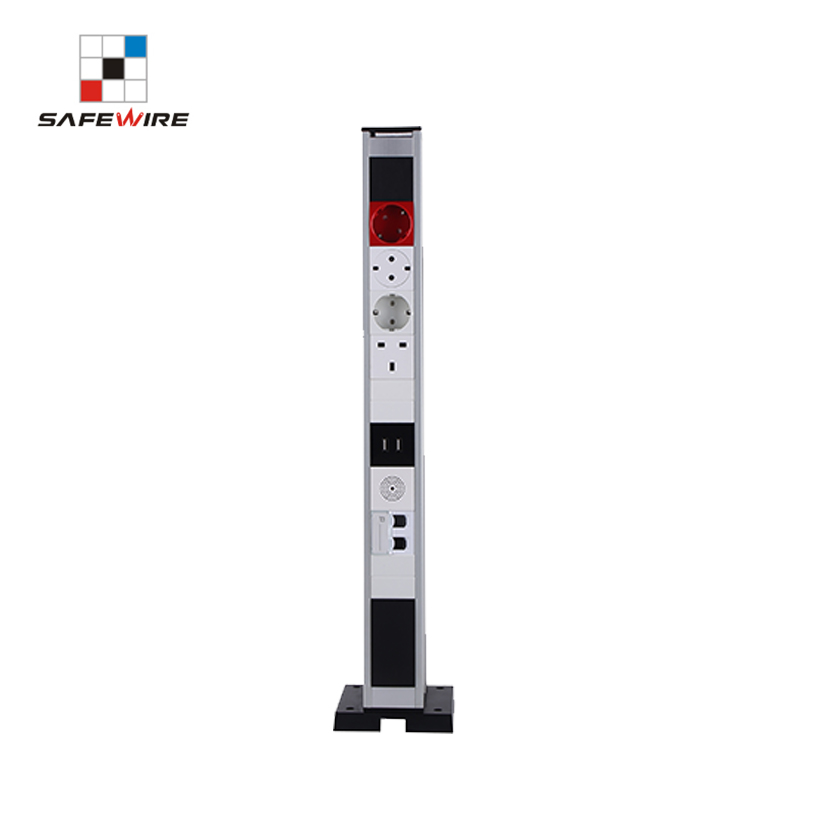

Power outlet+Data outlet or USB charging+HDMI+VGA+Audio socket : Customized as required |
- Configuration as per your request.
- Customization height as per your request.
- Aluminum profile,double power supply,easy install.
- Legrand international 45*45mm modules or 86 type single switch socket or 146 twins switch socket.

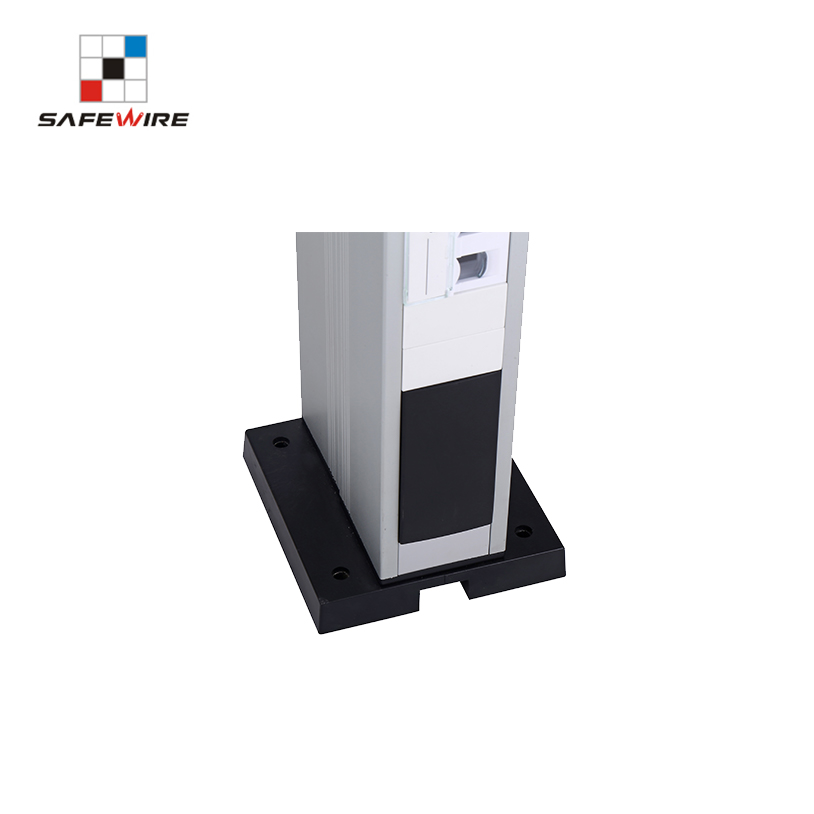

- Installation mobility: The columns are secured by pressure on the floor. They do not have to be bolted to the floor and it is therefore very easy to reconfigure the distribution of workplaces.
- The type 45 module does not require direct installation of the card frame.
- The top screw of the housing is fixed
- Black blank plates are used to isolate strong and weak power modules.
The enclosures of all maintenance boxes shall be fabricated from halogen-free, non-toxic, and environmentally sustainable materials. Their corrosion resistance shall be capable of withstanding exposure to solutions with an acid concentration of 10% or an alkali concentration of 10% and above. The material shall exhibit a temperature stability range of no less than -40°C to +90°C, and its flame resistance temperature in the hot filament test shall not be lower than +960°C. It shall possess properties such as full insulation, dust resistance, water resistance, corrosion resistance, impact resistance, UV resistance, heat resistance, flame retardancy, shock resistance, and high mechanical strength.
Sectional maintenance boxes shall be made of polycarbonate material, which is characterized by corrosion resistance, halogen-free composition, flame retardancy, and self-extinguishing capability. The impact resistance rating shall meet IK09, and the box body shall be of an integrated design. Sealing bolts shall be provided for cable entry into the maintenance boxes, and sufficient space for incoming cables shall be considered. Sockets shall have high impact resistance and corrosion resistance; industrial connectors shall have a protection rating of IP67. Sockets and circuit breakers shall be mounted on the surface of the box body for ease of operation, with specific configurations detailed in the system diagram of the sectional maintenance boxes. The overall protection rating of the maintenance boxes shall reach IP66.
