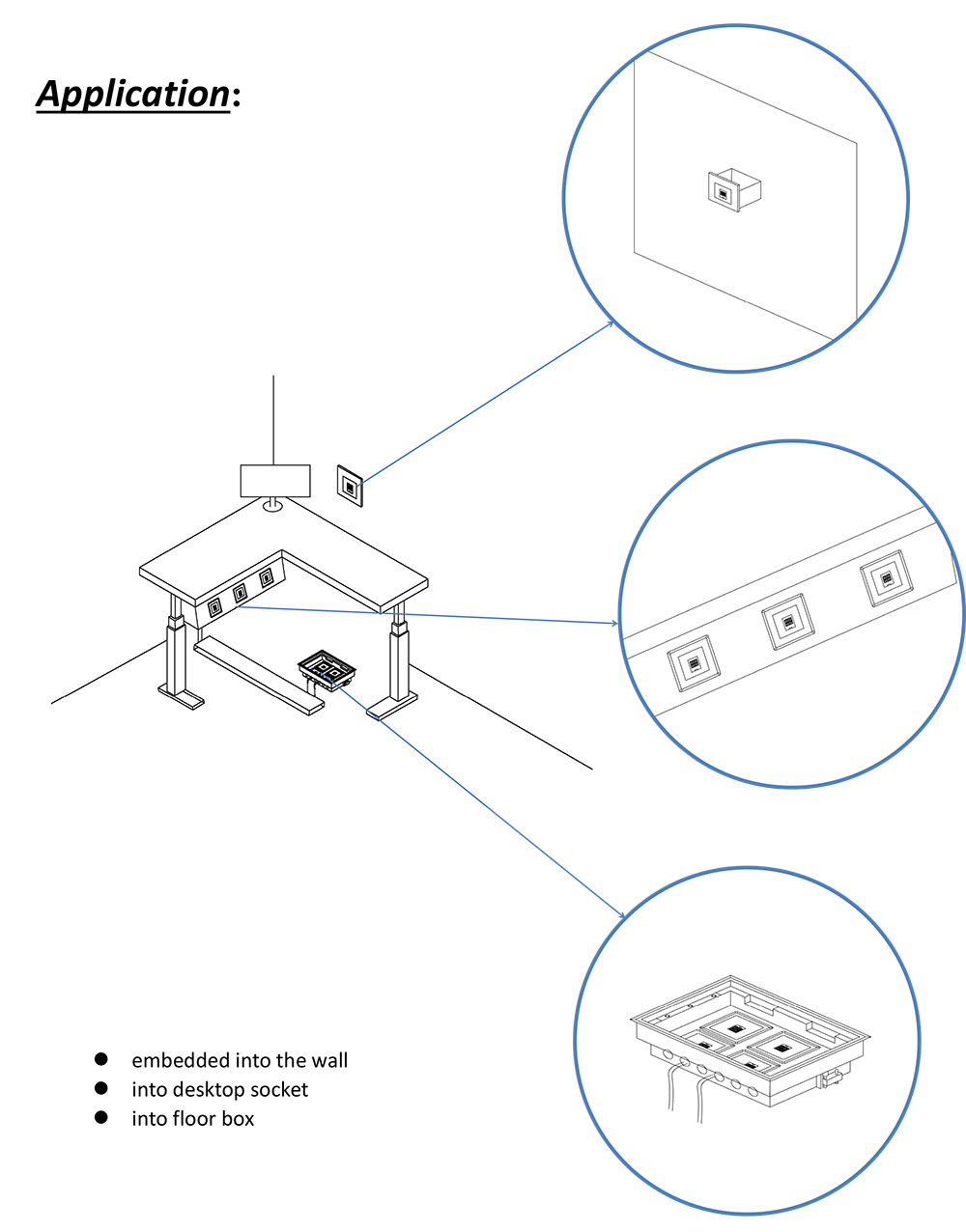

    Application

    Outline drawing

    Installation Process

    Product Tags

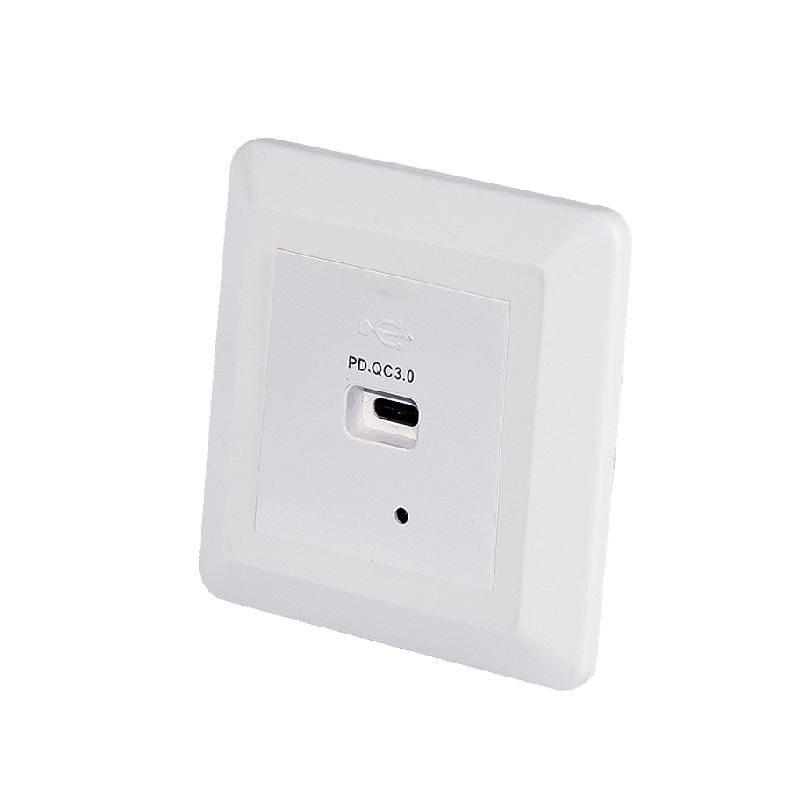

    USB Characteristic:

    Serial No. Parameter Description
    1 Panel Material PC 94-V0
    2 Inside material Tin phosphorous bronze
    3 USB DC output QC3.0  3A/5V,2A/9V & 1.5A/12V
    4 Output voltage tolerance ±5%
    5 Output Type C for IPAD
    6 Efficiency 78%
    7 No-load power consumption Max 0.2W
    8 Input voltage 100~240v/AC 50~60Hz
    9 Color White RAL9003 Black
    10 Size 86*86mm

    Environmental requirements

    Serial No. Parameter Description
    1 Operating temperature -10℃~+40℃;Operating
    2 humidity 20%~90% RH
    3 Storage temperature -20℃~+85℃;storage
    4 humidity 10%~95% RH
    5 Resistance to pressure ≥3Kv/AC 1min
    6 Isolation resistance 500v DC/100MΩ

















  • Previous:
  • Next:

    • Feature

    1).USB charger of QC3.0 3A/5V ,2A/9V,1.5A/12V;

    2). Protection type: Short time short-circuit protection;

    3).With identifying chip: can automatically recognize different mobiles and suit its request charging AMP to meet the charging speed;

    4) Product be certificated by CE,IEC60950 FOR LVD and IEC55024,IEC61000 for EMC;

    5). All materials be ROHS directive tested

    1

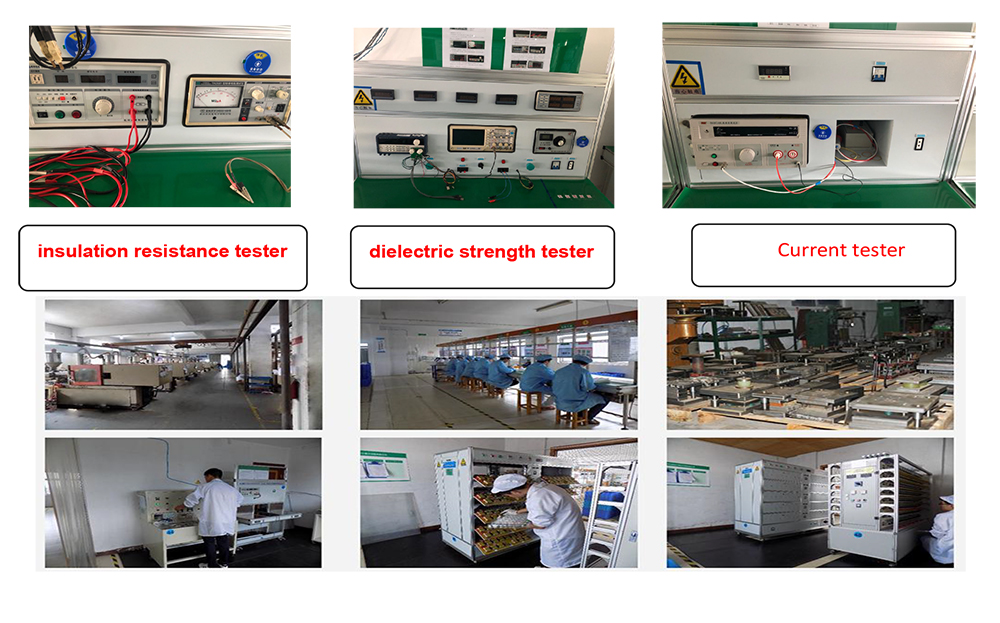

    Testing Item Testing Standard Testing Data
    Aging test USB charger for 2 hours with LED lights must always light 2 hours
      High and low pressure 90V-264V to normal operation 90V-264V normal
    Power test Rated output voltage range: no-load: 5V±5%, load:5V±5% No-load: 4.92-4.95V, load: 5.04-5.1
      Rated output/ currenturrent protection: Max. 1.37 times as rating current) QC3.0 3A;1.5A/12V
      Output ripple: load 4.2A, Vpp<200mV 86.9mV
    Short circuit protection: output positive and negative short for 2 minutes, after the break to work properly 2 minutes
    Pin output voltage: D-: 2.75VDC/D+:2VDC, subject to actual test value D-:2.63VDC/D+:2.68VDC
    Pressure test Under normal climatic conditions, the input and output terminals should withstand the corresponding voltage(USB-10, 101 series for the 1500V, the other is more than 3000V), Generally every test a minute without breakdown flashing phenomenon was qualified, and leakage≤5mA. 3000V0.68mA-0.69mA
    Insulation resistance test In the normal temperature environment, AC input plug and DC input plug between the input DC500V, 1 minute after the insulation resistance of 7 trillion or more ∞
    Grounding resistance In any case the resistance shall not exceed 100mΩ
    Temperature rise test At room temperature 30℃rated work, the charger rated for 2 h after the measurement of its shell surface temperature change <1℃/ h that the temperature is stable, this time measuring the surface temperature of its shell <50℃ Pass
    Limit load Test the product load current limit can run the load value pass

    3

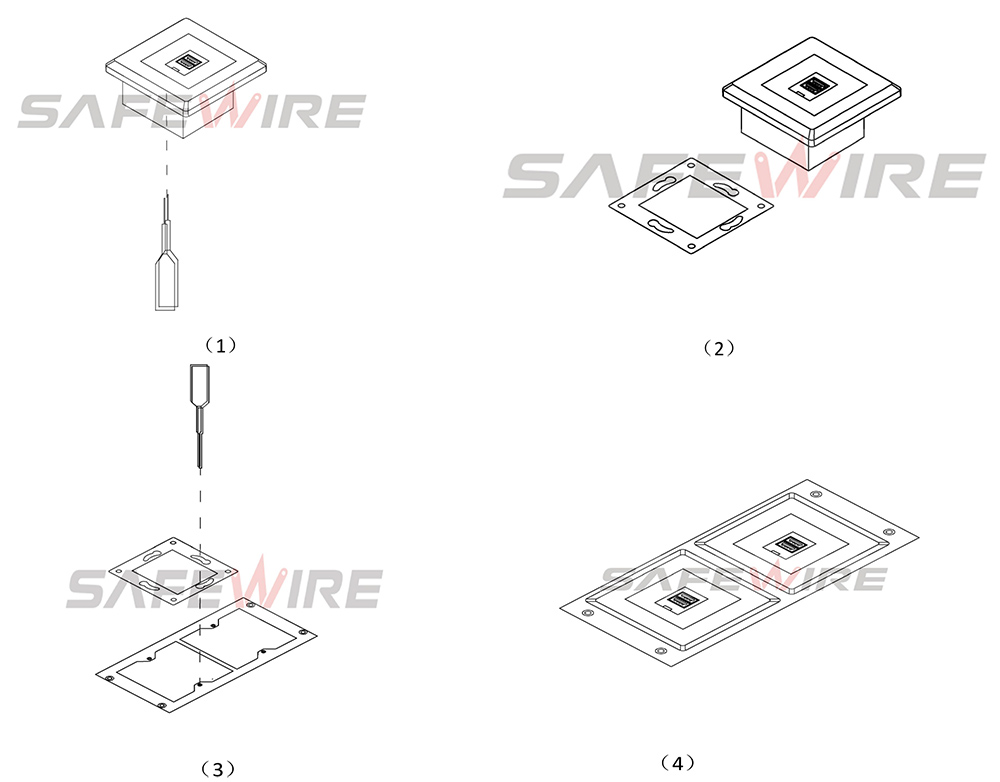

    1 .Remove the iron partition from under the panel

    2 .Just point the hole of iron plate and bridge/frame slot them together.

    3 .Screw and tighten them.

    4 .Clamp the plate into the iron plate.

    5

    Safety Warning:

    1.This is a class I product and must be earthed.

    2.For indoor use only.

    3.This product must be installed/wired by a qualified electrician.

    Attentions:

    1.Protect children from touch skirt of USB port.

    2.Ensure current and voltage as rating current/voltage .DO not overload

    3.Prevent from corrosive liquid, gas (strong acid, strong alkali, paint)and humidity.
