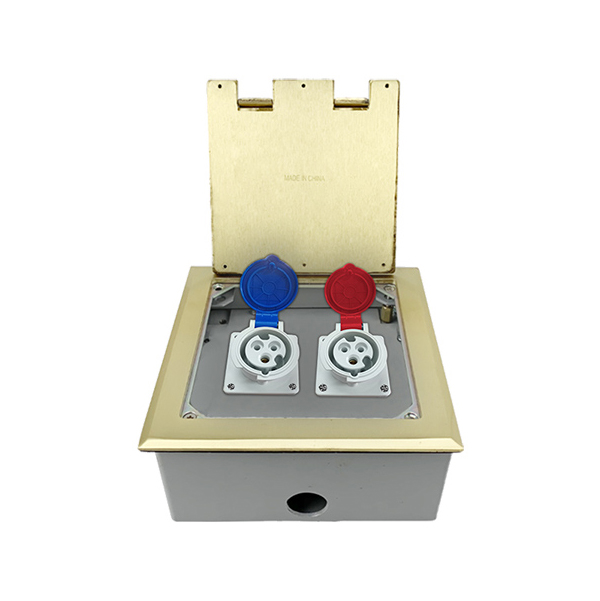

HTD-146K-I

Short Description:




  • Port: Wenjiang
  • Technical Parameters

    Features

    Installation

    Product Tags

    Technical parameters & characteristic :

    1) Working environment:

    1. The environment temperature:-5~/40
    2. The rated voltage100V~~250V
    3. Rated current10A13A16A20A

    2) Characteristic:

    1

    Model

    HTD-146K-I

    6

    HS Code

    8536690000

    2

    Brand Name

    Safewire or OEM brand

    7

    Market standard

    Customized

    3

    Type

    floor socket

    8

    Place of origin

    Zhejiang ,  Wenzhou, China

    4

    Color

    Golden, silver, etc

    9

    Frequency

    50Hz~60Hz

    5

    Grounding

    Standard grounding

    10

    Current Type

    AC

    3) Technical parameters :

    Serial No. Parameter Description
    1 Panel Material Brass alloy/Stainless steel
    2 Surface finish Wire drawing/Polishing/Spray painting
    3 Panel Dimension(mm) 146*146
    4 Cutout(mm) 138×138
    5 Capacity of modules 2 way Industrial socket(wall mounted socket)
    6 Mounting type Mounting ST optical fiber or SC optical fiber or Horizontal installation
    7 Bracket material Zinc Alloy & Alu Alloy
    8 Sink box Material Steel+Zinc plated
    9 Base box dimension(mm) 135*135*65
    10 Available modules Customized mounting holes suitable with industrial sockets

    CE certificate by TUV,Germany


  • Previous:
  • Next:

  • Features:

    1. Application: Recessed stage floor box provides versatile solution to accessing power, audio and visual equipment through floor .

    2.Lid degree against floor:90/180 degree.

    3.Hinged lid thickness over 4~4.5m , static pressure over 1000N .

    4.Cold-rolled Steel box thickness over 1.5~2.0mm with powder coated.

    5.Customized mounting holes are available to install industrial sockets.





    Installation instructions:
    1.Cut out 138*138(mm),Powering the slurry.
    2.Remove the pre-installed temporary lid,wiring and installing modules.
    3.Per-installthe cable pipe as per your request .
    4.Install cover lid and tighten with screws.
    5.Conceal the cut edge of carpet of flooring.

    Attentions:

    1.When installing and wiring,Product should avoid direct contact with corrosive liquid, gas (strong acid, strong alkali, paint).

    2.This product is suitable for dry surface treatment, avoid water flush and immersion, and ensure its insulation.This product is not suitable for use in wet areas.

    3.All dimensions quotes are nominal only.Drawing images and specification are only for illustrative purposes and dimensions are subject to final confirmation by us.

    Safety Warning

    1.This is a class I product and must be earthed

    2.This product must be installed/wired by a qualified electrician

    3.For indoor use only.
