Safewire FZ507

Short Description:


  • Port: Wenjiang
  • Product Detail

    Product Tags

    Technical parameters & characteristic :

    1) Working environment:

    1. The environment temperature:-5℃~/40℃
    2. The rated voltage:100V~~250V
    3. Rated current:10A、13A、16A、20A

    2) Characteristic:

    1

    Model

    FZ-507

    6

    HS Code

    8536690000

    2

    Brand Name

    Safewire or OEM brand

    7

    Market standard

    Customized

    3

    Type

    Desktop socket

    8

    Place of origin

    Zhejiang ,  Wenzhou, China

    4

    Color

    Silver/black/white

    9

    Frequency

    50Hz~60Hz

    5

    Grounding

    Standard grounding

    10

    Current Type

    AC

    3) Technical parameters :

    Serial No. Parameter Description
    1 Panel Material

    Aluminum alloy/steel

    2 Surface finish

    Painted/Brushed Oxygenated

    3 Power bar Dimension(mm)

    233*62

    4 Base box (mm)

    223*52*45

    5 Capacity of modules /Interface size

    Max.8 ways 45*45mm modules

    6 Configuration Power outlet+Data outlet or USB charging+HDMI+VGA+Audio socket : Customized as required
    7 Cable length

    1.5m, 2m,3m or required length

    8

    Available modules

    45*45mm Type series



    Application:

    FZ-501-1

    Office and education

    Industry and Engineering

    Presentation and retail;

    Orientation and safety;

    Transit areas and parking;

    Hotels, hospitality and wellness;

    Health, sport and leisure;

    Art and culture;

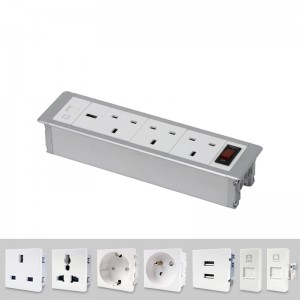

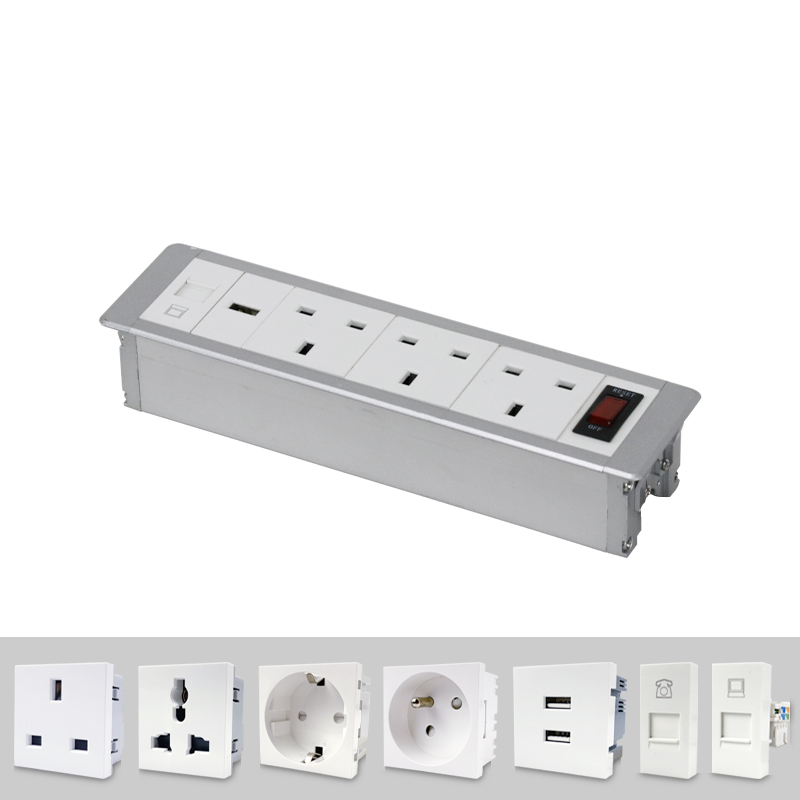

      FZ-507-2 FZ-507-3

    Product Show:

    FZ-507-4 FZ-507-5

    Features:

    1) .Double function switch combine indicator and control;

    2) Wall mounting facility is optional;

    3).Support wide range of power and data accessories available to meet all requirements;

    4).The length of product & cord cable are customized by requirement.

    vailable for 45*45mm type international sockets or modules types:

    FZ-507-6

    FZ-507 Outline drawing:

     FZ-507-7

    Package:Pcs inner box into a master carton.Poly bag with box packing.

    FZ-507-8

    Installation Process

    1. First, make holes in the table according to the appropriate size
    2. Put the product into the cutting hole.

      FZ-507-1

      Attentions:

    1.Use only in normal temperature.Do not expose to conditions that harm to the product’s safety,such as humidity,dusty and corrosives.

    2.Properly connecting and installing according to the rated voltage ,frequency,rated current and function identification of the product

    3. All dimension quoted are nominal only. Drawings , images and text are for illustrative perposes only and product details and dimension are subject to change without notice.

    Safety Warning:

    1)This is a class I product and must be earthed.

    2)This product must be installed/wired by a qualified electrician.

    3)before installation/maintnance ,ensure the mains supply is switched off and the circuit fuses are removed or circuit breakers switch off.

    4)For indoor use only.
